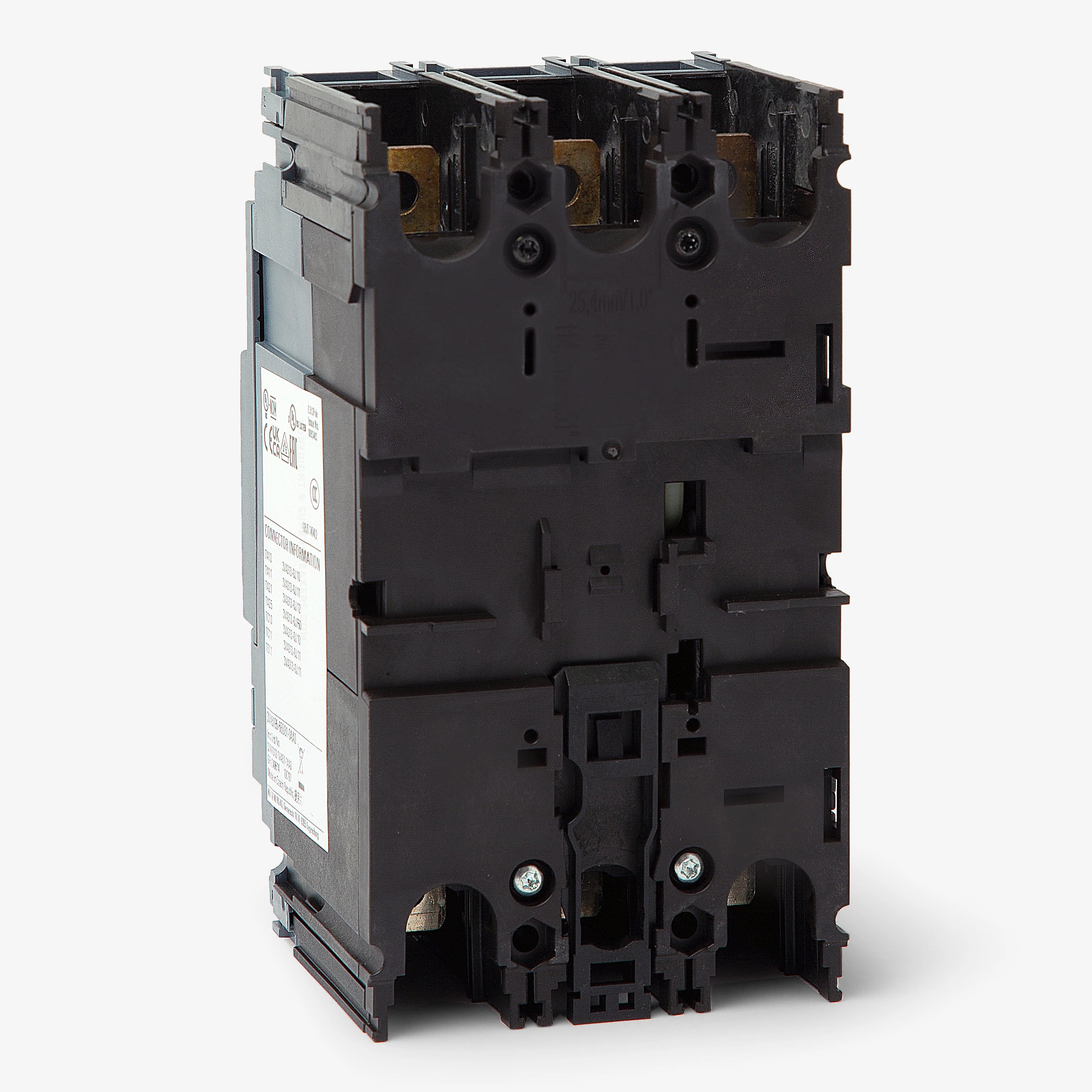

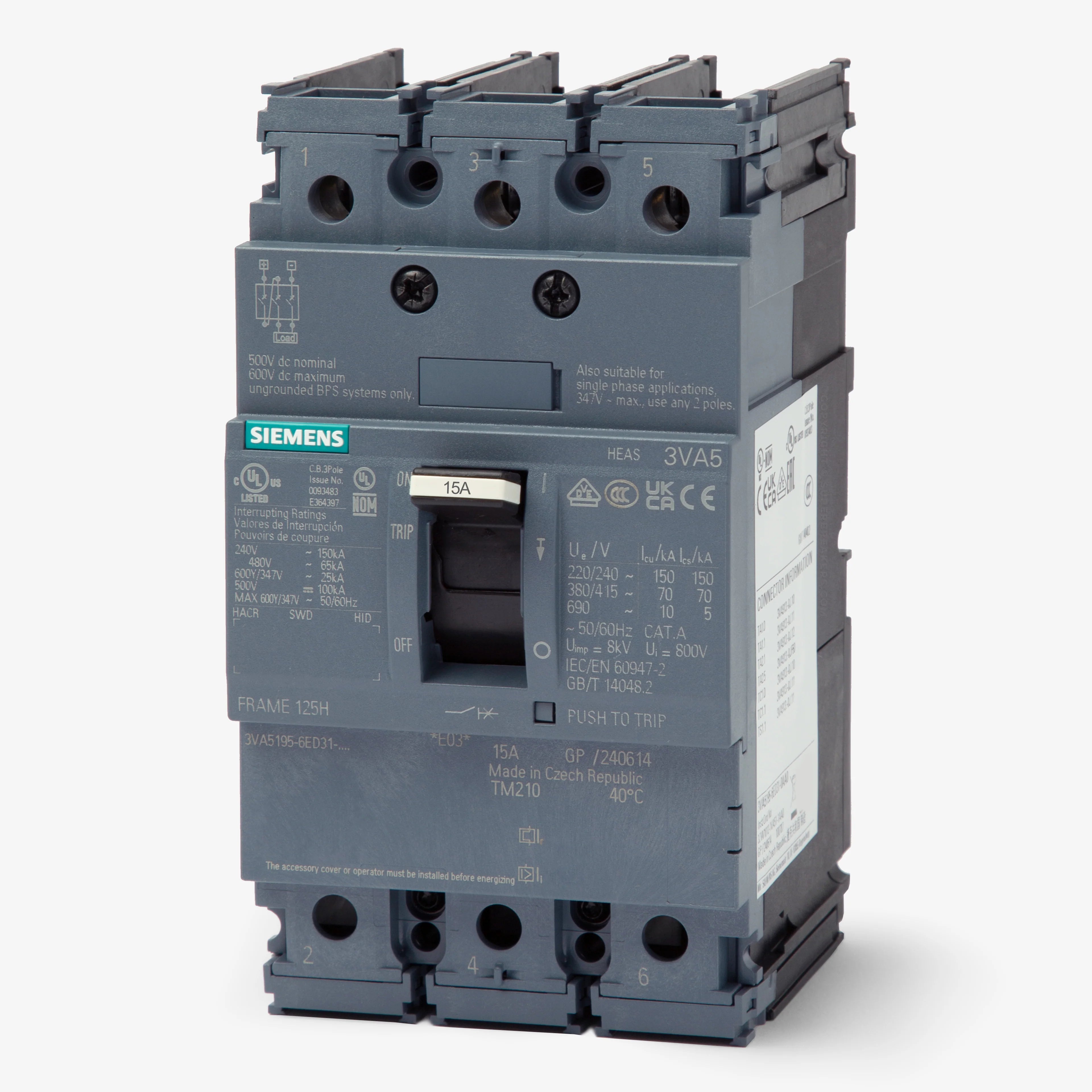

Siemens 3VA5195-4ED31-0AA0 15 Amp 3-Pole Molded Case Circuit Breaker – Panel Mount – 240/480/600Y-347VAC & 500VDC

The Siemens 3VA5195-4ED31-0AA0 is a compact molded case circuit breaker (MCCB) engineered for commercial and industrial power distribution applications. Designed as a direct replacement for the legacy ED43B015 breaker, this 3-pole, 15A unit features a TM210 thermal-magnetic trip unit with fixed thermal and magnetic settings for dependable long-time and instantaneous (LI) protection. The breaker is designed for installation in Siemens P2 and P3 panelboards, switchboards, and electrical enclosures. With current-limiting technology, reverse-feed capability, a trip-free operating mechanism, and interrupting ratings up to 65kA at 240VAC, it provides reliable protection against overloads and short circuits in demanding electrical systems.

Voltage and Rating

• Current Rating: 15 Amps
• Voltage Rating: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 500VDC
• Phase: 3-Phase
• Frequency: 50/60 Hz
• AIC Rating:
  • 65kA @ 240VAC
  • 25kA @ 480Y/277VAC
  • 25kA @ 480VAC
  • 14kA @ 600Y/347VAC
  • 50kA @ 500VDC

Key Specifications

• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Series: 3VA5
• Part Number: 3VA5195-4ED31-0AA0
• Number of Poles: 3-Pole
• Mounting Style: Panel Mount

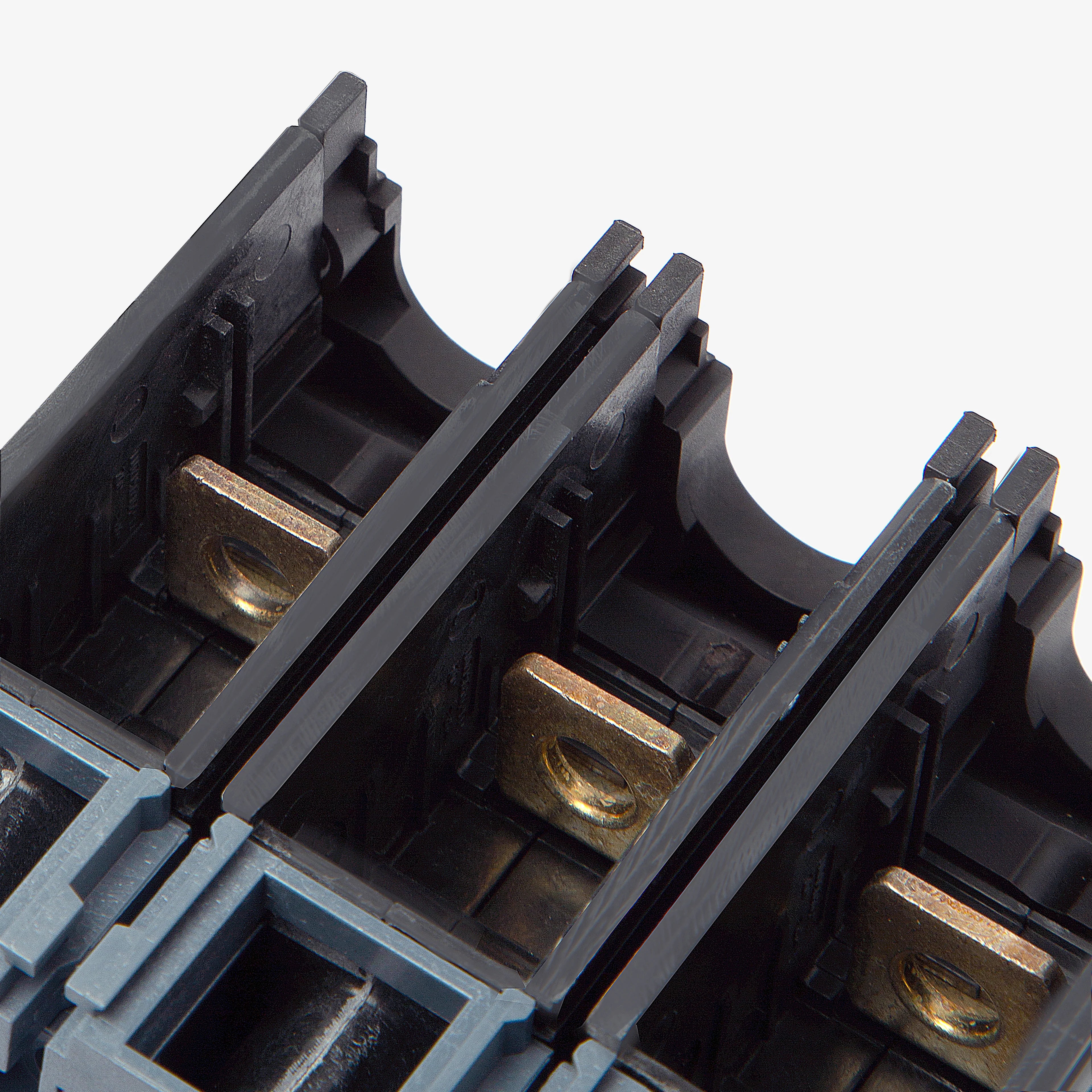

• Terminal Type: Lugs
• Trip Technology: Thermal Magnetic
• Trip Unit: TM210
• Trip Function Code: LI
• Trip Function: Long-Time and Instantaneous Protection
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• For Use With: Siemens P2 Panelboards, Siemens P3 Panelboards, Switchboards, and Enclosures

Technical Specifications

• Construction Features: HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism, HID Rated
• Temperature Rating: -25°C to 70°C
• Accessories Included: Nut Keeper Only
• Available Options: Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Handle Ties, Lockout Attachment, DIN Rail Adapter, Busbar System

Standards and Approvals

• Standards: IEC 60947-2, UL 489, CSA C22.2 No. 5
• Approvals: ABS, CE, CSA, EAC, IEC, UL, VDE

Product Data

• Manufacturer: Siemens
• Series: 3VA5
• Part Number: 3VA5195-4ED31-0AA0

Applications

• Commercial Power Distribution Systems
• Industrial Electrical Installations
• Siemens P2 and P3 Panelboards
• Switchboards and Electrical Enclosures
• Feeder and Branch Circuit Protection
• HVAC Equipment Protection (HACR Applications)
• HID Lighting Systems
• Current-Limiting Protection Applications
• Replacement of Siemens ED43B015 Circuit Breakers
