Siemens / ITE

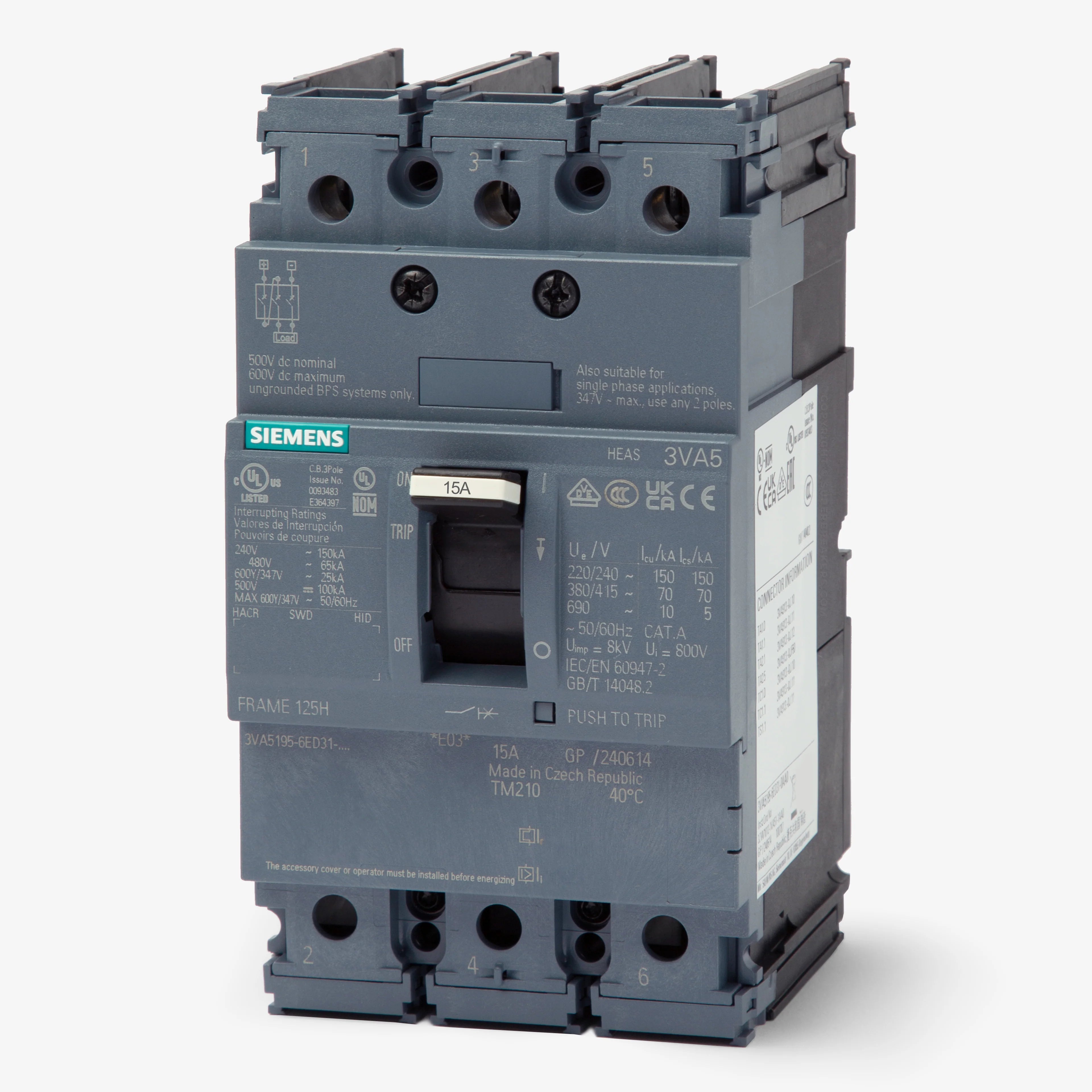

Siemens 3VA5195-5EC31-0AA0 15 Amp 3-Pole Molded Case Circuit Breaker – Panel Mount – 240/480/600Y-347VAC & 500VDC

In stock
SKU: 3VA5195-5EC31-0AA0 GTIN/UPC: 804766300271
$516.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5195-5EC31-0AA0 is a molded case circuit breaker (MCCB) engineered for commercial and industrial power distribution applications. As part of the SENTRON 3VA5 series, this 3-pole, 15A breaker serves as an M-Class upgrade for legacy ED63B015 circuit breakers. It features a TM230 thermal-magnetic trip unit that provides dependable long-time and instantaneous (LI) protection with fixed thermal and adjustable magnetic settings. Designed for installation in Siemens P1, P2, and P3 panelboards, SB switchboards, and motor control centers, this breaker offers reverse-feed capability, current-limiting performance, and trip-free operation. With interrupting capacities up to 35kA at 480VAC and 85kA at 240VAC, it delivers reliable protection for demanding electrical systems.

Voltage and Rating

  • Current Rating: 15 Amps
  • Voltage Rating: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 500VDC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 85kA @ 240VAC
    • 35kA @ 480Y/277VAC
    • 35kA @ 480VAC
    • 18kA @ 600Y/347VAC
    • 85kA @ 500VDC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: SENTRON 3VA5
  • Part Number: 3VA5195-5EC31-0AA0
  • Number of Poles: 3-Pole
  • Mounting Style: Panel Mount
  • Terminal Type: Lugs
  • Trip Technology: Thermal Magnetic
  • Trip Unit: TM230
  • Trip Function Code: LI
  • Trip Function: Long-Time and Instantaneous Protection
  • Trip Adjustability: Fixed Thermal, Adjustable Magnetic
  • For Use With: Siemens P1, P2, P3 Panelboards, SB Switchboards, and Motor Control Centers

Technical Specifications

  • Construction Features: HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism
  • Temperature Rating: -25°C to 70°C
  • Accessories Included: None (Without Connection)
  • Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment

Standards and Approvals

  • Standards: IEC 60947-2, UL 489, HACR
  • Approvals: ABS, CE, CSA, EAC, IEC, UL, VDE

Product Data

  • Manufacturer: Siemens
  • Series: 3VA5
  • Part Number: 3VA5195-5EC31-0AA0

Applications

  • Commercial Power Distribution Systems
  • Industrial Electrical Installations
  • Siemens P1, P2, and P3 Panelboards
  • SB Switchboards
  • Motor Control Centers
  • Feeder and Branch Circuit Protection
  • HVAC Equipment Protection (HACR Applications)
  • Current-Limiting Protection Systems
  • Replacement of Siemens ED63B015 Circuit Breakers
  • Reverse-Feed Power Distribution Applications
  • Type Circuit Breakers
  • Vendor Siemens / ITE
  • Brand Siemens
