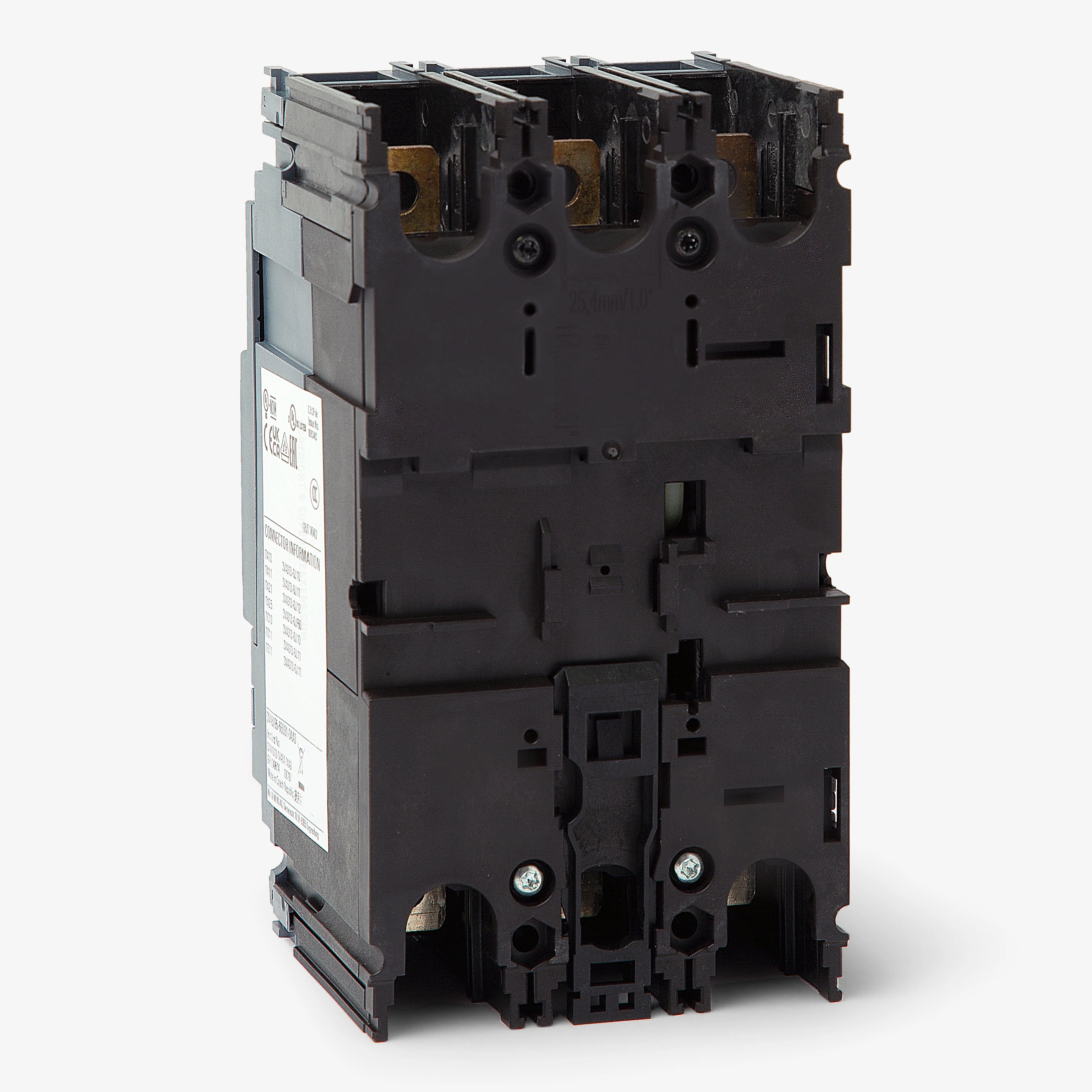

Siemens 3VA5210-5EC31-0AA0 100 Amp 3-Pole Molded Case Circuit Breaker – Panel Mount – 240/480/600VAC & 750VDC

In stock
SKU: 3VA5210-5EC31-0AA0 GTIN/UPC: 804766308765
$965.25
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5210-5EC31-0AA0 is a high-performance molded case circuit breaker (MCCB) designed for commercial and industrial power distribution applications. Serving as a modern replacement for legacy FXD63B100 breakers, this 3-pole, 100A unit features a TM230 thermal-magnetic trip unit that provides dependable long-time and instantaneous (LI) protection. The breaker combines fixed thermal overload protection with adjustable magnetic short-circuit protection for enhanced system coordination. Designed for installation in Siemens P2 and P3 panelboards and switchboards, this Class M breaker delivers excellent current-limiting performance with interrupting ratings up to 35kA at 480VAC. Its HACR rating and robust construction make it ideal for demanding electrical distribution systems.

Voltage and Rating

  • Current Rating: 100 Amps
  • Voltage Rating: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 750VDC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 85kA @ 240VAC
    • 35kA @ 480Y/277VAC
    • 35kA @ 480VAC
    • 18kA @ 600Y/347VAC
    • 18kA @ 600VAC
    • 50kA @ 750VDC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: SENTRON 3VA5
  • Part Number: 3VA5210-5EC31-0AA0
  • Number of Poles: 3-Pole
  • Mounting Style: Panel Mount

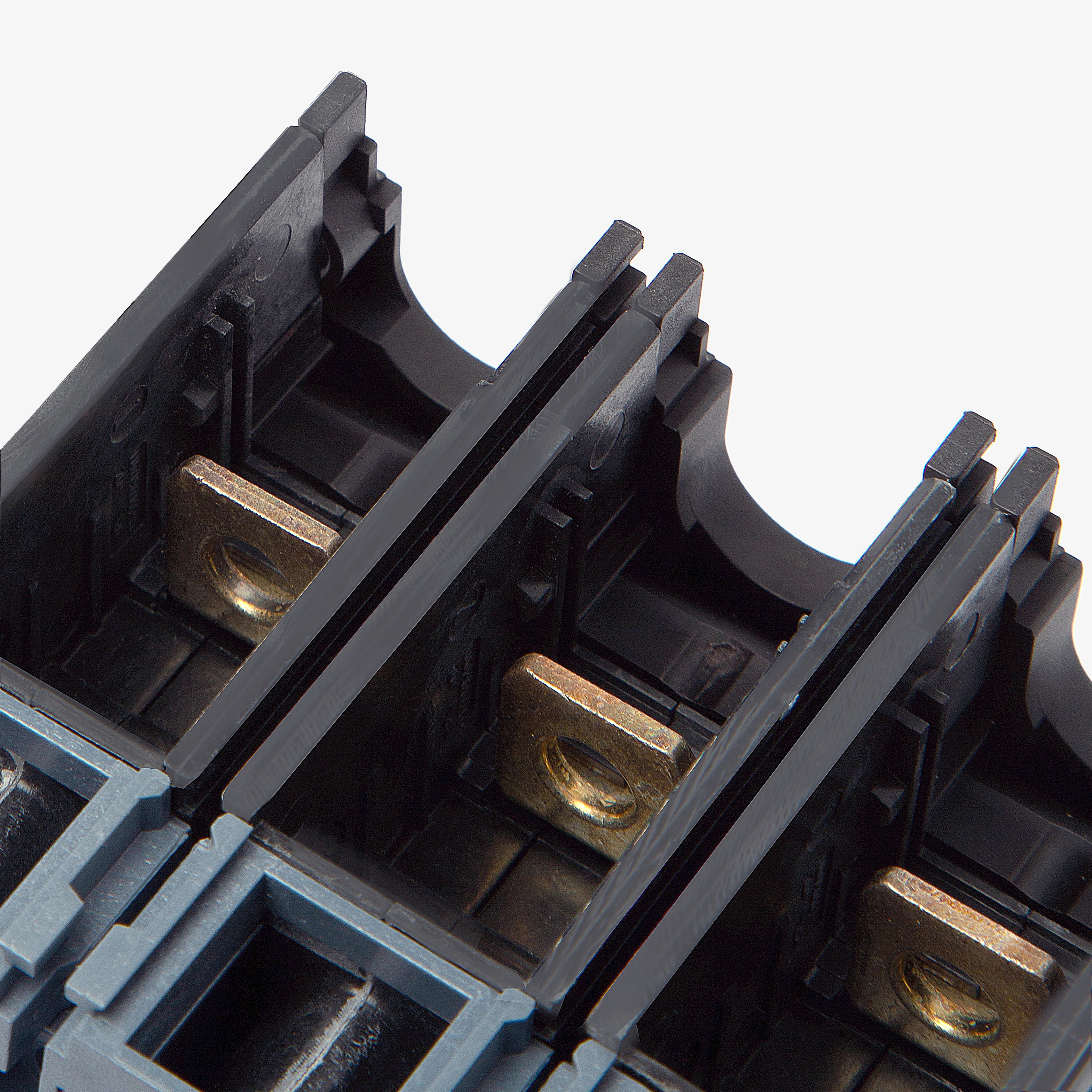

  • Terminal Type: Lugs
  • Trip Technology: Thermal Magnetic
  • Trip Unit: TM230
  • Trip Function Code: LI
  • Trip Function: Long-Time and Instantaneous Protection
  • Trip Adjustability: Fixed Thermal, Adjustable Magnetic
  • For Use With: Siemens P2 and P3 Panelboards, Switchboards

Technical Specifications

  • Construction Features: HACR Rated, Non-Interchangeable Trip
  • Breaking Capacity Class: Class M
  • Temperature Rating: -25°C to 70°C
  • Accessories Included: Nut Keeper Plate
  • Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Handle Lock, Padlock Attachment, Busbar System

Standards and Approvals

  • Standards: IEC 60947-2, UL 489, HACR
  • Approvals: ABS, CE, CSA, cULus, DNV, EAC, GL, Lloyd's Register, RCM, UL, VDE

Product Data

  • Manufacturer: Siemens
  • Series: 3VA5
  • Part Number: 3VA5210-5EC31-0AA0

Applications

  • Commercial Power Distribution Systems
  • Industrial Electrical Installations
  • Siemens P2 and P3 Panelboards
  • Switchboards
  • Feeder Circuit Protection
  • Branch Circuit Protection
  • HVAC Equipment Protection (HACR Applications)
  • Current-Limiting Protection Systems
  • High Fault Current Applications
  • Replacement of Siemens FXD63B100 Circuit Breakers
  • Type Circuit Breakers
