Siemens / ITE

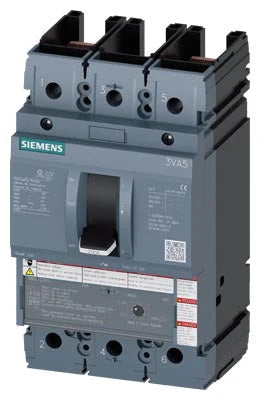

Siemens 3VA5210-5ED31-0AA0 100 Amp 3-Pole Molded Case Circuit Breaker – Panel Mount – 600V AC

In stock
SKU: 3VA5210-5ED31-0AA0 GTIN/UPC: 804766308741
$1,092.15
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5210-5ED31-0AA0 is a rugged molded case circuit breaker (MCCB) from the SENTRON 3VA series, designed for commercial and industrial power distribution systems. Built on the 3VA52 frame, this 100A, 3-pole breaker features a TM210 thermal-magnetic trip unit that provides dependable long-time and instantaneous protection with fixed overload and short-circuit settings. With Medium (Class M) breaking capacity, the breaker delivers interrupting ratings of 35kA at 480VAC and 18kA at 600VAC, ensuring reliable fault protection in demanding electrical applications. Supplied without lugs, it is well suited for panelboards, switchboards, motor control centers, and feeder circuit protection installations.

Voltage and Rating

  • Current Rating: 100 Amps
  • Voltage Rating: 600 Volts AC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 100kA @ 480VAC
    • 35kA @ 480VAC (Class M)
    • 18kA @ 600VAC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: SENTRON Series
  • Family: 3VA
  • Part Number: 3VA5210-5ED31-0AA0
  • Frame Size: 3VA52 Frame
  • Number of Poles: 3-Pole
  • Mounting Style: Panel Mount
  • Trip Technology: Thermal Magnetic
  • Trip Unit: TM210
  • Trip Function: Long-Time and Instantaneous Protection (LI)
  • Trip Adjustability: Fixed Ir, Fixed Ii
  • Protection Type: Thermal Magnetic
  • Connection Configuration: Without Lugs

Technical Specifications

  • Breaking Capacity Class: Medium (Class M)
  • Overload Protection: Fixed Ir
  • Short-Circuit Protection: Fixed Ii
  • Construction: Compact Molded Case Design
  • Application: Commercial and Industrial Power Distribution

Standards and Approvals

  • Certification: CSA Approved

Product Data

  • Manufacturer: Siemens
  • Series: SENTRON
  • Family: 3VA
  • Part Number: 3VA5210-5ED31-0AA0

Dimensions and Weight

  • Width: 4.1 in
  • Height: 7.3 in
  • Depth: 4.2 in
  • Weight: 4.475 lbs

Applications

  • Commercial Power Distribution Systems
  • Industrial Electrical Installations
  • Panelboards and Switchboards
  • Motor Control Centers
  • Feeder Circuit Protection
  • Branch Circuit Protection
  • Equipment and Machinery Protection
  • Low-Voltage Distribution Networks
  • Current-Limiting Protection Systems
  • High Fault Current Applications
  • Type Circuit Breakers
