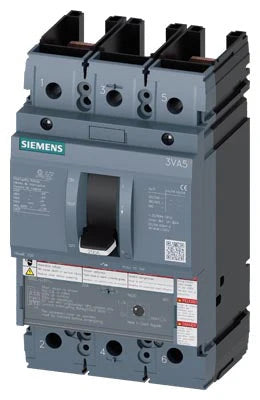

Siemens 3VA5217-5ED31-0AA0 175 Amp 3-Pole Molded Case Circuit Breaker – Feed-Thru Mount – 600V AC

In stock
SKU: 3VA5217-5ED31-0AA0 GTIN/UPC: 804766308420
$1,189.35
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5217-5ED31-0AA0 is a molded case circuit breaker (MCCB) from the SENTRON 3VA5 series, designed for dependable protection in commercial and industrial electrical distribution systems. Built on the 3VA52 frame, this 175A, 3-pole breaker provides reliable long-time and instantaneous (LI) protection using a TM210 thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. With Medium (Class M) breaking capacity, it delivers interrupting performance up to 35kA at 480VAC and 18kA at 600VAC. The breaker uses a feed-thru connection design and is supplied without lugs, making it suitable for panelboards, switchboards, and feeder applications requiring consistent and cost-effective circuit protection.

Voltage and Rating

  • Current Rating: 175 Amps
  • Voltage Rating: 600 Volts AC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 35kA @ 480VAC (Class M)
    • 18kA @ 600VAC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: SENTRON 3VA5
  • Family: 3VA
  • Part Number: 3VA5217-5ED31-0AA0
  • Frame Size: 3VA52 Frame
  • Number of Poles: 3-Pole
  • Connection Type: Feed-Thru
  • Trip Technology: Thermal Magnetic
  • Trip Unit: TM210
  • Trip Function: Long-Time and Instantaneous Protection (LI)
  • Trip Adjustability: Fixed Ir, Fixed Ii
  • Protection Type: Thermal Magnetic
  • Connection Configuration: Without Lugs

Technical Specifications

  • Breaking Capacity Class: Medium (Class M)
  • Construction: Compact Molded Case Design
  • Application: Commercial and Industrial Power Distribution

Standards and Approvals

  • Certification: CSA Approved

Product Data

  • Manufacturer: Siemens
  • Series: SENTRON 3VA5
  • Part Number: 3VA5217-5ED31-0AA0

Dimensions and Weight

  • Height: 4.1 in
  • Width: 7.3 in
  • Depth: 4.2 in
  • Weight: 4.453 lb

Applications

  • Commercial Power Distribution Systems
  • Industrial Electrical Installations
  • Panelboards and Switchboards
  • Motor Control Centers
  • Feeder Circuit Protection
  • Branch Circuit Protection
  • Equipment and Machinery Protection
  • Low-Voltage Distribution Networks
  • High Fault Current Applications
  • Current-Limiting Protection Systems
  • Type Circuit Breakers
