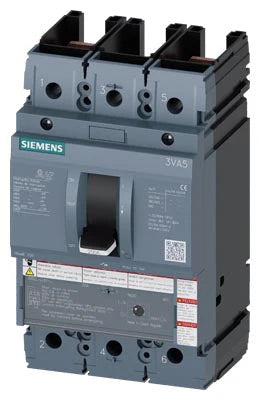

Siemens 3VA5220-5EC31-0AA0 200 Amp 3-Pole Molded Case Circuit Breaker – Panel Mount – 240/480/600VAC & DC Rated

In stock
SKU: 3VA5220-5EC31-0AA0 GTIN/UPC: 804766308369
$1,287.78
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5220-5EC31-0AA0 is a high-performance molded case circuit breaker (MCCB) from the SENTRON 3VA5 series, engineered for reliable protection in commercial and industrial power distribution systems. Built on the robust 3VA52 frame, this 200A, 3-pole breaker provides dependable long-time and instantaneous (LI) protection using a TM230 thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings. With Medium (Class M) breaking capacity, it delivers interrupting performance up to 35kA at 480VAC and extended protection capability across AC and DC systems up to 750VDC. Designed for Siemens P1, P2, and P3 panelboards and switchboards, it serves as a direct replacement for legacy FD63B200 breakers in upgraded electrical infrastructure.

Voltage and Rating

  • Current Rating: 200 Amps
  • Voltage Rating: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 85kA @ 240VAC
    • 35kA @ 480Y/277VAC
    • 35kA @ 480VAC
    • 18kA @ 600Y/347VAC
    • 18kA @ 600VAC
    • 50kA @ 250VDC
    • 50kA @ 500VDC
    • 50kA @ 750VDC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: SENTRON 3VA5
  • Family: 3VA
  • Part Number: 3VA5220-5EC31-0AA0
  • Frame Size: 3VA52 Frame
  • Number of Poles: 3-Pole
  • Mounting Style: Panel Mount
  • Terminal Type: Lugs
  • Trip Technology: Thermal Magnetic
  • Trip Unit: TM230
  • Trip Function Code: LI
  • Trip Function: Long-Time and Instantaneous Protection
  • Trip Adjustability: Fixed Thermal, Adjustable Magnetic
  • Protection Type: Thermal Magnetic
  • Connection Configuration: Without Lugs (as specified for standard configuration)

Technical Specifications

  • Breaking Capacity Class: Medium (Class M)
  • Application: Commercial and Industrial Power Distribution
  • Compatibility: Siemens P1, P2, P3 Panelboards, Switchboards
  • Construction Features: HACR Rated, Reverse Feed, Non-Interchangeable Trip

Standards and Approvals

  • Standards: IEC 60947-2, UL 489, CSA C22.2 No. 5
  • Approvals: CE, CSA, EAC, UL, VDE

Product Data

  • Manufacturer: Siemens
  • Series: SENTRON 3VA5
  • Part Number: 3VA5220-5EC31-0AA0

Applications

  • Industrial Power Distribution Systems
  • Commercial Electrical Installations
  • Panelboards and Switchboards
  • Motor Control Centers
  • Feeder Circuit Protection
  • Branch Circuit Protection
  • Heavy Electrical Load Distribution
  • High Fault Current Applications
  • Current-Limiting Protection Systems
  • Critical Infrastructure Electrical Networks
  • Type Circuit Breakers
