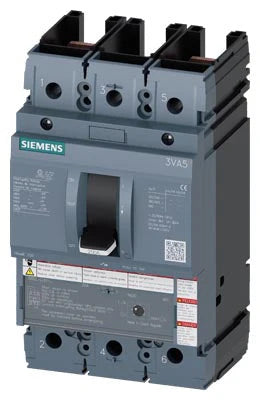

Siemens 3VA5225-0BB31-0AA0 250 Amp 3-Pole Molded Case Circuit Breaker – Feed-Thru – 600VAC Rated

In stock
SKU: 3VA5225-0BB31-0AA0 GTIN/UPC: 804766318498
$1,291.59
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5225-0BB31-0AA0 is a molded case switch from the SENTRON 3VA5 series, designed for commercial and industrial power distribution systems where reliable switching and protection are required. Built on the 3VA52 frame, this 250A, 3-pole device provides self-protecting instantaneous trip functionality for fast response under fault conditions.

This unit is intended for use in Siemens 3VA panelboards and switchboards, offering robust performance and dependable operation in high-energy electrical systems. With a 65kA interrupting rating at 480VAC, it ensures strong fault-handling capability. The device is supplied without lugs to allow installation flexibility depending on system requirements.

Voltage and Rating

  • Current Rating: 250 Amps
  • Voltage Rating: 240VAC, 480VAC, 600VAC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating: 65kA @ 480VAC

Key Specifications

  • Device Type: Molded Case Switch (Non-Automatic MCCB variant)
  • Series: SENTRON 3VA5
  • Family: 3VA
  • Part Number: 3VA5225-0BB31-0AA0
  • Frame Size: 3VA52 Frame
  • Number of Poles: 3-Pole
  • Mounting Style: Panel Mount / Feed-Thru
  • Terminal Type: Without lugs
  • Protection Type: Non-Automatic with instantaneous self-protection
  • Trip Function: Instantaneous only (self-protecting)

Technical Specifications

  • Breaking Capacity Class: Standard industrial duty
  • Application: Industrial and Commercial Power Distribution
  • Compatibility: Siemens 3VA panelboards and switchboards
  • Construction Features: Current limiting, reverse feed capable

Standards and Approvals

  • Standards: IEC 60947-2, UL 489, CSA C22.2 No. 5
  • Approvals: CSA and other regional certifications depending on configuration

Product Data

  • Manufacturer: Siemens
  • Series: SENTRON 3VA5
  • Part Number: 3VA5225-0BB31-0AA0

Applications

  • Power distribution switching systems
  • Industrial electrical isolation and protection
  • Commercial panelboards and switchboards
  • Motor control center feeder isolation
  • System disconnect and protection applications
  • Heavy-duty electrical infrastructure systems
  • Type Circuit Breakers
  • Vendor Siemens / ITE
  • Brand Siemens
