Siemens 3VA5330-5EF31-0AA0 300 Amp 3-Pole Molded Case Circuit Breaker – Panel Mount – 240/480/600VAC & DC Rated

In stock
SKU: 3VA5330-5EF31-0AA0 GTIN/UPC: 804766793301
$1,939.29
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5330-5EF31-0AA0 is a heavy-duty molded case circuit breaker (MCCB) from the SENTRON 3VA53 frame family, designed for commercial and industrial power distribution systems. Built on the robust 3VA53 frame, this 300A, 3-pole breaker provides reliable long-time and instantaneous (LI) protection using a TM240 thermal-magnetic trip unit with adjustable thermal and adjustable magnetic settings. It delivers dependable fault interruption performance for high-energy electrical systems and is suitable for feeder and distribution applications in industrial installations.

This breaker is designed for Siemens 3VA panelboards and switchboards and can be installed in Siemens P3, P4, and P5 systems. With appropriate mounting hardware, it serves as a replacement for legacy JD63B300 breakers, making it suitable for retrofit and upgrade applications in existing infrastructure.

Voltage and Rating

  • Current Rating: 300 Amps
  • Voltage Rating: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 500VDC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 85kA @ 240VAC
    • 35kA @ 480Y/277VAC
    • 35kA @ 480VAC
    • 18kA @ 600Y/347VAC
    • 18kA @ 600VAC
    • 50kA @ 500VDC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: SENTRON 3VA5
  • Family: 3VA
  • Part Number: 3VA5330-5EF31-0AA0
  • Frame Size: 3VA53 Frame
  • Number of Poles: 3-Pole
  • Mounting Style: Panel Mount

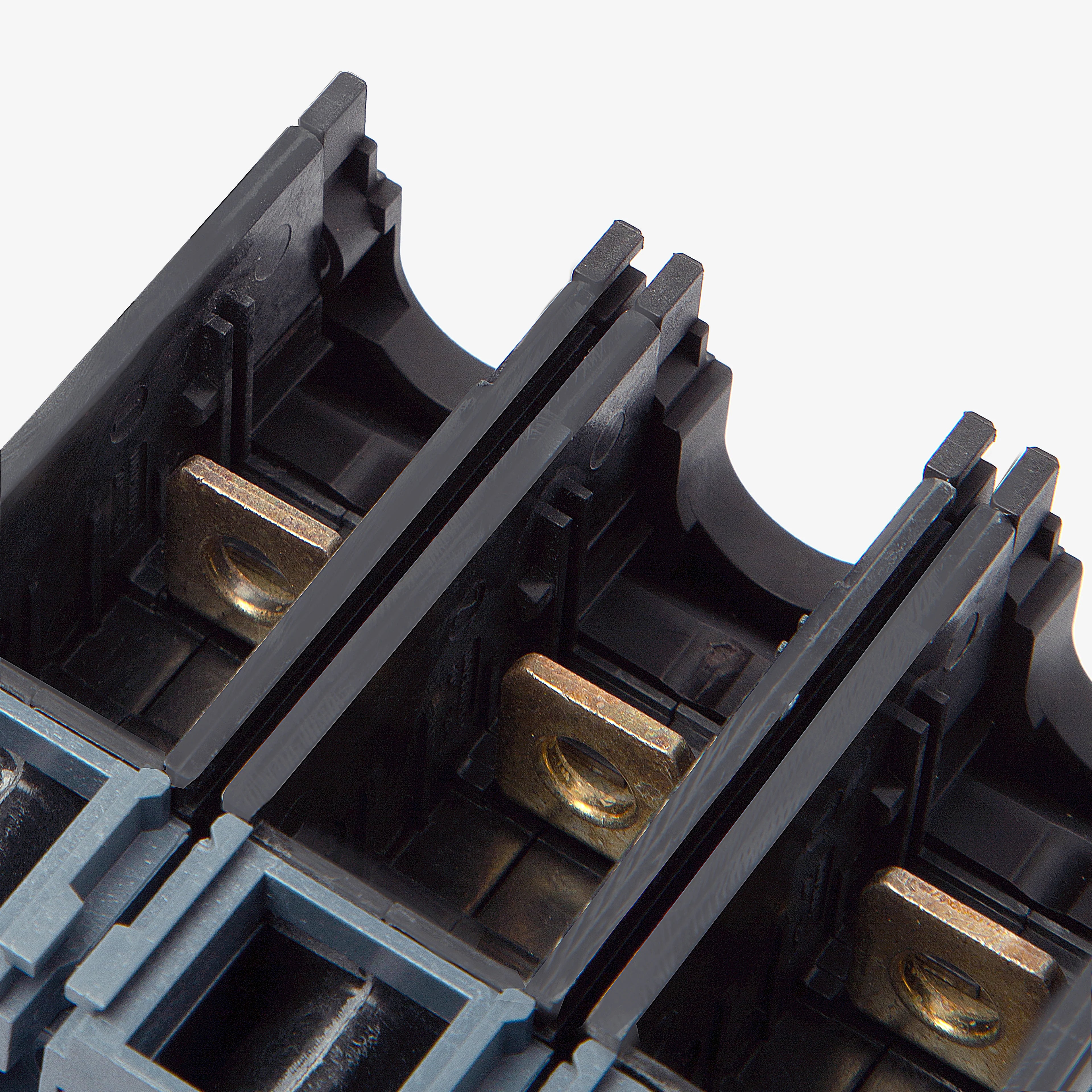

  • Terminal Type: Lugs
  • Trip Technology: Thermal Magnetic
  • Trip Unit: TM240
  • Trip Function Code: LI
  • Trip Function: Long-Time and Instantaneous Protection
  • Trip Adjustability: Adjustable Thermal, Adjustable Magnetic
  • Protection Type: Thermal Magnetic

Technical Specifications

  • Breaking Capacity Class: Medium (Class M)
  • Application: Industrial and Commercial Power Distribution
  • Compatibility: Siemens 3VA Panelboards, Switchboards (P3, P4, P5 systems with mounting kit)
  • Construction Features: HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip

Standards and Approvals

  • Standards: IEC 60947-2, UL 489, HACR
  • Approvals: UL, CSA, CE, EAC, IEC, VDE, ABS

Product Data

  • Manufacturer: Siemens
  • Series: SENTRON 3VA5
  • Part Number: 3VA5330-5EF31-0AA0

Applications

  • Industrial Power Distribution Systems
  • Commercial Electrical Installations
  • Panelboards and Switchboards
  • Motor Control Centers
  • Feeder Circuit Protection
  • Branch Circuit Protection
  • High Fault Current Applications
  • Heavy Electrical Load Distribution
  • Critical Infrastructure Systems
  • Retrofit and Upgrade Projects
  • Type Circuit Breakers
  • Vendor Siemens / ITE
  • Brand Siemens
