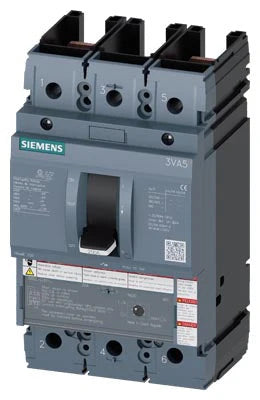

Siemens 3VA6110-6HL31-0AA0 100 Amp 3-Pole Molded Case Circuit Breaker – Feed-Thru – 240/480/600VAC Rated

In stock
SKU: 3VA6110-6HL31-0AA0 GTIN/UPC: 804766306792
$1,213.65
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA6110-6HL31-0AA0 is a high-performance molded case circuit breaker (MCCB) from the SENTRON 3VA6 series, designed for industrial and commercial power distribution systems requiring precise electronic protection. Built on the 3VA61 frame, this 100A, 3-pole breaker delivers reliable long-time and instantaneous (LI) protection using an ETU320 electronic trip unit. It provides accurate and stable protection characteristics, ensuring dependable coordination in modern electrical installations. With high interrupting capacity up to 65kA at 480VAC, it is suitable for demanding fault conditions. The breaker is designed for Siemens 3VA panelboards and switchboards and is supplied without connection lugs where specified.

Voltage and Rating

  • Current Rating: 100 Amps
  • Voltage Rating: 240VAC, 480VAC, 600VAC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 100kA @ 240VAC
    • 65kA @ 480VAC
    • 22kA @ 600VAC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: SENTRON 3VA6
  • Family: 3VA
  • Part Number: 3VA6110-6HL31-0AA0
  • Frame Size: 3VA61 Frame
  • Number of Poles: 3-Pole
  • Mounting Style: Panel Mount (Feed-Thru connection as specified)
  • Terminal Type: Without Lugs (where applicable)
  • Trip Technology: Electronic Trip Unit
  • Trip Unit: ETU320
  • Trip Function Code: LI
  • Trip Function: Long-Time and Instantaneous Protection
  • Protection Type: Electronic
  • Connection Configuration: Feed-Thru / Without Lugs

Technical Specifications

  • Breaking Capacity Class: High interrupting capacity (Class H)
  • Application: Industrial and Commercial Power Distribution
  • Compatibility: Siemens 3VA Panelboards and Switchboards
  • Construction Features: HACR Rated, Current Limiting, Reverse Feed Capability

Standards and Approvals

  • Standards: IEC 60947-2, UL 489, CSA C22.2 No. 5
  • Approvals: CSA, CE, UL, EAC, VDE

Product Data

  • Manufacturer: Siemens
  • Series: SENTRON 3VA6
  • Part Number: 3VA6110-6HL31-0AA0

Applications

  • Industrial Power Distribution Systems
  • Commercial Electrical Installations
  • Panelboards and Switchboards
  • Motor Control Centers
  • Feeder Circuit Protection
  • Branch Circuit Protection
  • High Fault Current Applications
  • Critical Infrastructure Systems
  • Precision Electronic Protection Systems
  • Current-Limiting Protection Networks
  • Type Circuit Breakers
