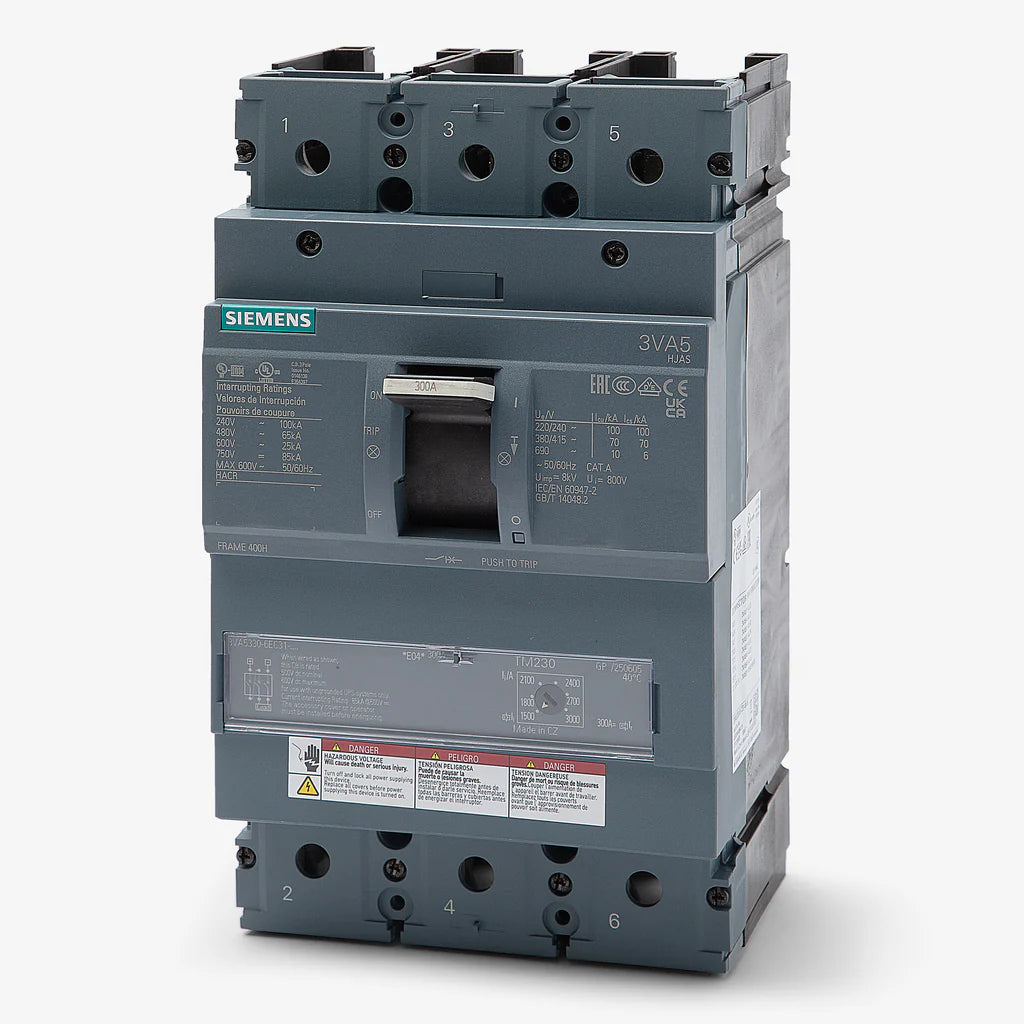

Siemens 3VA6340-7HL31-0AA0 400 Amp 3-Pole Molded Case Circuit Breaker – Panel Mount – 240/480/600VAC Rated

The Siemens 3VA6340-7HL31-0AA0 is a high-performance molded case circuit breaker (MCCB) from the SENTRON 3VA6 series, engineered for industrial, commercial, and high-energy power distribution systems requiring very high interrupting capacity. Built on the 3VA63 frame, this 400A, 3-pole breaker provides reliable long-time and instantaneous (LI) protection using an ETU320 electronic trip unit with adjustable settings for precise coordination. It is designed for integration into Siemens P3, P4, and P5 panelboards, switchboards, and motor control centers. With a high interrupting rating of up to 100kA at 480VAC, it ensures strong fault protection in critical electrical networks.

Voltage and Rating

• Current Rating: 400 Amps
• Voltage Rating: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC
• Phase: 3-Phase
• Frequency: 50/60 Hz
• AIC Rating:
  • 100kA @ 240VAC
  • 100kA @ 480VAC
  • 35kA @ 600Y/347VAC
  • 35kA @ 600VAC

Key Specifications

• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Series: SENTRON 3VA6
• Family: 3VA
• Part Number: 3VA6340-7HL31-0AA0
• Frame Size: 3VA63 Frame
• Number of Poles: 3-Pole
• Mounting Style: Panel Mount
• Terminal Type: Lugs (not included where specified)
• Trip Technology: Electronic Trip Unit
• Trip Unit: ETU320
• Trip Function Code: LI
• Trip Function: Long-Time and Instantaneous Protection
• Trip Adjustability: Adjustable
• Protection Type: Electronic
• Connection Configuration: Lugs not included (as specified)

Technical Specifications

• Breaking Capacity Class: Very High interrupting capacity (Class C)
• Application: Industrial and Commercial Power Distribution
• Compatibility: Siemens P3, P4, P5 Panelboards, Switchboards, Motor Control Centers
• Construction Features: HACR Rated, Current Limiting, Reverse Feed

Standards and Approvals

• Standards: IEC 60947-2, UL 489, CSA C22.2 No. 5
• Approvals: CE, CSA, UL

Product Data

• Manufacturer: Siemens
• Series: SENTRON 3VA6
• Part Number: 3VA6340-7HL31-0AA0

Applications

• Industrial Power Distribution Systems
• Commercial Electrical Installations
• Heavy Industrial Facilities
• Motor Control Centers
• Switchboards and Panelboards
• Feeder Circuit Protection
• Branch Circuit Protection
• High Fault Current Applications
• Critical Infrastructure Systems
• Selective Coordination Systems
• Current-Limiting Protection Networks
