Siemens / ITE

Siemens 3VA9473-0JJ23 400-600 Amp 3-Pole Aluminum Lug Kit – Dual Conductor – For 3VA63 & 3VA64 Frame Circuit Breakers

In stock
SKU: 3VA9473-0JJ23 GTIN/UPC: 804766325847
$366.80
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

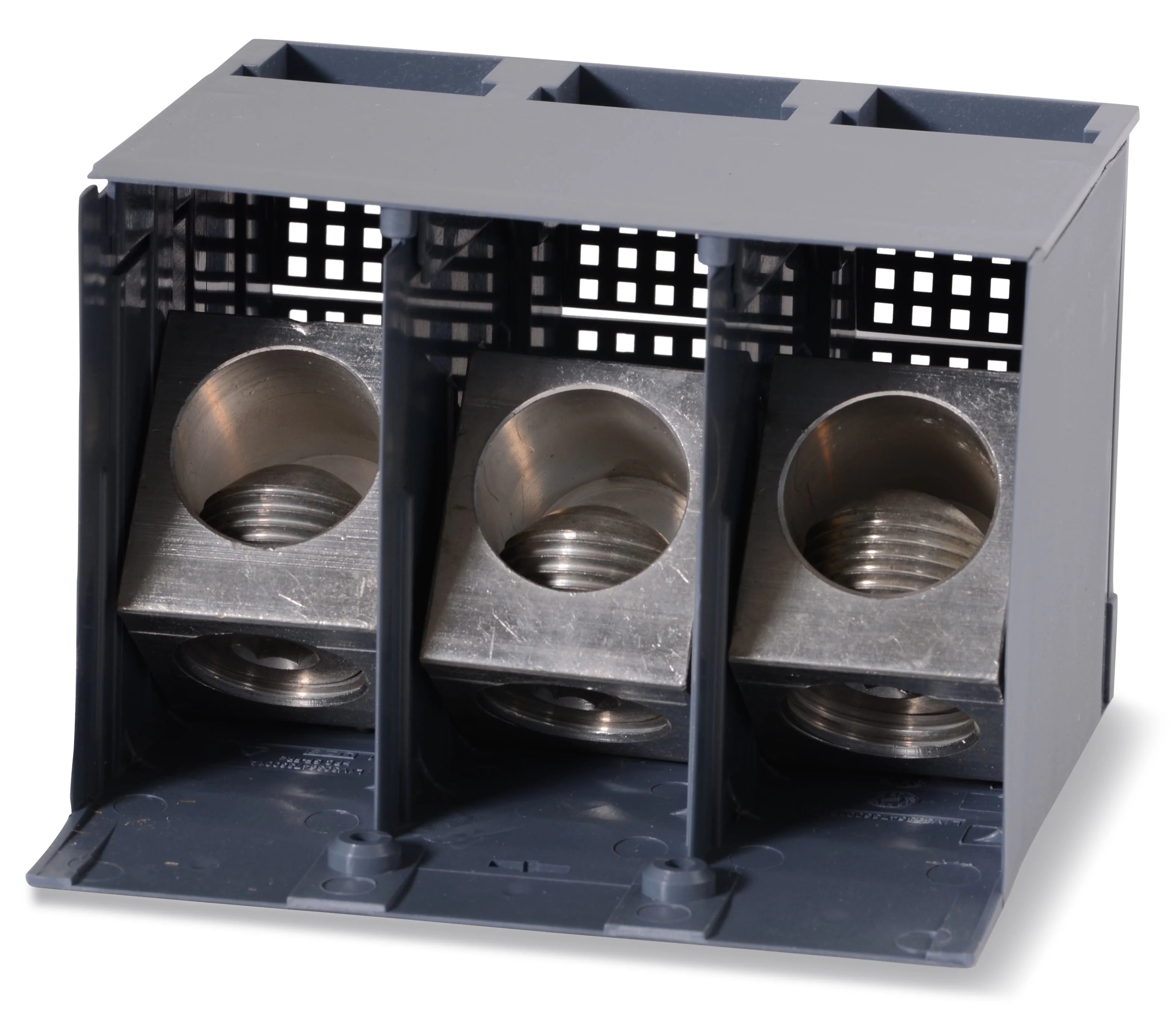

The Siemens 3VA9473-0JJ23 is a heavy-duty 3-pole lug kit designed for use with Siemens 3VA63 and 3VA64 frame molded case circuit breakers. Engineered for reliable conductor termination in commercial and industrial power distribution systems, this lug kit supports current ratings from 400 to 600 amps. Constructed from durable aluminum, it accommodates dual conductors per pole and accepts wire sizes ranging from 2/0 AWG to 600 kcmil. The kit is UL approved and provides secure electrical connections for high-capacity circuit breaker installations.

Voltage and Rating

  • Current Rating: 400-600 Amps
  • Pole Configuration: 3-Pole
  • Conductor Capacity: 2 Conductors per Pole
  • Wire Range: 2/0 AWG to 600 kcmil

Key Specifications

  • Product Type: Lug Kit
  • Series: 3VA
  • Part Number: 3VA9473-0JJ23
  • Frame Compatibility: 3VA63, 3VA64
  • Number of Poles: 3-Pole
  • Terminal Connection: Conductor Lug
  • Body Material: Aluminum
  • Number of Wires: 2
  • Installation Type: Circuit Breaker Accessory

Technical Specifications

  • Application: Power Distribution and Circuit Breaker Termination
  • Compatibility: Siemens 3VA63 and 3VA64 Frame Circuit Breakers
  • Conductor Range: 2/0 AWG to 600 kcmil
  • Connection Type: Dual-Conductor Lug Configuration
  • Construction: Heavy-Duty Aluminum Body

Standards and Approvals

  • Approvals: UL Listed

Product Data

  • Manufacturer: Siemens
  • Series: 3VA
  • Part Number: 3VA9473-0JJ23
  • UPC: 804766325847

Applications

  • Commercial Power Distribution Systems
  • Industrial Electrical Installations
  • Switchboards
  • Panelboards
  • Motor Control Centers
  • Circuit Breaker Cable Terminations
  • High-Current Feeder Applications
  • Electrical Distribution Equipment
  • New Installations and Retrofit Projects
  • Heavy-Duty Power Distribution Networks
  • Type Circuit Breakers
  • Vendor Siemens / ITE
  • Brand Siemens
