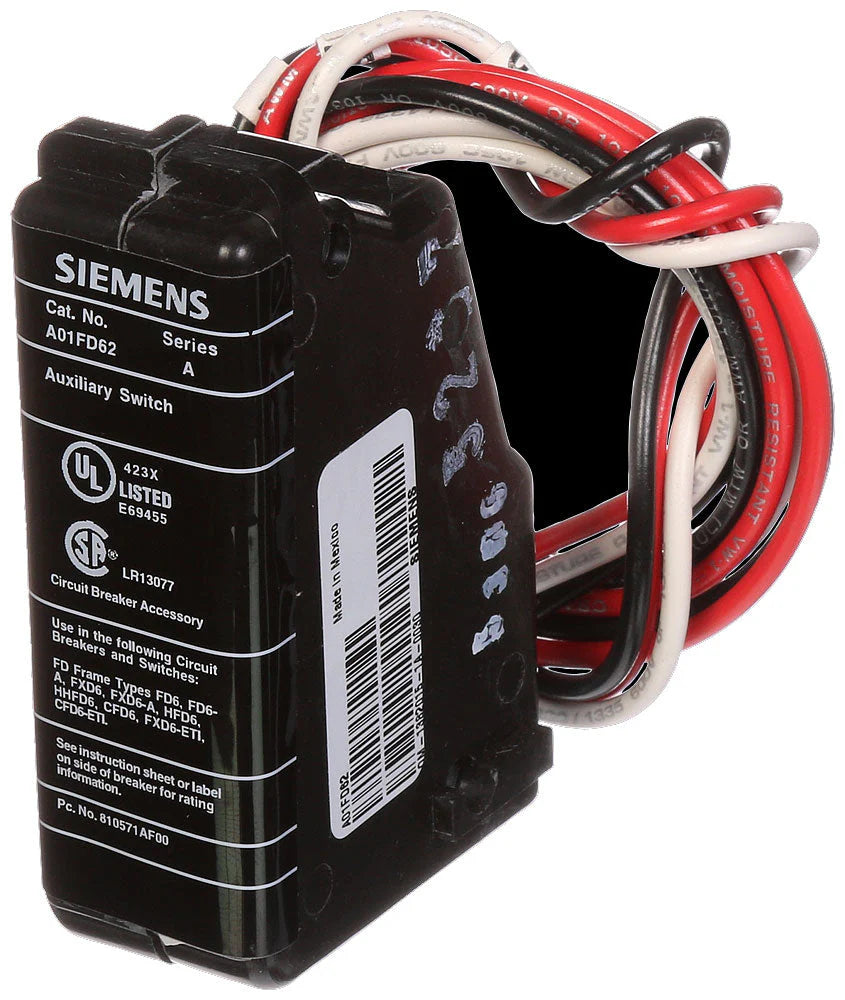

Siemens A01FD62 Molded Case Circuit Breaker Auxiliary Switch – 1NO/1NC – 240/250V AC/DC – FD Frame Compatible

The Siemens A01FD62 is a molded case circuit breaker auxiliary switch designed for use with Siemens/ITE FD frame breakers. It provides reliable status indication and control feedback through one normally open (NO) and one normally closed (NC) contact configuration.

This auxiliary switch is rated for 240/250V AC/DC and is used to transmit breaker status signals such as ON, OFF, or TRIPPED to external monitoring or control systems. It is engineered for dependable performance in industrial and commercial power distribution applications.

Specifications

• Part Number: A01FD62
• Manufacturer: Siemens / ITE
• Product Group: 3741
• Product Lifecycle: PM300 – Active Product
• Net Weight: 0.351 lb
• RoHS Compliance: Since 03/24/2009

Electrical Ratings

• Voltage Rating: 240/250V AC/DC
• Contact Configuration: 1 NO / 1 NC

Compatibility

• For Use With: Siemens FD frame molded case circuit breakers

Standards and Approvals

• UL Listed
• CSA Certified
• Authentic Siemens Product

Technical Features

• Function: Provides auxiliary switching for breaker status indication and control feedback
• Design: Compact plug-in accessory for FD frame MCCBs
• Application Suitability: Industrial and commercial power distribution systems
• Performance: Reliable auxiliary contact operation for signaling circuits
• Installation: Direct mounting on compatible FD frame breakers

Applications

• Circuit breaker status indication (ON/OFF/TRIP)
• Control panel monitoring systems
• Industrial power distribution networks
• Building automation and control systems
• Safety and interlocking circuits
• Electrical system monitoring and diagnostics
