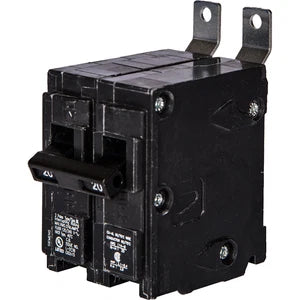

Siemens B220AFCH Molded Case Circuit Breaker – 20A – 2 Pole – 120/240V AC – 22kA – Bolt-On – BL Series

The Siemens B220AFCH is a 20A, 2-pole, 120/240V AC molded case circuit breaker from the Siemens BL Series. It is designed for panelboard applications and provides arc fault circuit interruption (AFCI) protection for electrical distribution systems.

The B220AFCH features a BAFH type designation, thermal-magnetic protection, and long-time and instantaneous trip functions. It has a 22kA interrupting rating at 120V and is designed for use with compatible Siemens P1 panelboards.

Specifications

• Part Number / MPN: B220AFCH
• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family / Series: BL Series
• Type: BAFH
• Rated Current: 20A
• Voltage Rating: 120/240V AC
• Phase: 1 Phase
• Poles: 2 Pole
• Interrupting Rating (AIC): 22kA @ 120V
• Connection / Mounting: Bolt-On
• Functions: Long-Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Breaker Type: Arc Fault Circuit Interrupter (AFCI)
• Special Feature: CAFCL
• Temperature Rating: -13°F to 158°F (-25°C to 70°C)
• Width: 2 inches
• Height: 3.5 inches
• Depth: 3 inches
• Panel Type: Siemens P1 Panelboards
• UPC: 040892150711
• GTIN: 00040892150711
• Country of Origin: Philippines
• Listed Weight: 0.728 lb

Part Numbers & Identification

• MPN / Part Number: B220AFCH
• Type: BAFH
• Series: BL Series
• Special Feature: CAFCL
• UPC: 040892150711
• GTIN: 00040892150711
• Product Identification: Siemens B220AFCH, 20A, 2-Pole, 120/240V AC, 22kA, AFCI Circuit Breaker

Compatibility

The Siemens B220AFCH is designed for use in compatible Siemens P1 panelboards and electrical distribution applications requiring a 20A, 2-pole, 120/240V AC circuit breaker with arc fault protection.

The supplied specifications identify the connection as bolt-on. Although the product information also describes the breaker as plug-in, the detailed specifications list the connection as bolt-on; therefore, the panelboard compatibility should be verified against the specific Siemens panelboard before installation.

Certifications

The provided product data identifies the following standards and certifications:

• UL Listed

• UL 489

• CSA Certified

• HACR Rated

• NOM Certified
