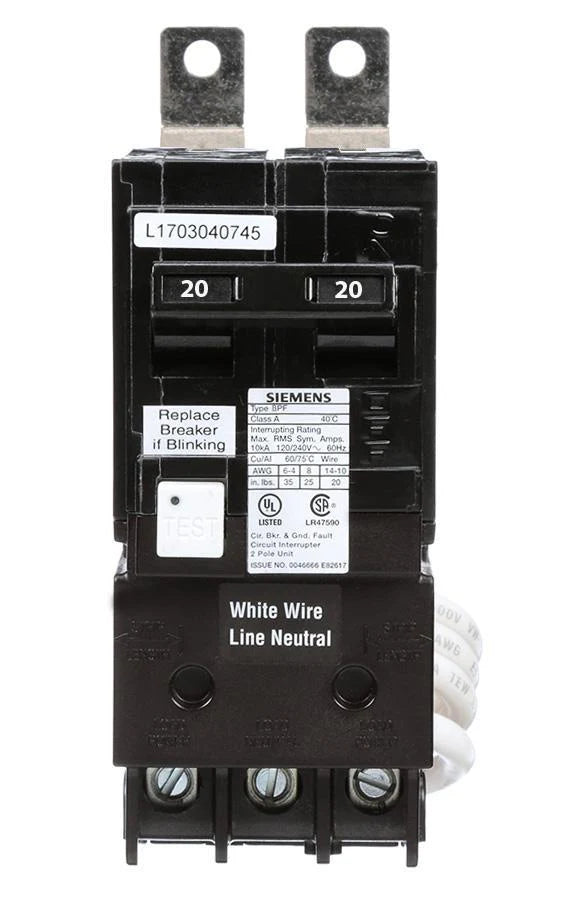

Siemens B220GF Ground Fault Circuit Interrupter (GFCI) Circuit Breaker – 20A – 2 Pole – 240V – 5mA – 10kAIC

The Siemens B220GF is a bolt-on Ground Fault Circuit Interrupter (GFCI) circuit breaker designed to provide both overcurrent protection and highly sensitive ground fault protection for personnel safety. This 20A, two-pole breaker combines thermal magnetic protection with 5mA ground fault detection, offering fast response to leakage currents that could pose a shock hazard.

With a 10kA interrupting capacity and integrated GFCI functionality, the B220GF is ideal for applications requiring enhanced personnel protection and reliable circuit interruption in the event of a fault.

Specifications

• Brand: Siemens
• Manufacturer: Siemens Breakers
• Part Number: B220GF
• Category: Circuit Breakers
• Connection Type: Bolt-On

Electrical Ratings

• Current Rating: 20A
• Number of Poles: 2 Pole
• Voltage Rating: 240V AC
• Ground Fault Sensitivity: 5mA
• Interrupting Capacity: 10kAIC

Protection Features

• Ground Fault Circuit Interrupter (GFCI) Protection
• Thermal Magnetic Trip Mechanism
• Long-Time Overload Protection
• Instantaneous Short-Circuit Protection
• High-sensitivity 5mA personnel protection

Technical Features

• Bolt-on mounting design for secure installation
• Integrated ground fault sensing and interruption
• Fast and reliable fault detection
• Designed for personnel safety in high-risk environments
• Durable molded case construction for long service life

Standards and Approvals

• CSA Approved

Applications

• Personnel protection circuits
• Commercial and industrial electrical distribution systems
• Wet or high-risk environments requiring 5mA protection
• HVAC and pump systems
• Industrial machinery and equipment protection
• Control panels and branch circuits
• Electrical safety and compliance applications
