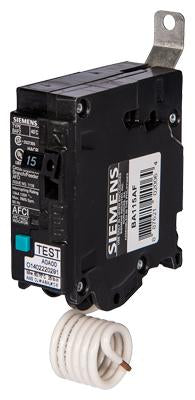

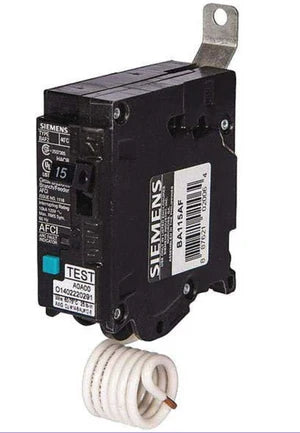

Siemens BA115AF Molded Case Circuit Breaker – 15A – 1 Pole – 120V AC – 10kA – Bolt-On – BL Series

The Siemens BA115AF is a 15A, 1-pole, 120V AC molded case circuit breaker from the Siemens BL Series. It is designed for bolt-on mounting in compatible panelboards and provides arc fault circuit interruption (AFCI) protection for electrical distribution applications.

The BA115AF features a thermal-magnetic trip unit with long-time and instantaneous trip functions and a 10kA interrupting rating at 120V. It is designed for reliable circuit protection in compatible residential and commercial panelboard applications.

Specifications

• Part Number / MPN: BA115AF
• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family / Series: BL Series
• Type: BA
• Rated Current: 15A
• Voltage Rating: 120V AC
• Phase: 1 Phase
• Poles: 1 Pole
• Interrupting Rating (AIC): 10kA @ 120V
• Connection / Mounting: Bolt-On
• Functions: Long-Time and Instantaneous Trip
• Trip Unit / Protection: Thermal Magnetic
• Protection Type: Arc Fault Circuit Interrupter (AFCI)
• Temperature Rating: -13°F to 158°F (-25°C to 70°C)
• Application: Electrical Distribution
• UPC: 887621020064
• Country of Origin: Philippines
• Dimensions: 1.181 × 3.15 × 5.118 inches
• Weight: 0.243 lb

Part Numbers & Identification

• MPN / Part Number: BA115AF
• Type: BA
• Series: BL Series
• UPC: 887621020064
• Product Identification: Siemens BA115AF, 15A, 1-Pole, 120V AC, 10kA, Bolt-On AFCI Circuit Breaker

Compatibility

The Siemens BA115AF is designed for compatible Siemens panelboards requiring a 15A, 1-pole, 120V AC bolt-on circuit breaker with arc fault protection.

It is intended for electrical distribution applications and can be used in compatible residential and commercial panelboard systems. Always verify the specific panelboard model and breaker requirements before installation.

Certifications

The provided product information identifies the following certification:

• UL Listed
