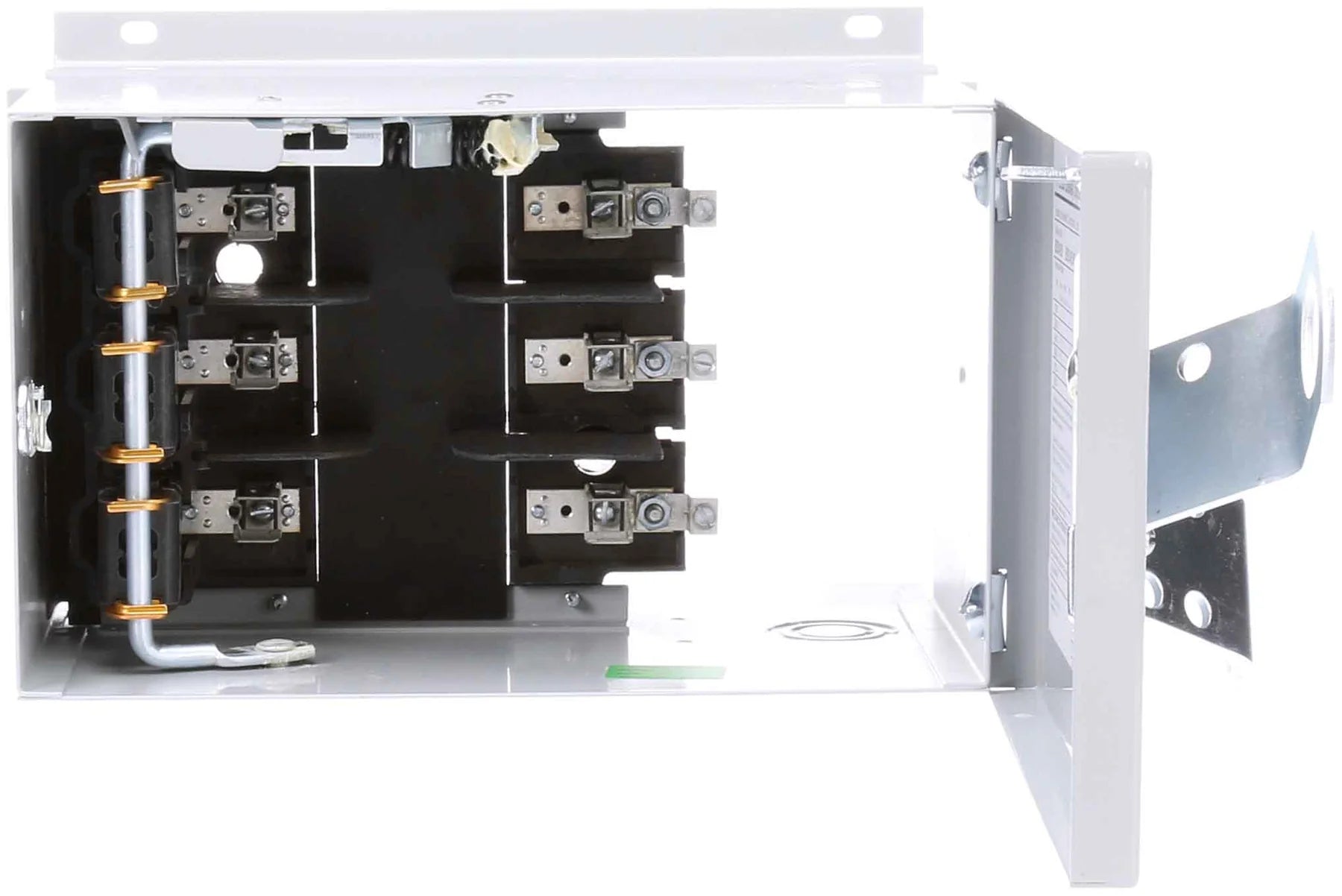

Siemens BOS14351 Fusible Bus Plug – BD Series – 30A – 3 Phase – 3 Wire – 250V – Vacu-Break Switch Plug
Couldn't load pickup availability
Ask an expert
The Siemens BOS14351 is a BD Series fusible bus plug designed for use in plug-in busway systems. It features a Vacu-Break switch mechanism that provides safe and reliable switching and isolation of connected loads. This floor-operable bus plug includes terminal protection and is engineered for secure connection in BD plug-in busway applications.
Rated for 30A operation, the BOS14351 supports 3-phase, 3-wire systems and is suitable for industrial and commercial power distribution where flexible load connection and safe disconnecting capability are required.
Specifications
- Brand: Siemens
- Manufacturer: Siemens Breakers
- Part Number: BOS14351
- Series: BD Series
- Category: Bus Plug / Fusible Switch Plug
- Type: BOS
Electrical Ratings
- Current Rating: 30A
- Voltage Rating: 250V AC/DC
- System: 3 Phase, 3 Wire
- Switching Type: Vacu-Break Fusible Switch
Performance Ratings
- Horsepower Rating (NEC Standard): 7.5 HP
- Maximum HP (Time Delay Fuse): 20 HP
Technical Features
- Fusible Vacu-Break switch technology for safe load interruption
- Floor-operable design for convenient operation
- Terminal protection for enhanced safety
- Plug-in compatibility with BD busway systems
- Reliable switching for industrial power distribution
Mechanical Specifications
- Dimensions (H × W × D): 9.449 × 15.354 × 12.992 in
- Weight: 14.57 lb
Applications
- Industrial busway distribution systems
- Commercial power distribution networks
- Plug-in load centers
- Factory and plant electrical systems
- Motor and equipment power connections
- Flexible power distribution layouts
Standards and Approvals
- CSA Approved
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
