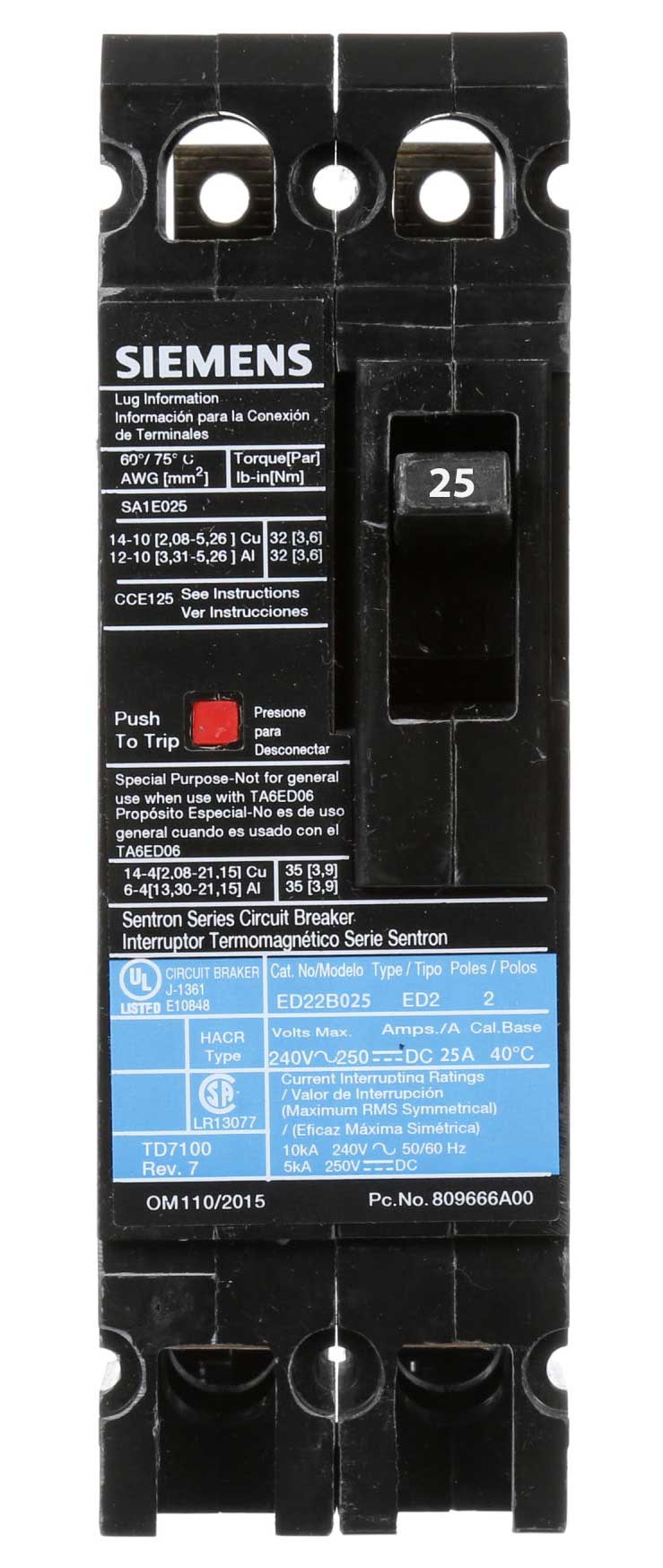

Siemens ED22B025 Molded Case Circuit Breaker – Sentron Series – ED Frame – 25A – 2 Pole – 240V – Bolt-On – 10kAIC

The Siemens ED22B025 is a Sentron Series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical distribution systems. This 25A, two-pole breaker operates at 240V and features a bolt-on connection for secure installation in compatible Siemens panelboards.

Equipped with thermal magnetic trip technology, the ED22B025 provides dependable Long-Time and Instantaneous (LI) protection against overloads and short-circuit faults. Its ED frame construction ensures compact installation while maintaining strong electrical performance and reliability.

Specifications

• Brand: Siemens / ITE
• Manufacturer: Siemens
• Part Number: ED22B025
• Series: Sentron Series
• Type: ED Frame
• Category: Molded Case Circuit Breaker
• Mounting Style: Bolt-On

Electrical Ratings

• Current Rating: 25A
• Number of Poles: 2 Pole
• Voltage Rating: 240V AC
• Phase: 1 Phase
• Interrupting Capacity: 10kAIC @ 240V
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time, Instantaneous (LI)

Technical Features

• Bolt-on mounting for secure installation
• Load-side lug terminals included
• Thermal magnetic overcurrent protection system
• Compact ED frame molded case design
• Reliable protection for branch circuits

Environmental & Mechanical

• Ambient Temperature Rating: 40°C
• Dimensions (H × W × D): 6.35 × 2 × 3.92 in
• Weight: 3.7 lbs

Standards and Approvals

• CSA Approved
• Siemens / ITE Authentic Product

Applications

• Commercial electrical distribution systems
• Industrial panelboards
• Branch circuit protection
• HVAC and equipment circuits
• Lighting and receptacle circuits
• General-purpose 240V applications
