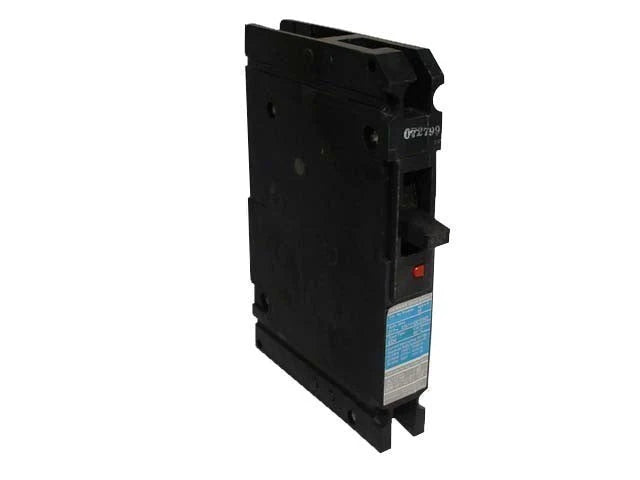

Siemens ED41B015 Molded Case Circuit Breaker – Sentron Series – ED/CED Frame – 15A – 1 Pole – 120V – Feed-Thru – 65kAIC

The Siemens ED41B015 is a Sentron Series molded case circuit breaker designed for high-performance overcurrent protection in commercial and industrial electrical distribution systems. This 15A, single-pole breaker operates at 120V and features a feed-thru connection design for flexible wiring configurations.

Engineered with thermal magnetic trip technology, the ED41B015 provides reliable Long-Time and Instantaneous (LI) protection against overloads and short-circuit faults. Its high interrupting capacity makes it suitable for demanding applications requiring enhanced fault protection.

Specifications

• Brand: Siemens / ITE
• Manufacturer: Siemens
• Part Number: ED41B015
• Series: Sentron Series
• Type: ED / CED Frame
• Category: Molded Case Circuit Breaker
• Mounting Style: Feed-Thru

Electrical Ratings

• Current Rating: 15A
• Number of Poles: 1 Pole
• Voltage Rating: 120V AC
• Phase: 1 Phase
• Interrupting Capacity: 65kAIC @ 120V
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time, Instantaneous (LI)

Technical Features

• Feed-thru connection design
• Line and load-side lug terminals included
• High interrupting capacity for enhanced protection
• Thermal magnetic overcurrent protection system
• Compact ED/CED frame construction

Environmental & Mechanical

• Ambient Temperature Rating: 40°C
• Dimensions (H × W × D): 6.35 × 1 × 3.92 in
• Weight: 1.3 lbs

Standards and Approvals

• CSA Approved
• Siemens Sentron Authentic Product

Applications

• Commercial electrical distribution systems
• Industrial control panels
• High fault current environments
• Branch circuit protection
• Lighting and receptacle circuits
• General-purpose 120V applications
