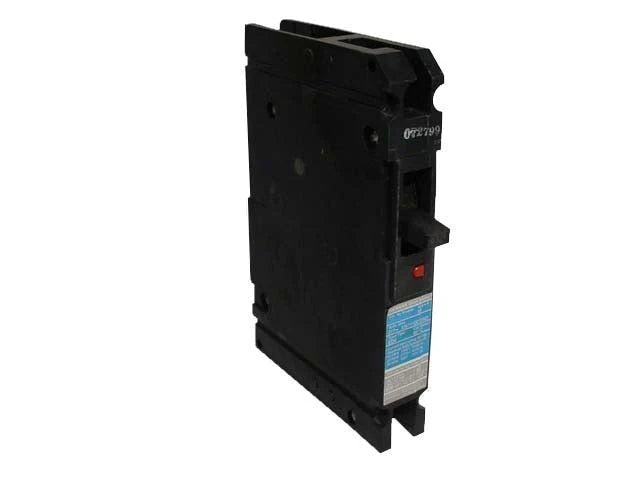

Siemens ED41B025 Molded Case Circuit Breaker – Sentron Series – ED Frame – 25A – 1 Pole – 120V – Feed-Thru – 65kAIC

The Siemens ED41B025 is a Sentron Series molded case circuit breaker designed for superior overcurrent protection in commercial and industrial electrical systems. This 25A, single-pole breaker operates at 120V and features a feed-thru connection design with line and load-side lug terminals for installation flexibility.

Utilizing thermal magnetic trip technology, the ED41B025 provides dependable Long-Time and Instantaneous (LI) protection against overloads and short-circuit faults. Its high interrupting capacity makes it well-suited for applications requiring enhanced fault-current protection while maintaining reliable system operation.

Specifications

• Brand: Siemens
• Manufacturer: Siemens Breakers
• Part Number: ED41B025
• Series: Sentron Series
• Type: ED Frame
• Category: Molded Case Circuit Breaker
• Connection Type: Feed-Thru

Electrical Ratings

• Current Rating: 25A
• Number of Poles: 1 Pole
• Voltage Rating: 120V AC
• Phase: 1 Phase
• Interrupting Capacity: 65kAIC @ 120V
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time, Instantaneous (LI)

Technical Features

• Feed-thru design with line and load-side lug terminals
• High interrupting capacity for demanding applications
• Thermal magnetic overcurrent protection
• Long-Time and Instantaneous trip functions
• Compact ED frame construction
• Reliable branch circuit and equipment protection

Environmental & Mechanical

• Ambient Temperature Rating: 40°C
• Dimensions (H × W × D): 6.35 × 1 × 3.92 in
• Weight: 1.14 lbs

Standards and Approvals

• CSA Approved
• Siemens Authentic Product

Applications

• Commercial electrical distribution systems
• Industrial control panels
• High fault-current environments
• Branch circuit protection
• Lighting and receptacle circuits
• Equipment and machinery protection
