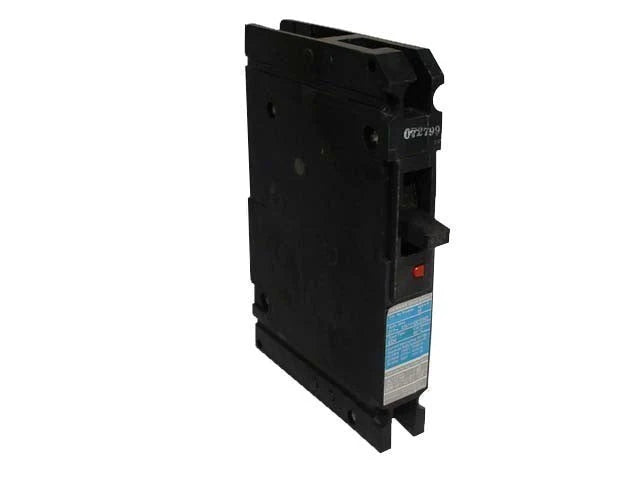

Siemens ED41B030 Molded Case Circuit Breaker – Sentron Series – ED Frame – 30A – 1 Pole – 120V – Feed-Thru – 65kAIC

The Siemens ED41B030 is a Sentron Series molded case circuit breaker engineered to provide dependable overcurrent protection for commercial and industrial electrical distribution systems. This 30A, single-pole breaker operates at 120V and features a feed-thru connection design with line and load-side lug terminals for convenient installation and wiring flexibility.

Designed with thermal magnetic trip technology, the ED41B030 delivers reliable Long-Time and Instantaneous (LI) protection against overloads and short-circuit faults. Its high interrupting capacity of 65kAIC makes it suitable for applications where elevated fault-current protection is required.

Specifications

• Brand: Siemens
• Manufacturer: Siemens Breakers
• Part Number: ED41B030
• Series: Sentron Series
• Type: ED Frame
• Category: Molded Case Circuit Breaker
• Connection Type: Feed-Thru

Electrical Ratings

• Current Rating: 30A
• Number of Poles: 1 Pole
• Voltage Rating: 120V AC
• Phase: 1 Phase
• Interrupting Capacity: 65kAIC @ 120V
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time, Instantaneous (LI)

Technical Features

• Feed-thru design with line and load-side lug terminals
• High interrupting capacity for enhanced fault protection
• Thermal magnetic overcurrent protection system
• Long-Time and Instantaneous trip functions
• Compact ED frame construction
• Reliable performance in demanding electrical applications

Environmental & Mechanical

• Ambient Temperature Rating: 40°C
• Dimensions (H × W × D): 6.35 × 1 × 3.92 in
• Weight: 1.14 lbs

Standards and Approvals

• CSA Approved
• Siemens Authentic Product

Applications

• Commercial electrical distribution systems
• Industrial control panels
• High fault-current installations
• Branch circuit protection
• Lighting and power circuits
• Equipment and machinery protection
