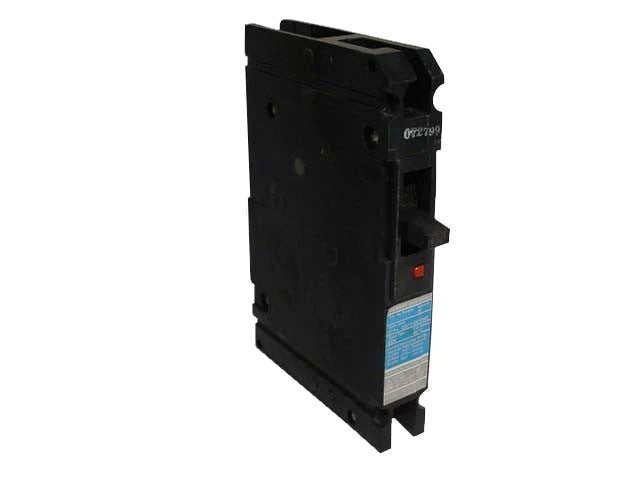

Siemens ED41B035 Molded Case Circuit Breaker – Sentron Series – ED Frame – 35A – 1 Pole – 120V – Feed-Thru – 65kAIC

The Siemens ED41B035 is a Sentron Series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical distribution systems. This 35A, single-pole breaker operates at 120V and features a feed-thru connection design with line and load-side lug terminals, allowing for flexible installation and wiring configurations.

Equipped with thermal magnetic trip technology, the ED41B035 provides dependable Long-Time and Instantaneous (LI) protection against overloads and short-circuit conditions. Its high 65kA interrupting capacity makes it ideal for applications requiring superior fault-current protection and dependable circuit performance.

Specifications

• Brand: Siemens
• Manufacturer: Siemens Breakers
• Part Number: ED41B035
• Series: Sentron Series
• Type: ED Frame
• Category: Molded Case Circuit Breaker
• Connection Type: Feed-Thru

Electrical Ratings

• Current Rating: 35A
• Number of Poles: 1 Pole
• Voltage Rating: 120V AC
• Phase: 1 Phase
• Interrupting Capacity: 65kAIC @ 120V
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time, Instantaneous (LI)

Technical Features

• Feed-thru design with line and load-side lug terminals
• High interrupting capacity for enhanced fault protection
• Thermal magnetic overcurrent protection system
• Long-Time and Instantaneous trip functions
• Compact ED frame construction
• Reliable branch circuit and equipment protection

Environmental & Mechanical

• Ambient Temperature Rating: 40°C
• Dimensions (H × W × D): 6.35 × 1 × 3.92 in
• Weight: 1.14 lbs

Standards and Approvals

• CSA Approved
• Siemens Authentic Product

Applications

• Commercial electrical distribution systems
• Industrial power distribution panels
• High fault-current installations
• Branch circuit protection
• Lighting and power circuits
• Equipment and machinery protection
