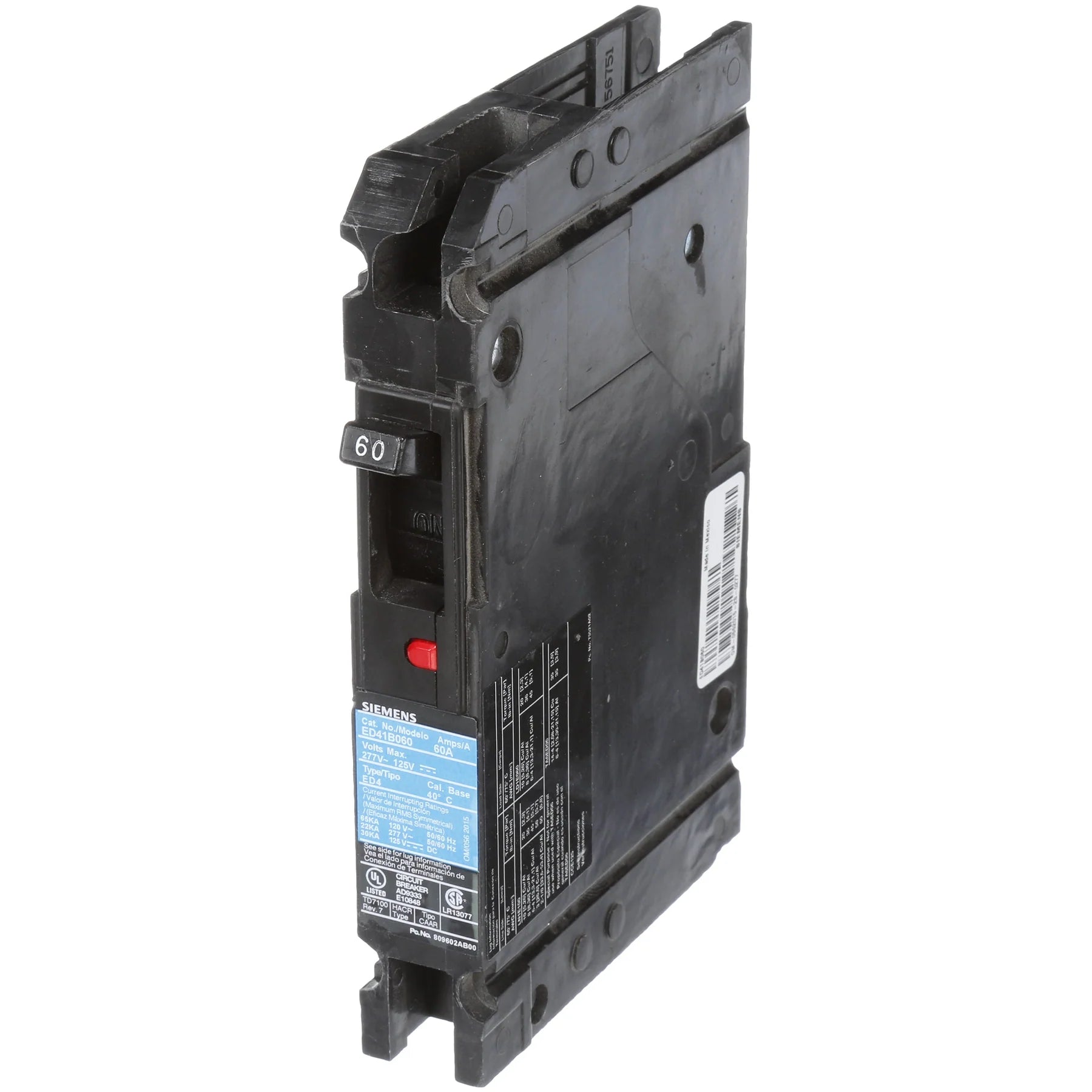

Siemens ED41B060 Molded Case Circuit Breaker – Sentron Series – ED Frame – 60A – 1 Pole – 120V – Bolt-On – 65kAIC

The Siemens ED41B060 is a Sentron Series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical distribution systems. This 60A, single-pole breaker operates at 120V and features a bolt-on connection for secure installation in compatible Siemens panelboards.

Engineered with thermal magnetic trip technology, the ED41B060 provides dependable Long-Time and Instantaneous (LI) protection against overloads and short-circuit faults. With a high interrupting capacity of 65kAIC at 120V, this breaker is well-suited for applications where elevated fault-current protection is required. Its compact ED frame construction ensures durability and dependable performance in demanding electrical environments.

Specifications

• Brand: Siemens / ITE
• Manufacturer: Siemens
• Part Number: ED41B060
• Series: Sentron Series
• Type: ED Frame
• Category: Molded Case Circuit Breaker
• Connection Type: Bolt-On

Electrical Ratings

• Current Rating: 60A
• Number of Poles: 1 Pole
• Voltage Rating: 120V AC
• Phase: 1 Phase
• Interrupting Capacity: 65kAIC @ 120V
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time, Instantaneous (LI)

Technical Features

• Bolt-on mounting for secure installation
• Load-side lug terminals included
• High interrupting capacity for enhanced fault protection
• Thermal magnetic overcurrent protection system
• Long-Time and Instantaneous trip functions
• Compact ED frame design

Environmental & Mechanical

• Ambient Temperature Rating: 40°C
• Dimensions (H × W × D): 6.35" × 1.15" × 3.92"
• Weight: 1.1 lbs

Standards and Approvals

• CSA Approved
• Siemens Authentic Product

Applications

• Commercial electrical distribution systems
• Industrial power distribution panels
• High fault-current installations
• Branch circuit protection
• Lighting and power circuits
• Equipment and machinery protection
