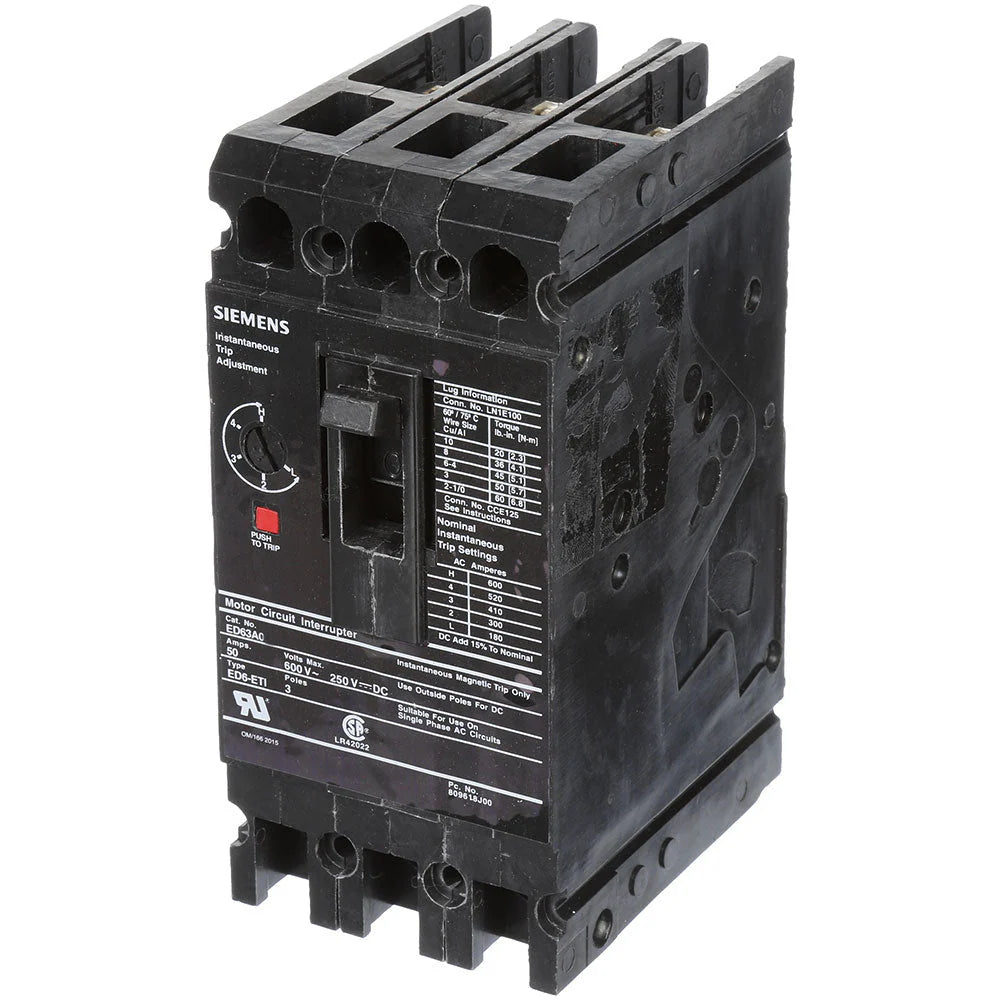

Siemens ED63A125 Motor Circuit Protector (MCP) – Sentron Series – ED Frame – 125A – 3 Pole – 600V – Magnetic Only – Bolt-On

The Siemens ED63A125 is a Sentron Series motor circuit protector (MCP) designed specifically for motor branch-circuit protection in industrial and commercial electrical systems. This 125A, three-pole device operates at 600V and uses a magnetic-only trip system, providing instantaneous short-circuit protection without thermal overload protection.

Built on the ED frame platform, the ED63A125 is intended for use in combination motor controllers where overload protection is provided separately. Its high interrupting capacity ensures reliable performance in demanding motor control applications.

Specifications

• Brand: Siemens
• Manufacturer: Siemens Breakers
• Part Number: ED63A125
• Series: Sentron Series
• Type: ED Frame
• Category: Motor Circuit Protector (MCP)
• Mounting Style: Bolt-On
• Connection Type: Lugs (not included)

Electrical Ratings

• Current Rating: 125A
• Number of Poles: 3 Pole
• Voltage Rating: 600V AC
• Phase: 3 Phase
• Interrupting Capacity: 25kAIC @ 480V
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I only)
• Magnetic Trip Range: 500–1250A

Technical Features

• Magnetic-only instantaneous trip protection
• Designed for motor circuit applications (MCP)
• Requires external overload protection device
• Bolt-on ED frame construction
• Suitable for combination motor starters
• High interrupting capacity for motor protection systems

Environmental & Mechanical

• Ambient Temperature Rating: 40°C
• Dimensions (H × W × D): 6.35" × 3" × 3.92"
• Weight: 0.38 lbs

Standards and Approvals

• CSA Approved
• Siemens Sentron Authentic Product

Applications

• Motor control centers (MCCs)
• Industrial motor branch circuit protection
• Combination starters
• HVAC motor systems
• Pumps, compressors, and conveyor systems
• Heavy-duty industrial motor applications
