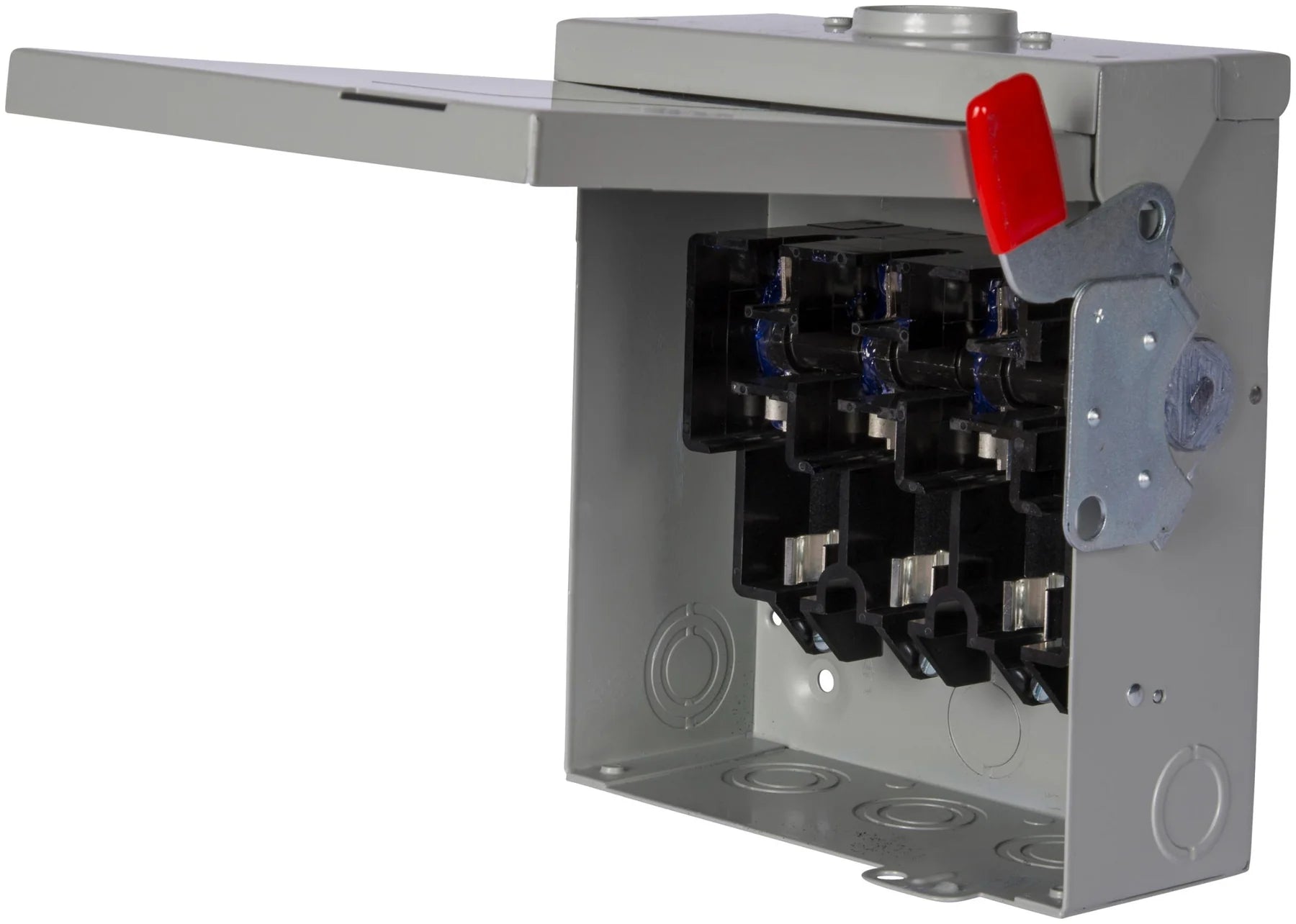

Siemens GF224NR General Duty Safety Switch – VBII Series – 200A – 2 Pole – 240V – Fused – NEMA 3R Outdoor Enclosure

The Siemens GF224NR is a VBII Series general duty safety switch designed for reliable circuit isolation and disconnect applications in commercial, industrial, and service entrance installations. Rated at 200A and 240V, this 2-pole fused safety switch features a solid neutral and is housed in a NEMA 3R weather-resistant enclosure, making it suitable for both indoor and outdoor use.

Engineered for dependable performance, the GF224NR provides a high short-circuit withstand rating of 100kA at 240V when properly fused. The switch is service entrance rated and suitable for three-phase motor loads, making it an ideal choice for power distribution, motor disconnect, and equipment isolation applications.

Specifications

• Brand: Siemens / ITE
• Manufacturer: Siemens
• Part Number: GF224NR
• Series: VBII Series
• Type: GF General Duty Safety Switch
• Category: Disconnect Switch
• Enclosure Type: NEMA 3R (Outdoor Rated)
• Fusibility: Fused Switch with Solid Neutral

Electrical Ratings

• Current Rating: 200A
• Voltage Rating: 240V AC
• Number of Poles: 2 Pole
• Phase: 1 Phase
• Interrupting Capacity: 100kA @ 240V (with appropriate fuses)

Technical Features

• General-duty fused safety switch
• Solid neutral design
• Service entrance labeled
• Suitable for three-phase motor load applications
• Outdoor-rated NEMA 3R enclosure
• Provides safe circuit isolation and disconnecting means
• Designed for commercial and industrial electrical systems

Horsepower Ratings

• 1-Phase, 2-Wire (Standard Fuse): 15 HP
• 3-Phase, 3-Wire: 25 HP (Standard Fuse)
• 3-Phase, 3-Wire: 60 HP (Time-Delay Fuse)
• DC Rating: 250VDC, 40 HP

Construction

• Weather-resistant Type 3R enclosure
• Durable construction for indoor and outdoor installations
• Fused disconnect configuration with solid neutral

Standards and Approvals

• CSA Approved
• Service Entrance Rated
• Siemens Authentic Product

Applications

• Service entrance equipment
• Commercial power distribution systems
• Industrial disconnect applications
• Motor circuit disconnects
• HVAC equipment isolation
• Outdoor electrical installations
• Maintenance and safety lockout procedures
