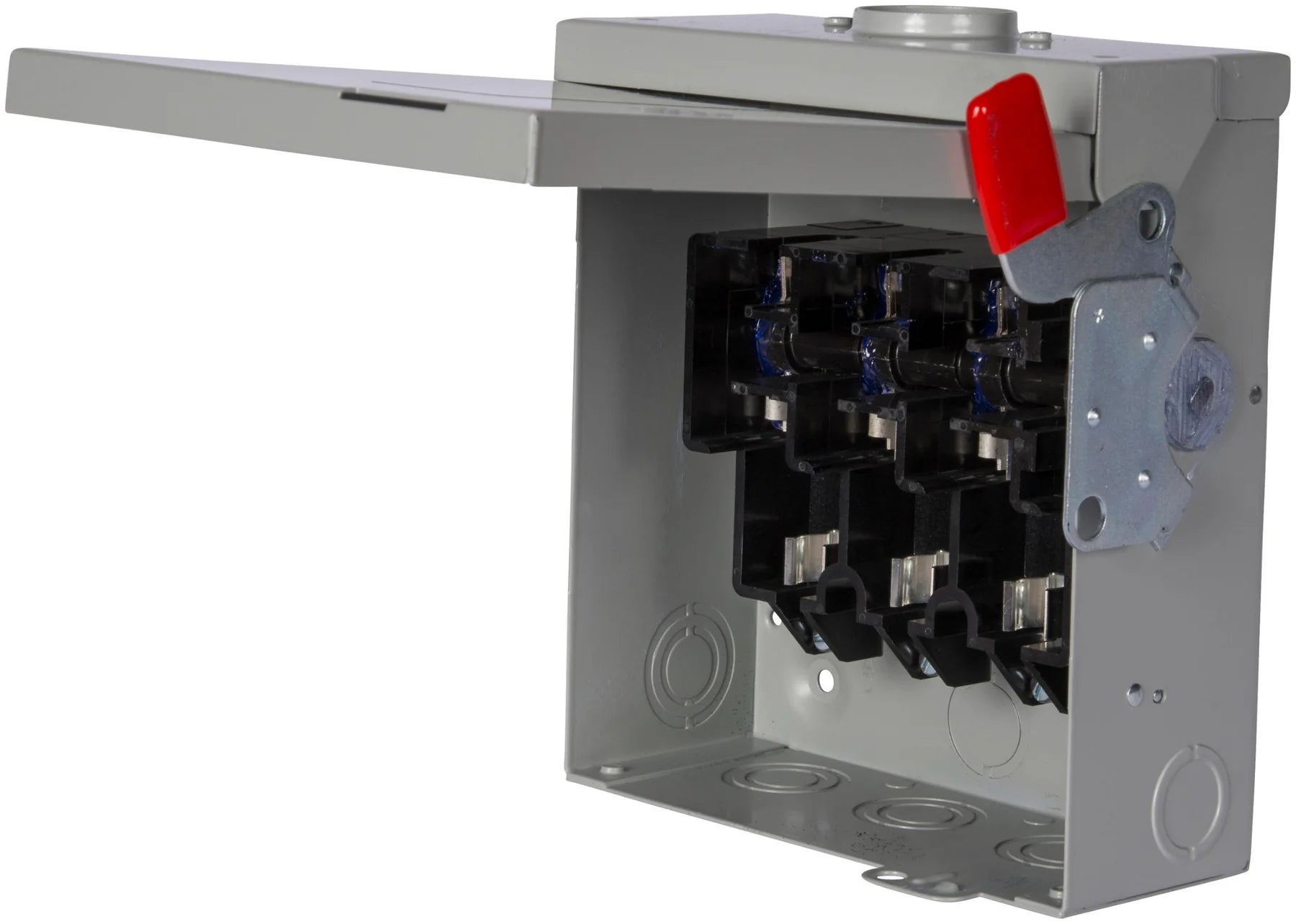

Siemens GF324N Safety Switch – VBII Series – 200A – 3 Pole – 240V – Fused General Duty Disconnect – NEMA 1 Indoor Enclosure

The Siemens GF324N is a VBII Series general-duty fused safety switch designed for safe power isolation and circuit disconnect applications in commercial, industrial, and service entrance installations. Rated at 200A and 240VAC, this 3-pole switch features a 3-fuse configuration with a solid neutral, providing dependable switching and overcurrent protection for electrical distribution systems.

Housed in a NEMA Type 1 indoor enclosure, the GF324N is intended for indoor installations and is service entrance labeled for added application flexibility. With a high short-circuit withstand rating of 100kA at 240V when properly fused, this safety switch is suitable for demanding power distribution and motor control applications.

Specifications

• Brand: Siemens / ITE
• Part Number: GF324N
• Series: VBII Series
• Type: GF
• Category: Safety Switch / Disconnect Switch
• Switch Type: General Duty Fused Safety Switch
• Enclosure Type: NEMA 1 (Indoor)

Electrical Ratings

• Current Rating: 200A
• Voltage Rating: 240VAC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Interrupting Capacity: 100kA @ 240V (with properly rated fuses)

Features

• 3-pole, 3-fuse design with solid neutral
• General-duty fused safety switch
• Service entrance labeled
• Provides reliable circuit isolation and disconnecting means
• Suitable for commercial and industrial electrical systems
• High short-circuit withstand capability when properly fused

Horsepower Ratings

• 1-Phase, 2-Wire (Standard Fuse): 15 HP
• 3-Phase, 3-Wire (Standard Fuse): 25 HP
• 3-Phase, 3-Wire (Time-Delay Fuse): 60 HP
• 250VDC: 40 HP

Construction

• NEMA Type 1 indoor enclosure
• Heavy-duty enclosed switch design
• Designed for long-term reliability in electrical distribution applications

Standards and Approvals

• CSA Approved
• Service Entrance Rated
• Siemens Authentic Product

Applications

• Commercial power distribution systems
• Industrial electrical installations
• Service entrance equipment
• Motor disconnect applications
• Equipment isolation and maintenance safety
• HVAC and machinery disconnects
