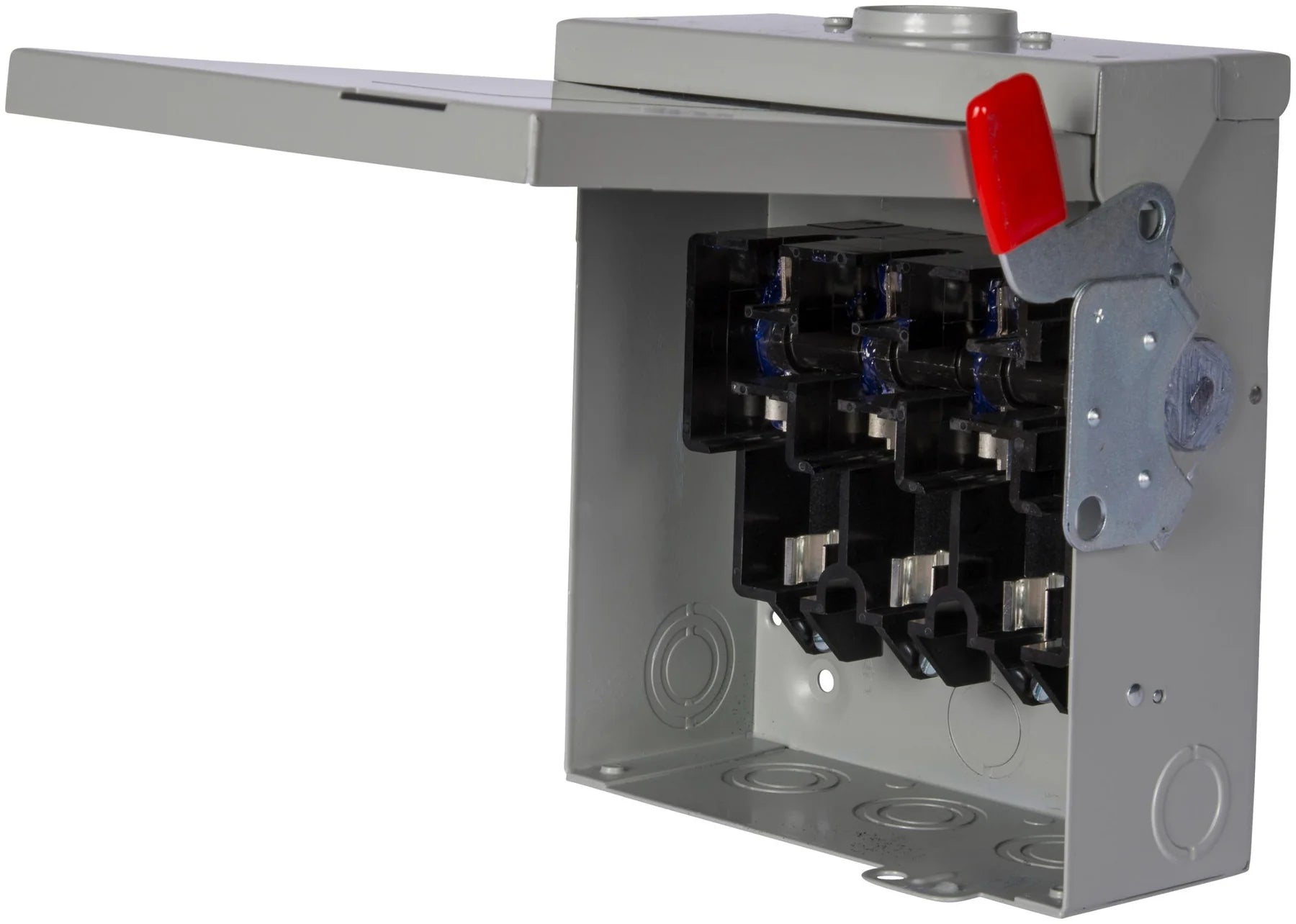

Siemens GNF324 Safety Switch – VBII Series – 200A – 3 Pole – 240VAC – Non-Fusible General Duty Disconnect – NEMA 1 Indoor Enclosure

The Siemens GNF324 is a VBII Series general-duty non-fusible safety switch designed for reliable power isolation and equipment disconnect applications in commercial and industrial electrical systems. Rated at 200A and 240VAC, this 3-pole switch provides safe manual switching without overcurrent protection, making it suitable for service entrance and motor disconnect applications.

Housed in a NEMA Type 1 indoor enclosure, the GNF324 is designed for controlled indoor environments and features a service entrance rating for flexible installation use. It supports high short-circuit withstand capability when used within properly protected electrical systems.

Specifications

• Brand: Siemens / ITE
• Part Number: GNF324
• Series: VBII Series
• Type: GNF
• Category: Safety Switch / Disconnect Switch
• Duty Rating: General Duty
• Fusibility: Non-Fusible
• Enclosure Type: NEMA 1 (Indoor)

Electrical Ratings

• Current Rating: 200A
• Voltage Rating: 240VAC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Interrupting Capacity: 100kA @ 240V

Features

• Non-fusible general-duty safety switch
• Service entrance labeled
• Suitable for motor loads
• Indoor NEMA 1 enclosure
• Manual disconnecting means for equipment isolation
• Designed for commercial and industrial electrical systems

Horsepower Ratings

• 1-Phase, 2-Wire: 15 HP
• 3-Phase, 3-Wire: 60 HP
• 250VDC: 40 HP

Construction

• NEMA Type 1 indoor steel enclosure
• Surface-mounted design
• Durable mechanical switching system

Standards and Approvals

• CSA Approved
• Siemens Authentic Product

Applications

• Commercial electrical distribution systems
• Industrial motor disconnect applications
• Service entrance installations
• HVAC equipment isolation
• Maintenance and lockout/tagout procedures
• Electrical feeder switching and isolation
