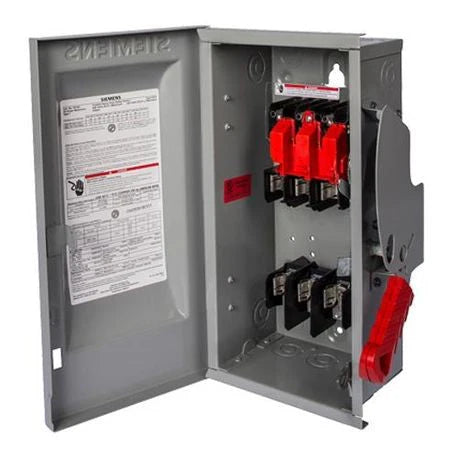

Siemens HF324NR Safety Switch – VBII Series – 200A – 3 Pole – 240VAC – Fused Heavy Duty Disconnect – NEMA 3R Outdoor Enclosure

The Siemens HF324NR is a VBII Series heavy-duty fusible safety switch designed for reliable circuit isolation and overcurrent protection in demanding commercial and industrial electrical systems. Rated at 200A and 240VAC, this 3-pole, 3-phase switch provides strong fault protection and dependable disconnect performance for high-capacity power distribution applications.

Housed in a NEMA Type 3R rainproof enclosure, the HF324NR is suitable for outdoor and indoor installations where protection against environmental exposure is required. It accepts Class R fuses, offering enhanced short-circuit protection and system reliability in critical electrical applications.

Specifications

• Brand: Siemens / ITE
• Part Number: HF324NR
• Series: VBII Series
• Type: HF
• Category: Safety Switch / Disconnect Switch
• Duty Rating: Heavy Duty
• Fusibility: Fusible (Accepts Class R Fuses)
• Enclosure Type: NEMA 3R (Outdoor Rated)

Electrical Ratings

• Current Rating: 200A
• Voltage Rating: 240VAC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Wire Configuration: 3-Phase, 4-Wire
• Interrupting Capacity: 200kA @ 240V

Features

• Heavy-duty fusible safety switch
• 3-pole, 3-phase design
• Accepts Class R fuses for enhanced protection
• High interrupting capacity for industrial fault conditions
• Suitable for outdoor installations
• Reliable manual disconnecting means for equipment safety
• Single-style configuration

Construction

• Rugged steel enclosure
• NEMA 3R weather-resistant design
• Heavy-duty industrial switching mechanism
• Built for high-capacity electrical systems

Standards and Approvals

• CSA Approved
• Siemens Authentic Product

Applications

• Industrial power distribution systems
• Outdoor electrical installations
• Motor control and machinery isolation
• Service entrance equipment
• HVAC and rooftop systems
• Maintenance and lockout/tagout procedures
• Commercial and industrial electrical infrastructure
