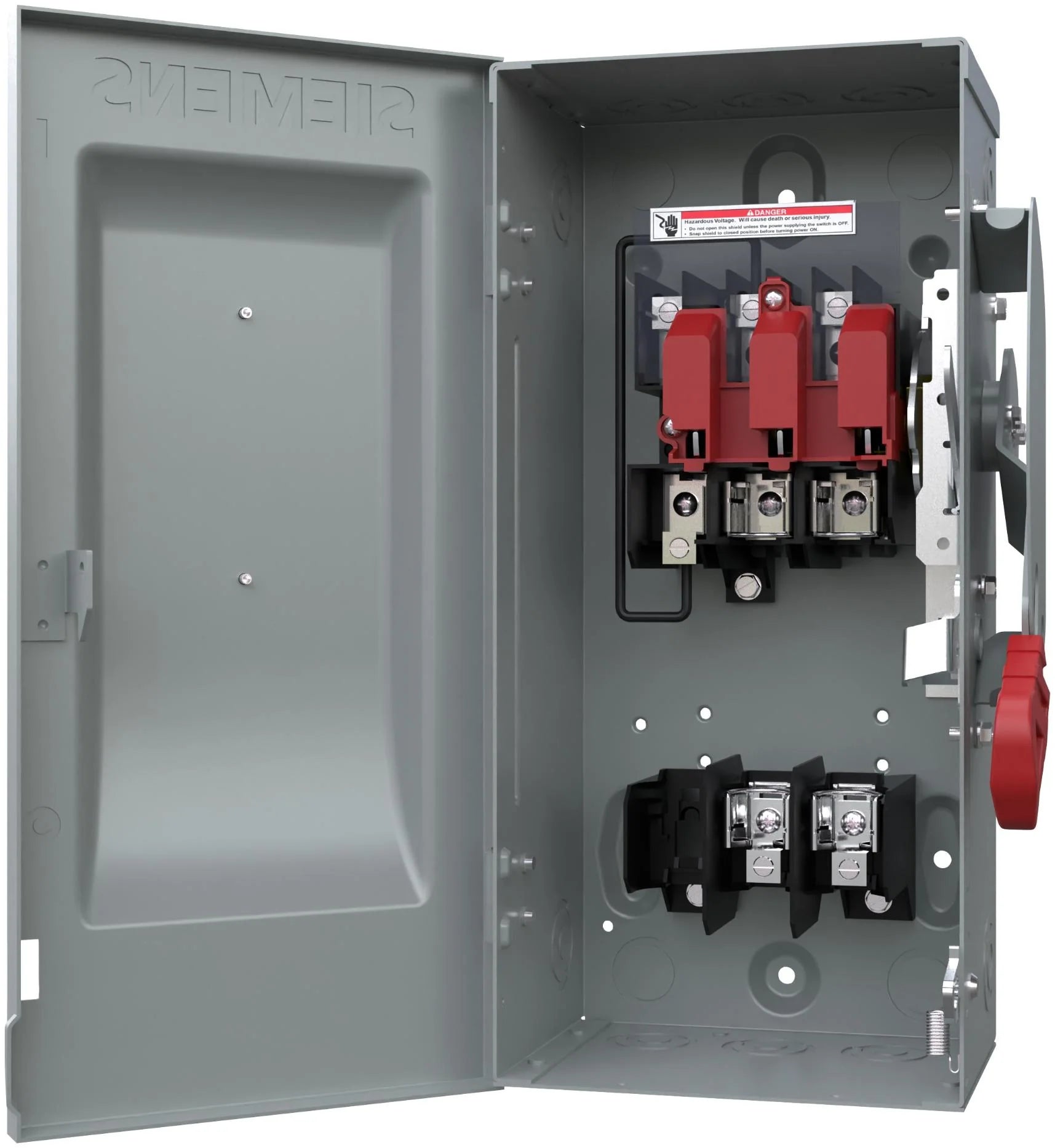

Siemens HF361 Safety Switch – VBII Series – 30A – 3 Pole – 480/600VAC – Heavy Duty Fusible Disconnect – NEMA 1 Indoor Enclosure

The Siemens HF361 is a VBII Series heavy-duty fusible safety switch designed for reliable circuit isolation and overcurrent protection in industrial and commercial electrical systems. Rated at 30A and suitable for 480/600VAC applications, this 3-pole, 3-wire switch provides dependable manual disconnect functionality using Class H/J/K/R time-delay fuses.

Built for indoor use, the HF361 is housed in a NEMA Type 1 enclosure and features a compact, heavy-duty design for straightforward installation. It is intended for equipment protection, motor disconnect applications, and general power distribution where reliable switching and fuse protection are required.

Specifications

• Brand: Siemens / ITE
• Part Number: HF361
• Alternate Part No: HF-361
• Series: VBII Series
• Type: HF
• Category: Safety Switch / Disconnect Switch
• Duty Rating: Heavy Duty
• Fusibility: Fusible
• Fuse Class: H / J / K / R Time-Delay Fuses
• Neutral: None (No Neutral)
• Enclosure Type: NEMA 1 (Indoor)

Electrical Ratings

• Current Rating: 30A
• Voltage Rating: 480 / 600VAC
• DC Rating: 250VDC
• Number of Poles: 3 Pole
• Wire Configuration: 3 Wire
• Configuration: Single Throw

Motor / Load Ratings

• 1 Phase @ 480/600VAC: 3 HP
• 3 Phase @ 480VAC: 5 HP
• 3 Phase @ 600VAC: 7.5 HP
• 250VDC: 5 HP

Features

• Heavy-duty fusible safety switch
• Compact industrial design for easy installation
• 3-pole, 3-wire configuration (no neutral)
• Accepts Class H/J/K/R time-delay fuses
• Reliable manual disconnecting means
• Indoor NEMA 1 enclosure
• Suitable for motor and equipment protection

Construction

• Steel enclosure (NEMA 1 rated)
• Heavy-duty switching mechanism
• Compact industrial form factor
• Designed for long service life in indoor environments

Standards and Approvals

• UL Listed
• Siemens / ITE Authentic Product

Applications

• Motor disconnect and protection
• Industrial machinery isolation
• Commercial electrical distribution
• HVAC equipment disconnects
• Maintenance and lockout/tagout procedures
• Indoor power control systems
