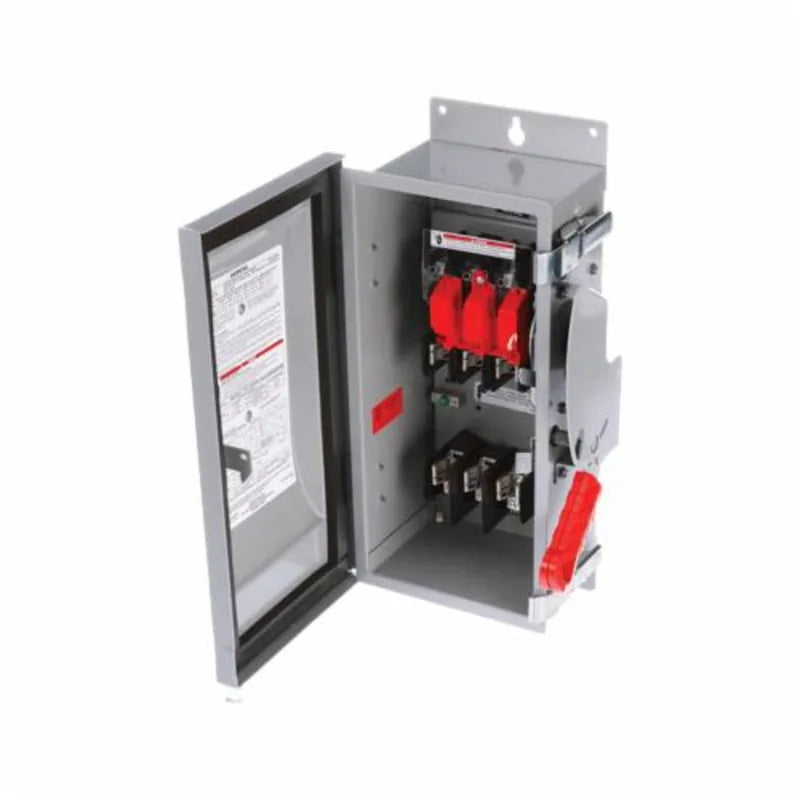

Siemens HF361J Safety Switch – VBII Series – 30A – 3 Pole – 600VAC – Heavy Duty Fusible Disconnect – NEMA 12 Industrial Enclosure

The Siemens HF361J is a VBII Series heavy-duty fusible safety switch designed for reliable circuit isolation and overcurrent protection in industrial environments. Rated at 30A and 600VAC, this 3-pole, 3-phase switch provides dependable switching performance and high fault protection using Class H/J/K/R time-delay fuses.

Housed in a rugged NEMA Type 12 industrial enclosure, the HF361J is built for indoor applications where protection against dust, dirt, and non-corrosive liquids is required. Its heavy-duty construction ensures safe operation in demanding electrical distribution and motor control systems.

Specifications

• Brand: Siemens / ITE
• Part Number: HF361J
• Series: VBII Series
• Type: HF
• Category: Safety Switch / Disconnect Switch
• Duty Rating: Heavy Duty
• Fusibility: Fusible
• Fuse Class: H / J / K / R Time-Delay Fuses
• Enclosure Type: NEMA 12 (Industrial Indoor)

Electrical Ratings

• Current Rating: 30A
• Voltage Rating: 600VAC
• Frequency: 60 Hz
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Wire Configuration: 3 Wire
• Short Circuit Current Rating: 200kA

Motor / Load Ratings

• Up to 7.5 HP @ rated voltage (as specified)

Features

• Heavy-duty fusible safety switch design
• 3-pole, 3-phase configuration
• NEMA 12 industrial enclosure for enhanced protection
• High short-circuit withstand capability (200kA SCCR)
• Surface-mounted steel enclosure
• Insulated construction for safety
• Reliable manual disconnecting means
• Accepts Class H/J/K/R time-delay fuses

Construction

• Rugged steel NEMA 12 enclosure
• Heavy-duty industrial switching mechanism
• Surface-mounted installation design
• Built for demanding indoor environments

Standards and Approvals

• UL Listed
• Siemens Authentic Product

Applications

• Industrial motor control and protection
• Manufacturing facilities
• Heavy-duty equipment isolation
• Power distribution systems
• HVAC and mechanical systems
• Maintenance lockout/tagout procedures
• Indoor industrial electrical installations
