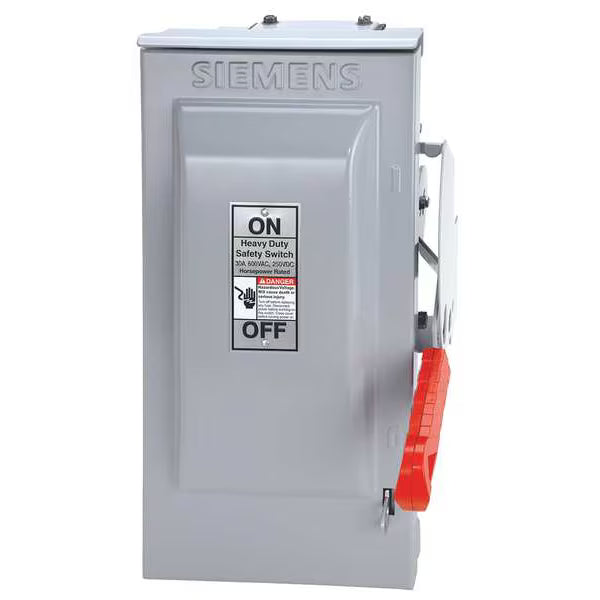

Siemens HF361R – 3-Pole 30A 600V Fusible Heavy Duty Safety Switch / Disconnect, NEMA 3R

Product Title

Siemens HF361R – 3-Pole 30A 600V Fusible Heavy Duty Safety Switch / Disconnect, NEMA 3R

Product Description

The Siemens HF361R is a 3‑pole, 30 Amp, 600 V AC fusible heavy duty safety switch / disconnect designed to provide reliable manual circuit isolation and protection in commercial and industrial electrical systems. Built for rugged service, this safety switch features a NEMA 3R outdoor‑rated enclosure and a visible blade, quick‑make/quick‑break operating mechanism for dependable performance. It is ideal for service entrance or load disconnect applications where safe electrical isolation is required.

Key Features

• Poles: 3

• Amperage: 30 A

• Voltage: 600 V AC (also suitable for 480 V AC and 250 V DC use)

• Type: Fusible Heavy Duty Safety Switch / Disconnect

• Enclosed safety switch with visible blade construction

• NEMA 3R rain‑tight enclosure for outdoor use

• Quick‑make / quick‑break mechanism for positive ON/OFF operation

• Padlockable handle for added safety

• Suitable for commercial and industrial equipment isolation

• Rated for horsepower loads depending on application and fuse selection

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: HF361R

• Number of Wires: 3

• Contact Form: TPST (Three‑pole single throw)

• Frequency Rating: 60 Hz

• Enclosure Type: NEMA 3R

• Short Circuit Rating: 200 kA @ 600 V AC

• Operating Temperature: −29 °C to 85 °C

• Mounting Type: Surface mount

• Fuse Type: Class H/J/R time‑delay (fusible)

Product Data

• UPC / GTIN: 783643151277

• Designed for manual disconnection and safe isolation of electrical circuits

• Ideal for service entrance, feeder, or load disconnect applications

• Built to Siemens heavy-duty standards with robust steel construction

• UL 98 Listed for safety switch applications (fusible)
