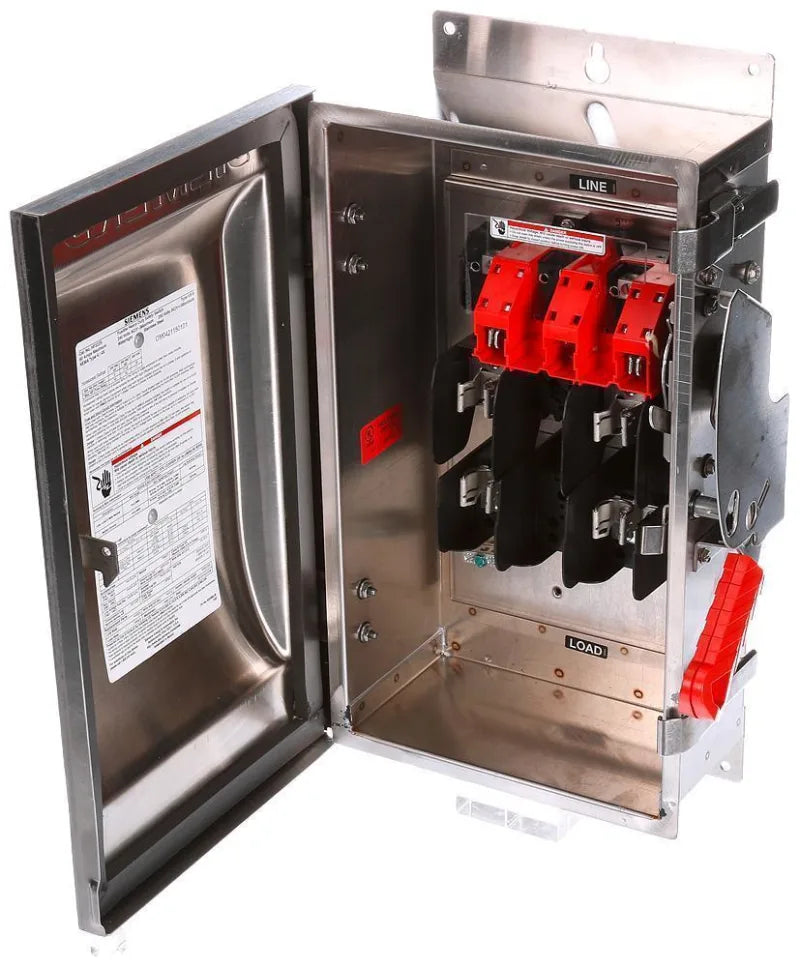

Siemens HF361SS Safety Switch – VBII Series – 30A – 3 Pole – 600VAC – Heavy Duty Fusible Disconnect – NEMA 4X 316 Stainless Steel Enclosure

The Siemens HF361SS is a VBII Series heavy-duty fusible safety switch engineered for reliable circuit isolation and overcurrent protection in harsh and corrosive environments. Rated at 30A and 600VAC, this 3-pole, 3-phase switch provides dependable disconnect performance using Class H/J/K/R time-delay fuses for industrial-grade fault protection.

Housed in a rugged NEMA Type 4X enclosure constructed from 316 stainless steel, the HF361SS is designed for washdown, coastal, chemical, and other highly corrosive environments. Its insulated construction and high short-circuit rating make it suitable for demanding industrial applications where maximum durability and safety are required.

Specifications

• Brand: Siemens / ITE
• Part Number: HF361SS
• Series: VBII Series
• Type: HF
• Category: Safety Switch / Disconnect Switch
• Duty Rating: Heavy Duty
• Fusibility: Fusible
• Fuse Class: H / J / K / R Time-Delay Fuses
• Enclosure Type: NEMA 4X (316 Stainless Steel, Corrosion Resistant)

Electrical Ratings

• Current Rating: 30A
• Voltage Rating: 600VAC
• Frequency: 60 Hz
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Wire Configuration: 3 Wire
• Short Circuit Current Rating: 200kA

Motor / Load Ratings

• Up to 7.5 HP @ rated voltage (as specified)

Features

• Heavy-duty fusible safety switch design
• 3-pole, 3-phase configuration
• NEMA 4X 316 stainless steel enclosure
• Excellent corrosion resistance for harsh environments
• High short-circuit withstand capability (200kA SCCR)
• Surface-mounted industrial design
• Reliable manual disconnecting means
• Insulated construction for enhanced safety

Construction

• 316 stainless steel enclosure (NEMA 4X rated)
• Heavy-duty industrial switching mechanism
• Surface-mounted installation
• Designed for extreme environmental conditions

Standards and Approvals

• UL Listed
• Siemens / ITE Authentic Product

Applications

• Food and beverage processing facilities
• Chemical and petrochemical plants
• Marine and offshore environments
• Wastewater treatment facilities
• Outdoor corrosive industrial installations
• Washdown areas requiring high sanitation standards
• Heavy-duty motor and equipment disconnect applications
