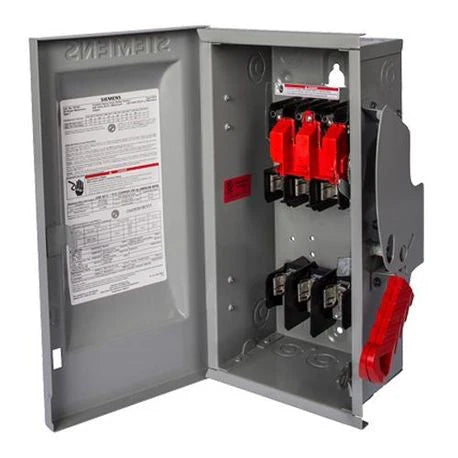

Siemens HF362 Safety Switch – VBII Series – 60A – 3 Pole – 600VAC – Heavy Duty Fusible Disconnect – NEMA 1 Indoor Enclosure

The Siemens HF362 is a VBII Series heavy-duty fusible safety switch designed for dependable circuit isolation and overcurrent protection in industrial and commercial electrical systems. Rated at 60A and 600VAC, this 3-pole, 3-phase switch delivers reliable switching performance using Class H/J/K/R time-delay fuses for enhanced fault protection.

Housed in a NEMA Type 1 indoor enclosure, the HF362 is built for controlled environments where safe and durable electrical disconnecting capability is required. Its heavy-duty construction ensures stable performance in motor control, power distribution, and equipment isolation applications.

Specifications

• Brand: Siemens / ITE
• Part Number: HF362
• Series: VBII Series
• Type: HF
• Category: Safety Switch / Disconnect Switch
• Duty Rating: Heavy Duty
• Fusibility: Fusible
• Fuse Class: H / J / K / R Time-Delay Fuses
• Enclosure Type: NEMA 1 (Indoor)

Electrical Ratings

• Current Rating: 60A
• Voltage Rating: 600VAC
• Frequency: 60 Hz
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Wire Configuration: 3 Wire
• Short Circuit Current Rating: 200kA

Motor / Load Ratings

• 3 Phase @ 600VAC: up to 25 HP
• 1 Phase @ 600VAC: up to 15 HP

Features

• Heavy-duty fusible safety switch
• 3-pole, 3-phase configuration
• High short-circuit withstand capability (200kA SCCR)
• Accepts Class H/J/K/R time-delay fuses
• Reliable manual disconnecting means
• Steel NEMA 1 enclosure for indoor use
• Suitable for motor and equipment protection

Construction

• Rugged steel enclosure (NEMA 1 rated)
• Heavy-duty industrial switching mechanism
• Non-insulated industrial design
• Surface-mounted installation

Standards and Approvals

• UL Listed
• Siemens / ITE Authentic Product

Applications

• Industrial motor control and protection
• Commercial power distribution systems
• Equipment isolation and maintenance
• HVAC and mechanical systems
• Manufacturing facilities
• Lockout/Tagout (LOTO) procedures
• Indoor electrical installations
