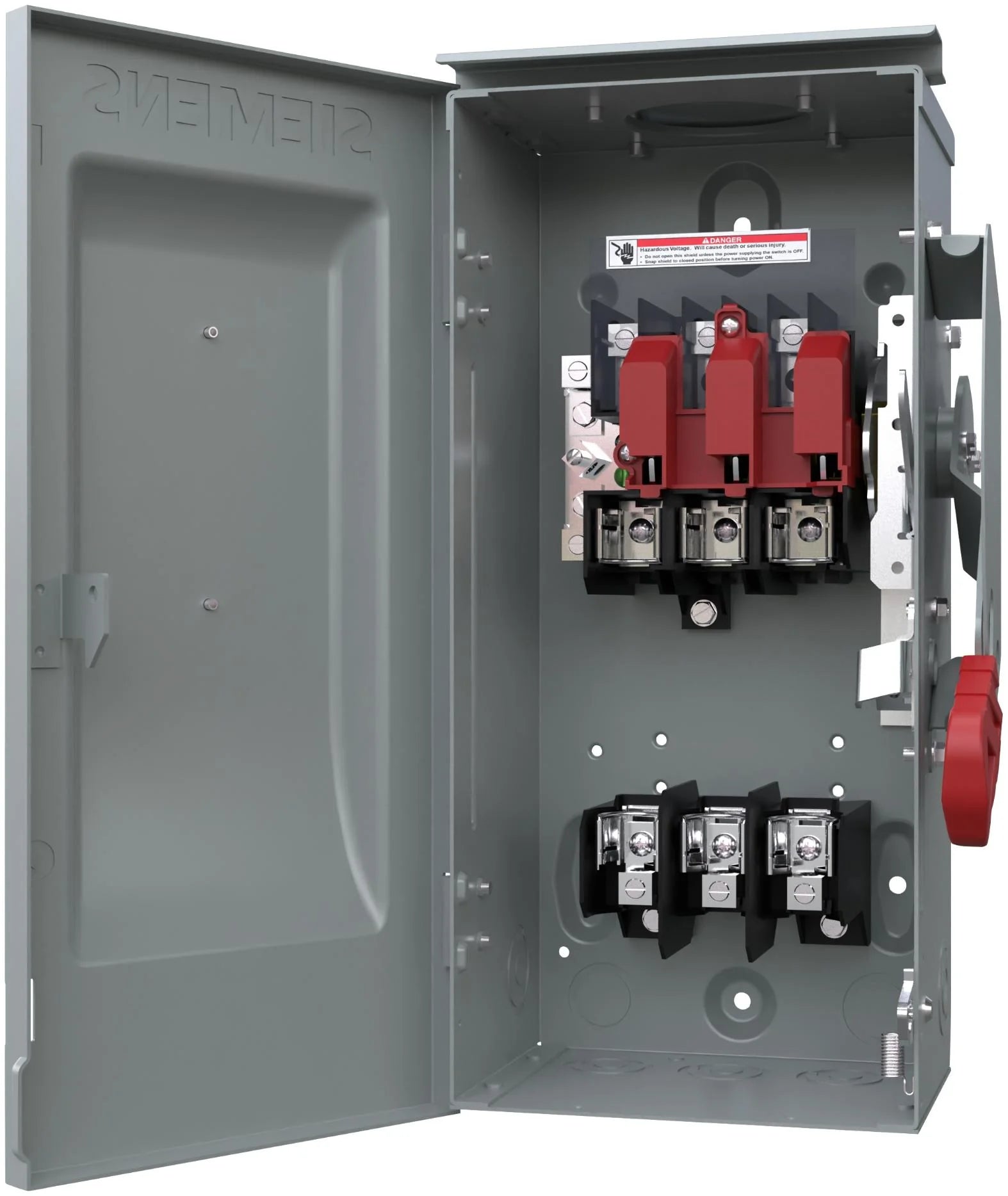

Siemens HF362R Safety Switch – VBII Series – 60A – 3 Pole – 600VAC – Heavy Duty Fusible Disconnect – NEMA 3R Outdoor Enclosure

The Siemens HF362R is a VBII Series heavy-duty fusible safety switch designed for reliable circuit isolation and overcurrent protection in industrial and commercial electrical systems. Rated at 60A and 600VAC, this 3-pole, 3-phase switch provides dependable switching performance and high fault protection for demanding power distribution applications.

Housed in a NEMA Type 3R rainproof enclosure, the HF362R is suitable for outdoor and indoor installations where protection against environmental exposure is required. Its heavy-duty construction ensures safe operation in motor control, service entrance, and equipment isolation applications.

Specifications

• Brand: Siemens / ITE
• Part Number: HF362R
• Series: VBII Series
• Type: HF
• Category: Safety Switch / Disconnect Switch
• Duty Rating: Heavy Duty
• Fusibility: Fusible
• Enclosure Type: NEMA 3R (Outdoor Rated)

Electrical Ratings

• Current Rating: 60A
• Voltage Rating: 600VAC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Wire Configuration: 3 Wire
• Interrupting Capacity: 200kA @ 600V

Features

• Heavy-duty fusible safety switch
• 3-pole, 3-phase configuration
• High short-circuit withstand capability (200kA SCCR)
• Weather-resistant NEMA 3R enclosure
• Reliable manual disconnecting means
• Suitable for industrial and commercial power systems
• Designed for equipment protection and isolation

Construction

• Rugged steel enclosure (NEMA 3R rated)
• Heavy-duty industrial switching mechanism
• Outdoor-rated weather protection
• Built for long-term durability in harsh environments

Standards and Approvals

• CSA Approved
• Siemens / ITE Authentic Product

Applications

• Industrial power distribution systems
• Outdoor electrical installations
• Motor control and equipment isolation
• HVAC and mechanical systems
• Service entrance equipment
• Maintenance and lockout/tagout procedures
• Commercial and industrial facilities
