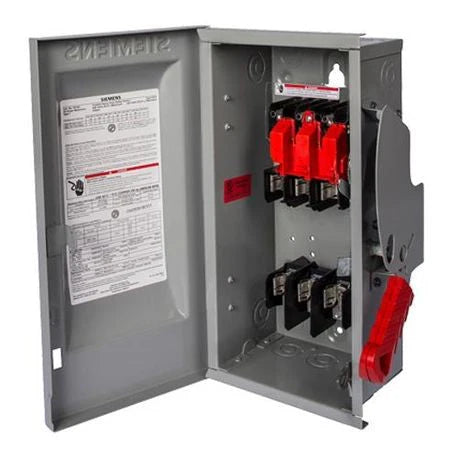

Siemens HF364NR Safety Switch – VBII Series – 200A – 3 Pole – 600VAC – Heavy Duty Fusible Disconnect with Solid Neutral – NEMA 3R Outdoor Enclosure

The Siemens HF364NR is a VBII Series heavy-duty fusible safety switch designed for reliable power isolation, equipment protection, and service disconnect applications in commercial and industrial electrical systems. Rated at 200A and 600VAC, this 3-pole switch features a 4-wire configuration with a solid neutral, providing dependable switching performance and enhanced protection when used with properly rated fuses.

Constructed with a rugged NEMA Type 3R outdoor enclosure, the HF364NR is engineered to withstand outdoor environmental conditions while maintaining safe and reliable operation. Its high 200kA short-circuit current rating, heavy-duty single-throw mechanism, and durable steel construction make it an ideal choice for demanding power distribution and motor control applications.

Specifications

• Brand: Siemens
• Part Number: HF364NR
• Series: VBII Series
• Type: VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw
• Category: Safety Switch / Disconnect Switch
• Duty Rating: Heavy Duty
• Fusibility: Fusible
• Contact Configuration: 3PST / TPST
• Enclosure Type: NEMA 3R (Outdoor Rated)
• Material: Steel
• Insulation Type: Non-Insulated
• Mounting Type: Surface

Electrical Ratings

• Current Rating: 200A
• Voltage Rating: 600VAC
• Frequency Rating: 60 Hz
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Number of Wires: 4
• Short Circuit Current Rating: 200kA

Motor / Load Ratings

• 50 HP
• 60 HP

Features

• Heavy-duty fusible safety switch
• 3-pole, 4-wire configuration with solid neutral
• High 200kA short-circuit current rating
• NEMA 3R rainproof enclosure for outdoor installations
• Reliable single-throw operating mechanism
• Mechanical lug terminal connections
• Surface-mounted design
• Suitable for commercial and industrial power distribution systems
• Designed for equipment isolation and maintenance safety procedures

Construction

• Heavy-duty steel enclosure
• NEMA 3R weather-resistant design
• Surface-mounted configuration
• Industrial-grade switching mechanism
• Built for long-term durability and dependable performance

Physical Specifications

• Dimensions: 29.9 in H × 15.94 in W × 12.33 in D
• Operating Temperature: -29°C to 85°C

Standards and Approvals

• UL Listed
• Siemens Authentic Product

Applications

• Outdoor commercial power distribution systems
• Industrial electrical installations
• Service entrance equipment
• Motor disconnect and isolation applications
• HVAC and mechanical equipment disconnects
• Utility and infrastructure facilities
• Equipment maintenance and lockout/tagout (LOTO) procedures
• Electrical feeder and branch circuit disconnecting means
