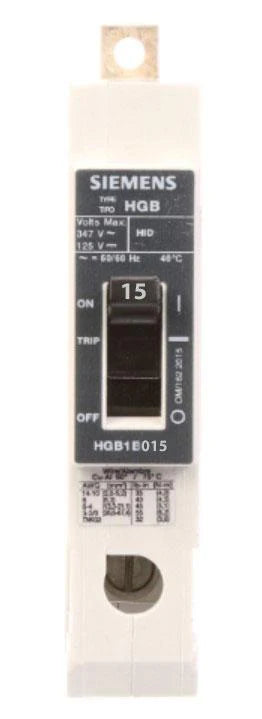

Siemens HGB1B015B Molded Case Circuit Breaker – VL Series – 15A – 1 Pole – 347V – Bolt-On – Thermal Magnetic Protection
Couldn't load pickup availability
Ask an expert
The Siemens HGB1B015B is a VL Series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical distribution systems. Rated at 15A and up to 347V, this 1-pole, bolt-on circuit breaker provides dependable circuit interruption and protection using a thermal-magnetic trip unit with long-time and instantaneous functions.
Engineered for panelboard applications, the HGB frame delivers high interrupting performance and compact design, making it suitable for space-constrained electrical installations requiring dependable protection and fast response under fault conditions.
Specifications
- Brand: Siemens / ITE
- Part Number: HGB1B015B
- Series: VL Series
- Type: HGB Frame Molded Case Circuit Breaker
- Category: Molded Case / 1-Pole
- Duty Rating: Standard industrial duty
- Protection Type: Thermal Magnetic
Electrical Ratings
- Current Rating: 15A
- Voltage Rating: 347V AC
- Number of Poles: 1 Pole
- Phase: 1 Phase
- Frequency: 60 Hz
Interrupting Capacity
- 35kA @ 277V
- 14kA @ 347V
Functions
- LI – Long-Time and Instantaneous Protection
- Thermal-Magnetic Trip Unit
- Fast fault interruption capability
Construction
- Bolt-on connection type
- Compact molded case design
- Panelboard-mounted configuration
- Durable industrial-grade housing
Physical Specifications
- Dimensions: 4.99" H × 0.97" W × 2.87" D
- Weight: 0.85 lbs
Applications
- Commercial electrical panelboards
- Industrial control panels
- Branch circuit protection
- Lighting and small load circuits
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
