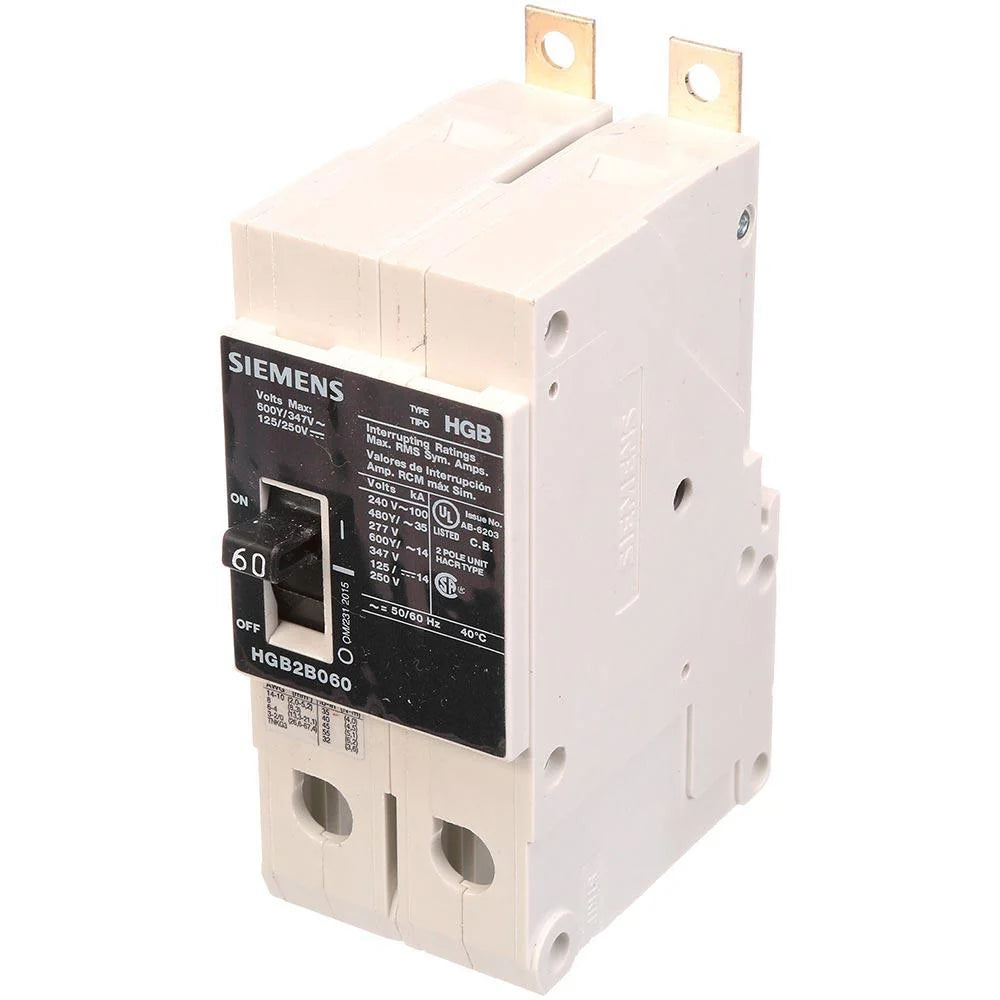

Siemens HGB2B060B Molded Case Circuit Breaker – VL Series – 60A – 2 Pole – 600V – Bolt-On – Thermal Magnetic – High Interrupting Capacity

The Siemens HGB2B060B is a VL Series molded case circuit breaker designed to provide dependable overcurrent protection for commercial and industrial electrical distribution systems. Rated at 60A and 600V AC, this 2-pole breaker features a thermal-magnetic trip unit with long-time overload and instantaneous short-circuit protection, ensuring reliable operation and enhanced circuit safety.

Part of the Siemens HGB frame family, the HGB2B060B offers high interrupting capacity, bolt-on installation, and panelboard mounting compatibility. Suitable for reverse-feed applications and equipped with load-side lug terminals, this breaker is ideal for protecting branch circuits, feeders, and electrical equipment in demanding low-voltage distribution systems.

Specifications

• Brand: Siemens / ITE
• Part Number: HGB2B060B
• Series: VL Series
• Type: HGB Frame Molded Case Circuit Breaker
• Category: Molded Case Circuit Breaker / 2-Pole
• Connection Type: Bolt-On
• Protection Type: Thermal Magnetic

Electrical Ratings

• Current Rating: 60A
• Voltage Rating: 600V AC
• Number of Poles: 2 Pole
• Phase: 1 Phase

Interrupting Capacity

• 100kA @ 240V

Functions

• LI – Long-Time and Instantaneous Protection
• Thermal-Magnetic Trip Unit
• High Interrupting Capacity Design
• Suitable for Reverse Feed Applications

Connections

• Bolt-On Mounting Configuration
• Load-Side Lug Terminals Included
• Designed for Panelboard Installation

Construction

• Compact molded case design
• Durable industrial-grade housing
• High-performance HGB frame construction
• Engineered for long-term reliability and service life

Physical Specifications

• Dimensions (H × W × D): 5.4" × 2" × 2.8"
• Weight: 1.85 lbs

Standards and Approvals

• CSA Approved

Applications

• Commercial electrical panelboards
• Industrial power distribution systems
• Branch circuit and feeder protection
• Lighting and control circuits
• HVAC equipment protection
• Motor and auxiliary equipment circuits
• Reverse-feed electrical installations
• General low-voltage distribution systems
