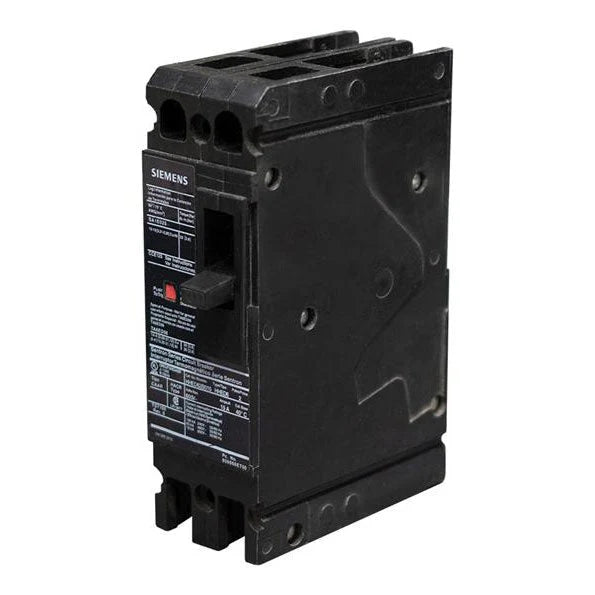

Siemens HHED62B100 Molded Case Circuit Breaker – ED Frame – 100A – 2 Pole – 600VAC – Bolt-On – Thermal Magnetic

The Siemens HHED62B100 is an ED-frame molded case circuit breaker designed for industrial and commercial power distribution systems requiring high-performance protection. Rated at 100A and up to 600VAC, this 2-pole breaker uses thermal-magnetic trip technology to provide reliable long-time overload and instantaneous short-circuit protection.

Built for use in Siemens Sentron panelboards, switchboards, and compatible enclosures, the HHED62B100 delivers dependable performance in high fault current environments. Its bolt-on design and compact ED-frame construction make it suitable for efficient installation and long-term operational reliability.

Specifications

• Brand: Siemens
• Part Number: HHED62B100
• Series: HHED6 (ED Frame)
• Type: Molded Case Circuit Breaker
• Category: ED Frame / 2-Pole
• Connection Type: Bolt-On
• Trip Technology: Thermal Magnetic
• Trip Function: LI (Long-Time, Instantaneous)

Electrical Ratings

• Current Rating: 100A
• Voltage Rating: 600VAC
• Number of Poles: 2 Pole
• Phase: 1 Phase

Functions

• Long-Time and Instantaneous Protection (LI)
• Fixed thermal and magnetic trip settings
• High fault current protection capability

Construction

• ED-frame molded case design
• Bolt-on mounting style
• Designed for Sentron panelboards and switchboards
• Durable industrial-grade housing

Applications

• Commercial electrical distribution systems
• Industrial panelboards and switchboards
• Feeder and branch circuit protection
• Motor and HVAC equipment protection
• High-load electrical distribution circuits
