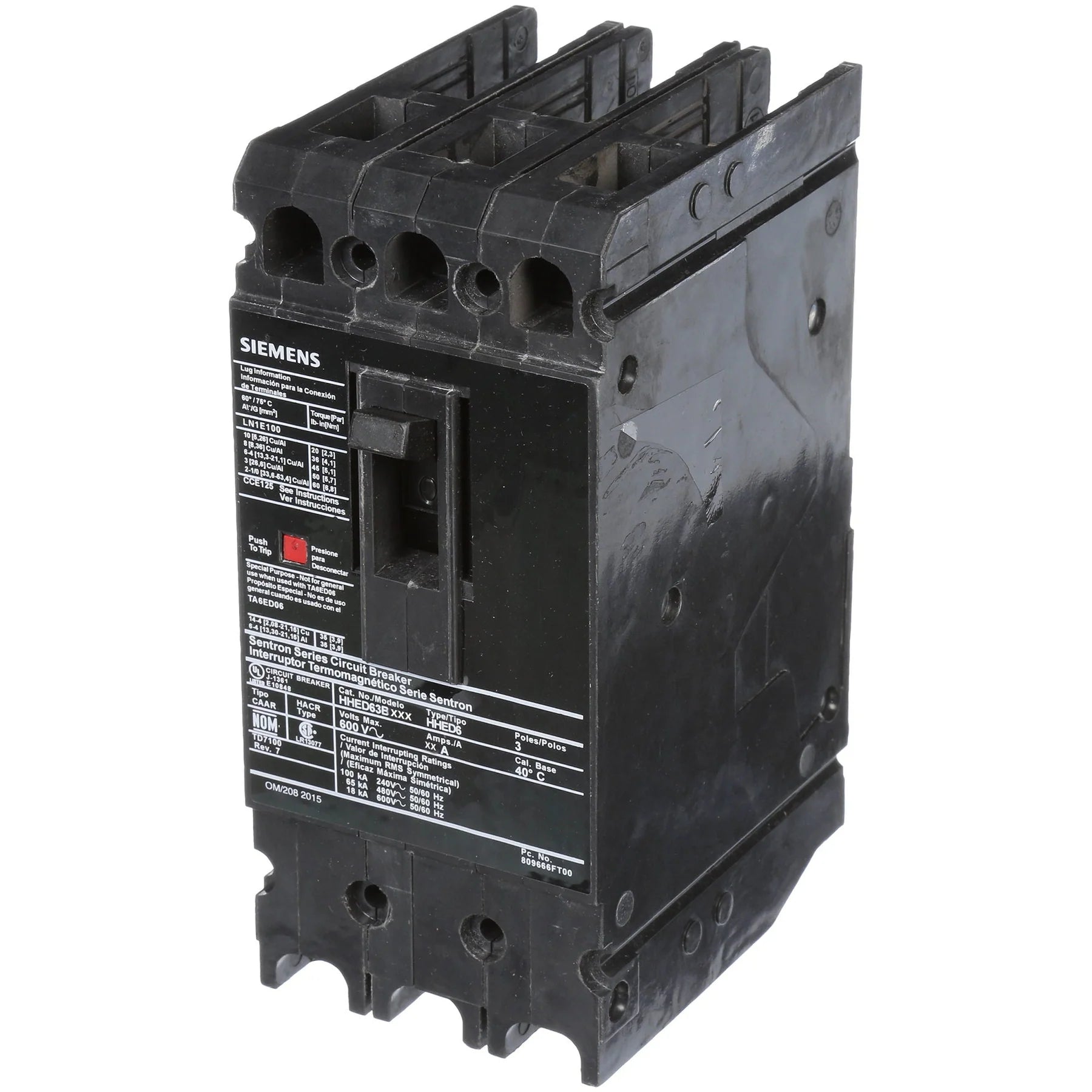

Siemens HHED63B015A Molded Case Circuit Breaker – Sentron Series – 15A – 3 Pole – 600V – Bolt-On – Thermal Magnetic – High Interrupting Capacity

The Siemens HHED63B015A is a Sentron Series molded case circuit breaker designed for industrial-grade power distribution and protection. Rated at 15A and 600V, this 3-pole breaker provides reliable thermal-magnetic protection with long-time overload and instantaneous short-circuit tripping functions to ensure safe and stable electrical system operation.

Built for Siemens Sentron panelboards and switchboards, this HHED frame breaker delivers extra high interrupting capacity performance for demanding electrical environments. Its bolt-on construction and load-side lug configuration ensure secure installation and dependable connectivity in commercial and industrial applications.

Specifications

• Brand: Siemens / ITE
• Part Number: HHED63B015A
• Series: Sentron (HHED Frame)
• Type: Molded Case Circuit Breaker
• Category: 3-Pole Molded Case Circuit Breaker
• Connection Type: Bolt-On
• Trip Technology: Thermal Magnetic
• Trip Function: LI (Long-Time and Instantaneous)

Electrical Ratings

• Current Rating: 15A
• Voltage Rating: 600V AC
• Number of Poles: 3 Pole
• Phase: 3 Phase

Interrupting Capacity

• 65kA @ 480V
• 16kA @ 600V

Construction

• Sentron HHED frame design
• Bolt-on mounting style
• Load-side lug terminals included
• Designed for panelboard and switchboard applications
• Industrial-grade molded case construction

Physical Specifications

• Dimensions (H × W × D): 6.53" × 3" × 3.92"
• Weight: 8.92 lbs

Functions

• LI – Long-Time and Instantaneous Protection
• Thermal-magnetic fixed trip settings
• High interrupting capacity design
• Reliable fault protection performance

Standards and Approvals

• CSA Approved

Applications

• Industrial power distribution systems
• Commercial panelboards and switchboards
• Branch circuit protection
• Motor and equipment protection
• HVAC and control systems
• High fault current electrical environments
