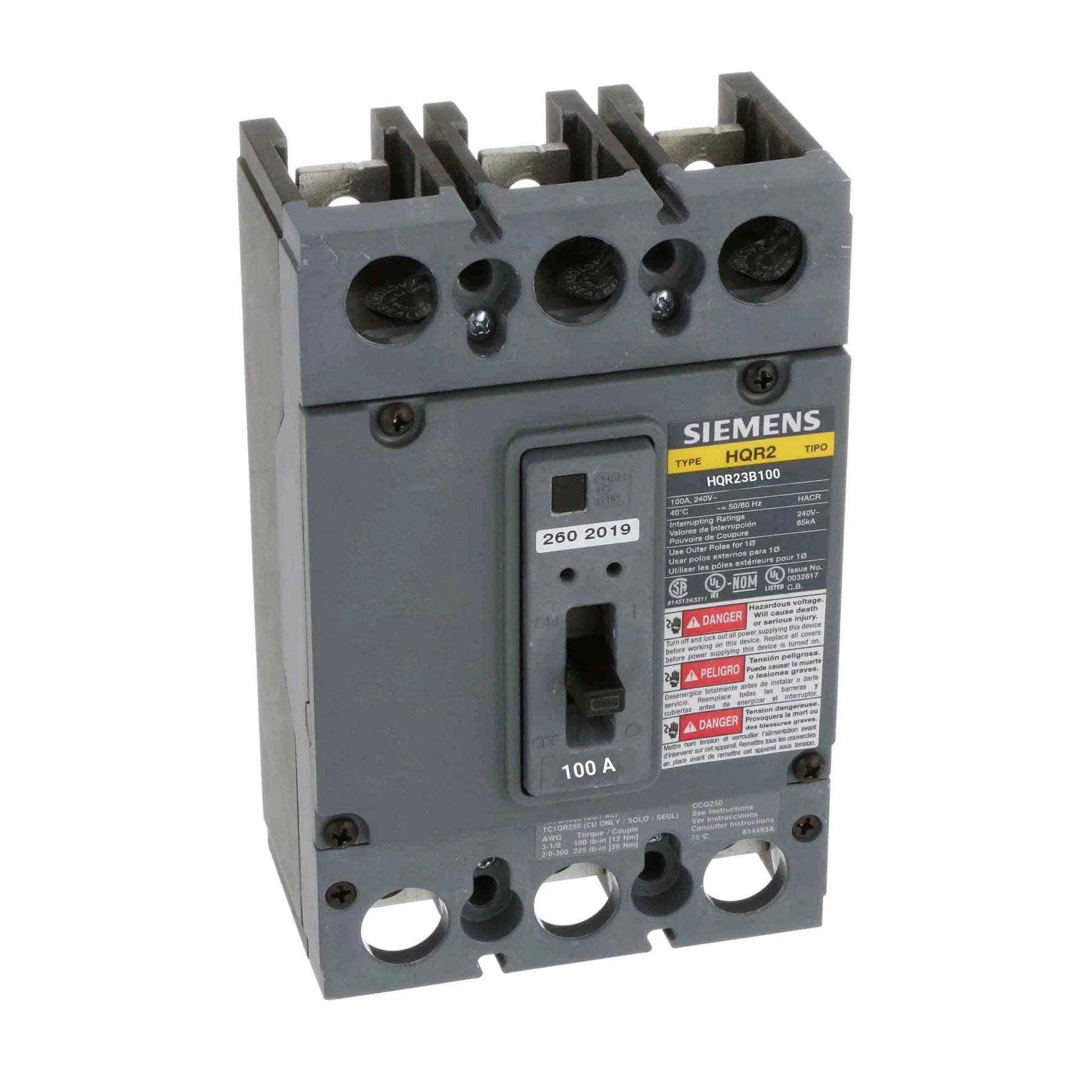

Siemens HQR23B100 Circuit Breaker – QR Series – 100A – 3 Pole – 240VAC – Thermal Magnetic – Bolt-On

The Siemens HQR23B100 is a QR Series low-voltage molded case circuit breaker designed to provide reliable overload and short-circuit protection for commercial, industrial, and power distribution applications. Rated at 100A and 240VAC, this 3-pole breaker is ideal for three-phase electrical systems requiring dependable circuit protection and high interrupting performance.

Equipped with a thermal-magnetic trip unit featuring Long-Time and Instantaneous (LI) protection functions, the HQR23B100 delivers effective protection against sustained overload conditions and high-level fault currents. Its high interrupting capacity of 65kA at 240VAC enables safe interruption of substantial short-circuit currents in demanding electrical installations.

Built on the Siemens QR frame standard 40°C platform, this breaker utilizes a secure bolt-on mounting configuration and is supplied without lugs installed, providing flexibility for field-selected terminal connections based on application requirements.

Specifications

• Brand: Siemens
• Part Number: HQR23B100
• Series: QR Series
• Type: HQR2 Molded Case Circuit Breaker
• Category: Molded Case Circuit Breaker
• Mounting Type: Bolt-On
• Frame Type: QR Frame Standard 40°C Breaker
• Protection Type: Thermal Magnetic
• Trip Unit: Fixed, Non-Interchangeable
• Special Features: No Lugs Installed

Electrical Ratings

• Current Rating: 100A
• Voltage Rating: 240VAC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Interrupting Capacity: 65kA @ 240VAC
• Trip Functions: LI – Long-Time and Instantaneous

Construction

• Low-voltage molded case design
• QR frame construction
• Bolt-on mounting configuration
• Thermal-magnetic trip mechanism
• No lugs installed for wiring flexibility
• Rugged industrial-grade housing
• Designed for high fault-current applications

Functions

• Overload protection
• Short-circuit protection
• Long-time delay protection
• Instantaneous fault protection
• Circuit switching and isolation

Dimensions

• Height: 4.331 in
• Width: 7.087 in
• Depth: 3.937 in
• Weight: 4.52 lbs

Standards

• CSA Approved

Applications

• Commercial power distribution systems
• Industrial electrical distribution equipment
• Panelboards and switchboards
• Three-phase branch circuit protection
• Equipment and feeder protection
• High fault-current installations
