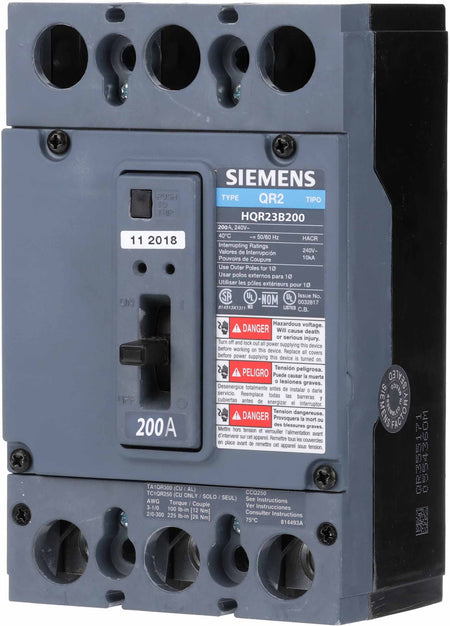

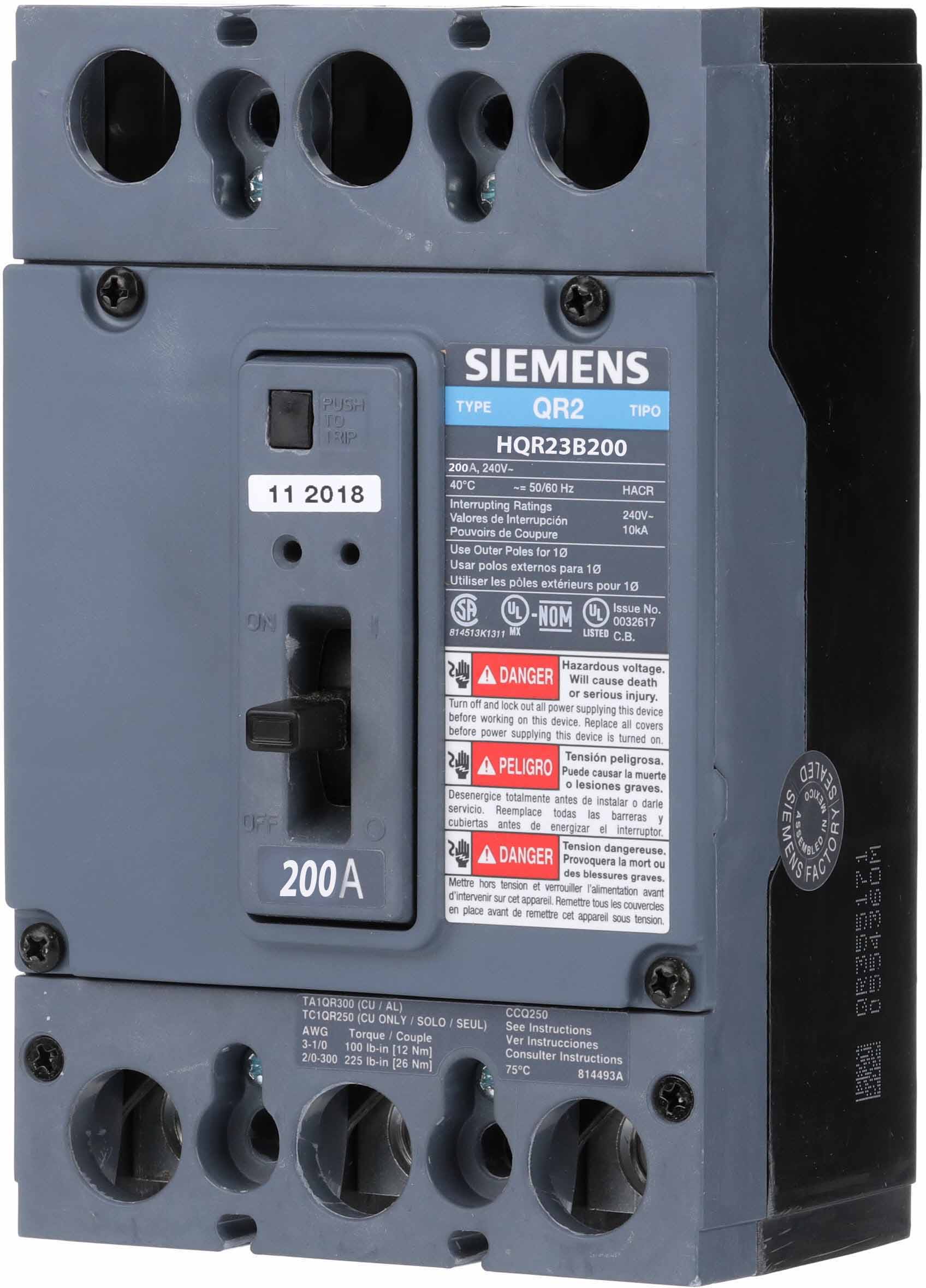

Siemens HQR23B200 Circuit Breaker – QR Series – 200A – 3 Pole – 240VAC – Thermal Magnetic – Bolt-On

The Siemens HQR23B200 is a QR Series low-voltage molded case circuit breaker designed to deliver reliable overload and short-circuit protection in commercial, industrial, and power distribution systems. Rated at 200A and 240VAC, this 3-pole breaker is intended for three-phase applications requiring dependable circuit protection and consistent performance under high electrical loads.

Featuring a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection functions, the HQR23B200 ensures effective protection against both sustained overload conditions and high-level fault currents. With a high interrupting capacity of 65kA at 240VAC, it is capable of safely clearing significant short-circuit events in demanding environments.

Built on Siemens QR frame standard 40°C construction, this breaker uses a bolt-on mounting design for secure installation. It is supplied in a “no lugs installed” configuration, allowing flexibility in selecting appropriate terminal lugs based on application requirements.

Specifications

• Brand: Siemens
• Part Number: HQR23B200
• Series: QR Series
• Type: HQR2 Molded Case Circuit Breaker
• Category: Molded Case Circuit Breaker
• Mounting Type: Bolt-On
• Frame Type: QR Frame Standard 40°C Breaker
• Protection Type: Thermal Magnetic
• Trip Unit: Fixed, Non-Interchangeable
• Special Features: No Lugs Installed

Electrical Ratings

• Current Rating: 200A
• Voltage Rating: 240VAC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Interrupting Capacity: 65kA @ 240VAC
• Trip Functions: LI – Long-Time and Instantaneous

Construction

• Low-voltage molded case design
• QR frame construction (40°C standard)
• Bolt-on mounting configuration
• Thermal-magnetic trip mechanism
• Supplied without lugs installed
• Heavy-duty industrial-grade housing
• Designed for high fault-current applications

Functions

• Overload protection
• Short-circuit protection
• Long-time delay protection
• Instantaneous fault protection
• Circuit switching and isolation

Dimensions

• Height: 4.2 in
• Width: 4.7 in
• Depth: 7.3 in
• Weight: 4.51 lbs

Standards

• CSA Approved

Applications

• Commercial electrical distribution systems
• Industrial power distribution panels
• Switchboards and panelboards
• Three-phase branch circuit protection
• Heavy equipment and feeder protection
