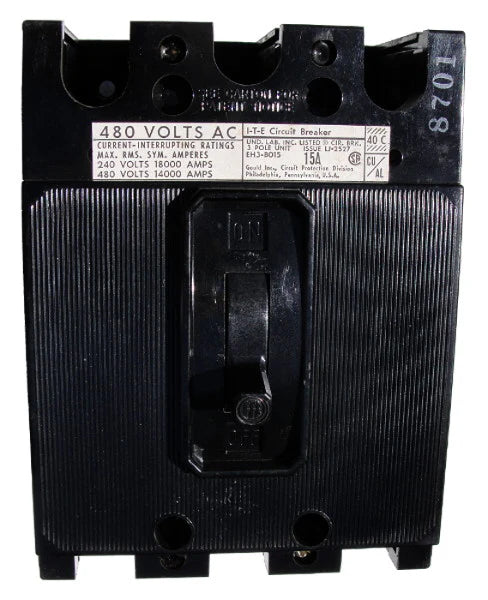

Siemens / ITE EH3B015 15A 3 Pole MCCB – Bolt On – 480V

The Siemens / ITE EH3B015 is a compact molded case circuit breaker engineered for dependable circuit protection in commercial and industrial electrical systems. Equipped with a 15A thermal magnetic non-interchangeable trip unit, it provides reliable overload and short circuit protection for low-current applications. Built on the EH frame platform, this breaker offers durable construction, consistent electrical performance, and secure bolt-on installation for efficient power distribution system integration.

Product Specification:

• Manufacturer: Siemens / ITE
• Model: EH3B015
• Frame Type: EH Frame
• Type: Molded Case Circuit Breaker (MCCB)
• Amperage: 15A at 40°C
• Poles: 3 Pole
• Connection Type: Bolt On
• Trip Unit: Thermal Magnetic Non-Interchangeable
• Standard Lug Type: Load End Only
• Warranty: 1 Year

Technical Specification:

• Interrupting Capacity: 65 kA @ 240VAC
• Interrupting Capacity: 18 kA @ 480VAC
• Frequency: 50/60 Hz
• Frame Style: EH
• Operating Mechanism: Fixed MCCB with non-interchangeable trip unit
• Terminal Configuration: Load End Only

Voltage and Ratings:

• Rated Voltage: 240VAC / 480VAC
• Maximum Voltage: 480VAC
• Rated Current: 15A
• Interrupting Ratings: 65kA @ 240VAC and 18kA @ 480VAC

Product Data:

• Product Type: Molded Case Circuit Breaker
• Application: Commercial and Industrial Electrical Protection
• Mounting Type: Bolt On
• Configuration: 3 Pole System
• Construction: Compact EH frame design
• Terminal Design: Load End Only configuration
• Accessories: Compatible with selected Siemens / ITE breaker accessories
• Warranty Support: 1-year in-house warranty for new and certified reconditioned units

Important Note:
This circuit breaker must be installed by a qualified electrician following applicable electrical codes and safety standards. Incorrect installation or improper system application may result in equipment failure or safety hazards. Always confirm voltage rating, current capacity, and interrupting rating before installation and operation.
