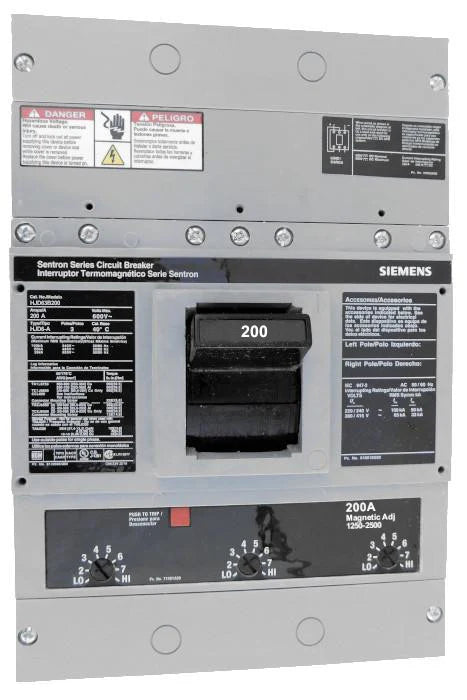

Siemens / ITE HHJD63B200 200A 3 Pole MCCB – Bolt On – 600V

The Siemens / ITE HHJD63B200 is a high interrupting capacity molded case circuit breaker designed for critical power protection in demanding industrial and commercial environments. Equipped with a 200A thermal magnetic interchangeable trip unit, this breaker provides precise and dependable protection against overloads and short circuits. Built on the HHJD (J Frame) platform, it offers exceptional fault-clearing performance with very high interrupting ratings, making it ideal for applications requiring enhanced safety and reliability. Its bolt-on mounting ensures secure installation, while compatibility with multiple voltage systems increases operational flexibility.

Product Specification:

• Manufacturer: Siemens / ITE
• Model: HHJD63B200
• Frame Type: J Frame (HHJD)
• Type: Molded Case Circuit Breaker (MCCB)
• Amperage: 200A at 40°C
• Poles: 3 Pole
• Connection Type: Bolt On
• Trip Unit: Thermal Magnetic Interchangeable
• Standard Lug Type: Line and Load Standard
• Warranty: 1 Year

Technical Specification:

• Interrupting Capacity: 200 kA @ 240V AC
• Interrupting Capacity: 100 kA @ 480V AC
• Interrupting Capacity: 60 kA @ 600V AC
• Interrupting Capacity: 30 kA @ 250V DC
• Trip Setting Range: 1250–2500
• Frequency: 50/60 Hz
• Frame Style: HHJD (J Frame High Interrupting)
• Operating Mechanism: Fixed MCCB with interchangeable trip unit
• Terminal Type: Line and Load End Terminals

Voltage and Ratings:

• Rated Voltage: 240V AC / 480V AC / 600V AC
• DC Rating: 250V DC
• Maximum Voltage: 600V AC
• Rated Current: 200A
• Interrupting Ratings: 200kA / 100kA / 60kA (AC) and 30kA (DC)

Product Data:

• Product Type: High Interrupting Molded Case Circuit Breaker
• Application: Industrial and Heavy-Duty Electrical Protection
• Mounting Type: Bolt On
• Configuration: 3 Pole System
• Construction: Heavy-duty high-performance J Frame design
• Accessories: Compatible with configurable accessories (installed on request)
• Terminal Design: Standard Line and Load Terminals
• Warranty Support: 1-year in-house warranty for new and certified reconditioned units

Important Note:
This circuit breaker should be installed by a qualified electrician in compliance with applicable electrical standards and system requirements. Incorrect installation or improper selection may lead to system failure or safety hazards. Always verify voltage ratings, current capacity, and interrupting ratings before installation and operation.
