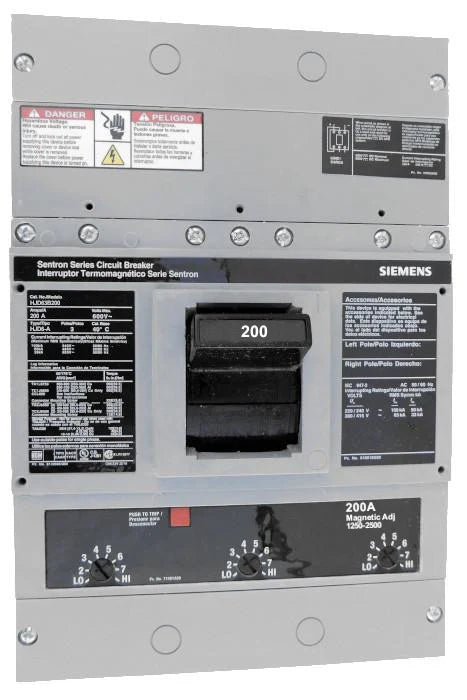

Siemens / ITE HJD63B200 200A 3 Pole MCCB – Bolt On – 600V

The Siemens / ITE HJD63B200 is a high interrupting capacity molded case circuit breaker designed for dependable protection in industrial and commercial electrical systems. Featuring a 200A thermal magnetic interchangeable trip unit, it delivers accurate protection against overload and short circuit conditions. Built on the robust HJD (J Frame) platform, this breaker provides strong fault-clearing performance with reliable operation under demanding loads. Its bolt-on mounting design ensures secure installation, while its compatibility with multiple AC and DC voltage systems enhances flexibility in various applications.

Product Specification:

• Manufacturer: Siemens / ITE
• Model: HJD63B200
• Frame Type: J Frame (HJD)
• Type: Molded Case Circuit Breaker (MCCB)
• Amperage: 200A at 40°C
• Poles: 3 Pole
• Connection Type: Bolt On
• Trip Unit: Thermal Magnetic Interchangeable
• Standard Lug Type: Line and Load Standard
• Warranty: 1 Year

Technical Specification:

• Interrupting Capacity: 100 kA @ 240V AC
• Interrupting Capacity: 65 kA @ 480V AC
• Interrupting Capacity: 35 kA @ 600V AC
• Interrupting Capacity: 30 kA @ 250V DC
• Trip Setting Range: 1250–2500
• Frequency: 50/60 Hz
• Frame Style: HJD (J Frame High Interrupting)
• Operating Mechanism: Fixed MCCB with interchangeable trip unit
• Terminal Type: Line and Load End Terminals

Voltage and Ratings:

• Rated Voltage: 240V AC / 480V AC / 600V AC
• DC Rating: 250V DC
• Maximum Voltage: 600V AC
• Rated Current: 200A
• Interrupting Ratings: 100kA / 65kA / 35kA (AC) and 30kA (DC)

Product Data:

• Product Type: High Interrupting Molded Case Circuit Breaker
• Application: Industrial and Commercial Electrical Protection
• Mounting Type: Bolt On
• Configuration: 3 Pole System
• Construction: Heavy-duty J Frame design
• Accessories: Compatible with configurable accessories (installation support available)
• Terminal Design: Standard Line and Load Terminals
• Warranty Support: 1-year in-house warranty for new and certified reconditioned units

Important Note:
This circuit breaker must be installed by a qualified electrician in accordance with electrical standards and system requirements. Incorrect installation or improper selection may result in equipment damage or safety hazards. Always verify voltage, current rating, and interrupting capacity before use.
