Siemens

Siemens / ITE MD63B500 500A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC

In stock
SKU: MD63B500-NS
$13,699.00
Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

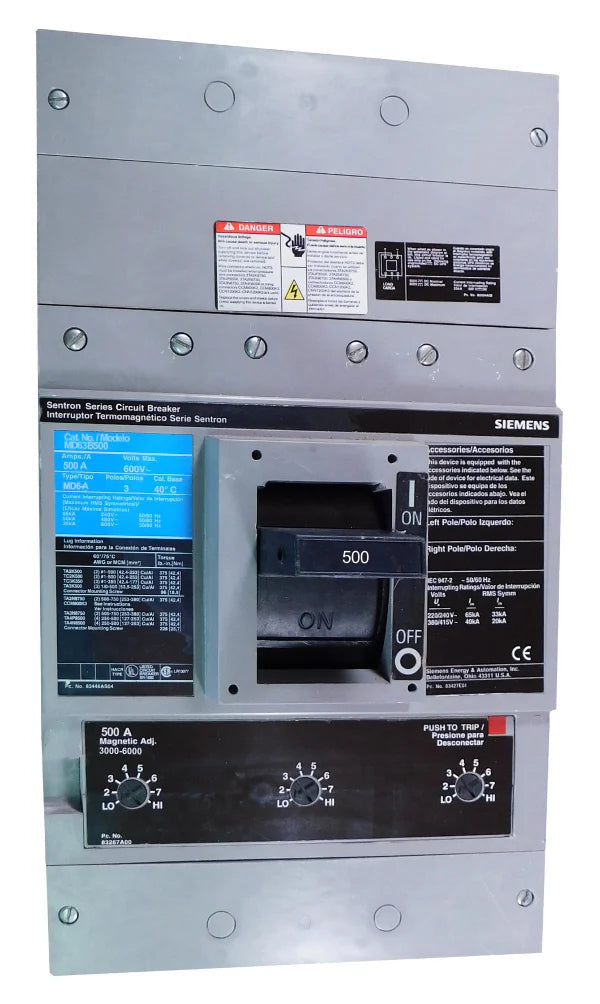

The Siemens / ITE MD63B500 is a reliable molded case circuit breaker designed for industrial and commercial electrical distribution systems requiring efficient protection. Built on the MD frame platform, it features a thermal magnetic interchangeable trip unit that ensures accurate and dependable response to overload and short circuit conditions. With a 500 ampere rating, 3-pole configuration, and bolt-on mounting, this breaker is ideal for switchgear, feeder circuits, and medium-capacity power distribution applications operating across 240V, 480V, and 600V AC systems.

Product Specifications

  • Brand: Siemens / ITE
  • Model: MD63B500
  • Amperage: 500 Ampere
  • Number of Poles: 3 Pole
  • Breaker Type: Molded Case Circuit Breaker
  • Mount Type: Bolt On
  • Frame Style: MD Frame
  • Trip Unit Type: Thermal Magnetic Interchangeable Trip Unit

Technical Specifications

  • Operating Temperature: 40 Degree Celsius
  • Frequency: 50/60Hz
  • Connection Type: Bolt On
  • Terminal Type: Line and Load End Terminals Standard
  • Lug Type: Standard Line and Load
  • Trip Setting Range: 3000-6000
  • Protection Type: Overload and Short Circuit Protection
  • Application: Industrial Power Distribution, Switchgear, Feeder Circuits, Commercial Electrical Systems

Voltage and Ratings

  • Rated Voltage: Up to 600VAC
  • Operating Voltages: 240V AC, 480V AC, 600V AC
  • Interrupting Rating @ 240V AC: 65 Kiloampere
  • Interrupting Rating @ 480V AC: 50 Kiloampere
  • Interrupting Rating @ 600V AC: 25 Kiloampere

Product Data

  • Manufacturer: Siemens / ITE
  • Condition: New / Reconditioned (Depending Supply)
  • Warranty: One Year
  • Availability: Subject to Stock
  • Frame Type: MD
  • SKU / UPC: Available on Request

Important Note

Product image may represent a base model and is provided for identification purposes only. Accessories ordered with the breaker may be installed prior to shipment at no additional cost depending on supplier policy. Always verify amperage rating, trip setting range, voltage compatibility, interrupting ratings, and terminal configuration before purchase or installation.
