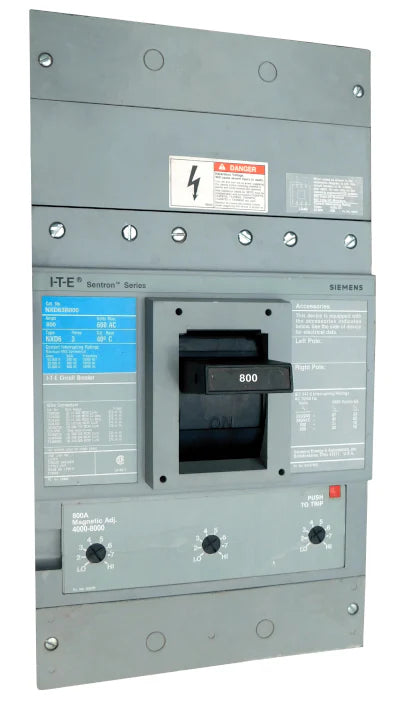

Siemens / ITE NXD63B800 800A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC

The Siemens / ITE NXD63B800 is a heavy-duty molded case circuit breaker designed for reliable circuit protection in industrial and commercial power distribution systems. Built on the ND frame platform, it features a thermal magnetic non-interchangeable trip unit that delivers consistent protection against overload and short circuit conditions. With an 800 ampere rating, 3-pole configuration, and bolt-on mounting, this breaker is ideal for switchgear installations and feeder circuits operating across 240V, 480V, and 600V AC systems. This model is supplied without terminals, allowing flexible configuration based on application requirements.

Product Specifications

• Brand: Siemens / ITE
• Model: NXD63B800
• Amperage: 800 Ampere
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker
• Mount Type: Bolt On
• Frame Style: ND Frame
• Trip Unit Type: Thermal Magnetic Non-Interchangeable Trip Unit

Technical Specifications

• Operating Temperature: 40 Degree Celsius
• Frequency: 50/60Hz
• Connection Type: Bolt On
• Terminal Type: Without Terminals
• Lug Type: No Lugs Included
• Trip Setting Range: 4000-8000
• Protection Type: Overload and Short Circuit Protection
• Application: Industrial Power Distribution, Switchgear, Heavy Feeders, Commercial Electrical Systems

Voltage and Ratings

• Rated Voltage: Up to 600VAC
• Operating Voltages: 240V AC, 480V AC, 600V AC
• Interrupting Rating @ 240V AC: 65 Kiloampere
• Interrupting Rating @ 480V AC: 50 Kiloampere
• Interrupting Rating @ 600V AC: 25 Kiloampere

Product Data

• Manufacturer: Siemens / ITE
• Condition: New / Reconditioned (Depending Supply)
• Warranty: One Year
• Availability: Subject to Stock
• Frame Type: ND
• SKU / UPC: Available on Request

Important Note

This breaker is supplied without terminals (lugs), which must be ordered separately based on installation requirements. Product image may represent a base model and is provided for identification purposes only. Accessories ordered with the breaker may be installed prior to shipment at no additional cost depending on supplier policy. Always verify amperage rating, trip settings, voltage compatibility, interrupting ratings, and terminal requirements before purchase or installation.
