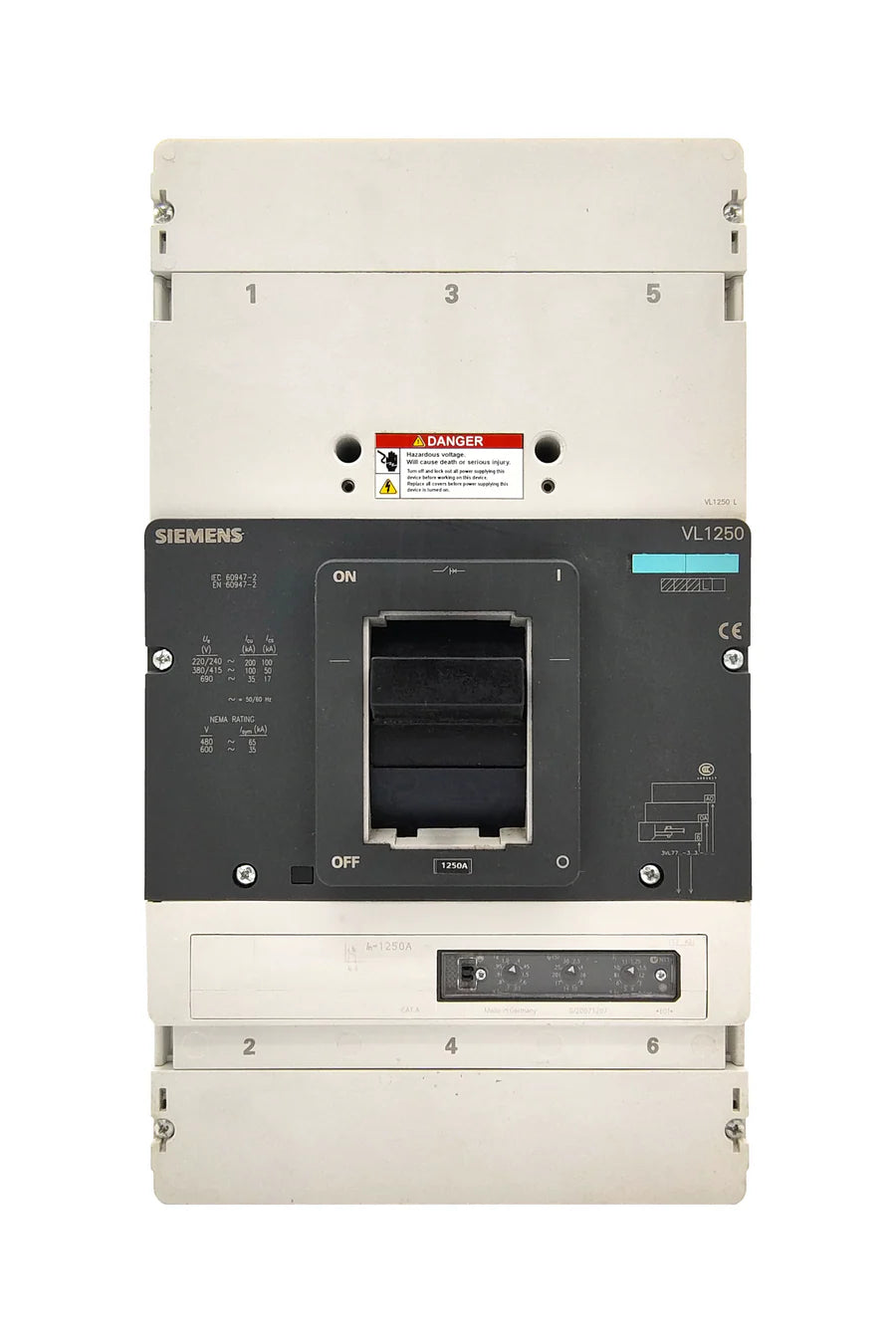

Siemens / ITE VL1250 3V7712-3SE36-0AA0 1250A 3 Pole Molded Case Circuit Breaker – Bolt On – 600VAC

The Siemens / ITE VL1250 3V7712-3SE36-0AA0 is a high-capacity molded case circuit breaker from the Sentron series, engineered for advanced protection in industrial and commercial power distribution systems. Built on the N frame platform, this breaker is designed to handle demanding electrical loads with a 1250 ampere rating and 3-pole configuration. It delivers reliable short circuit protection with high interrupting capacity and is suitable for switchgear systems and large feeder applications operating at 480V and 600V AC. This unit is supplied without terminals, allowing customization based on installation requirements.

Product Specifications

• Brand: Siemens / ITE
• Model: VL1250 3V7712-3SE36-0AA0
• Amperage: 1250 Ampere
• Number of Poles: 3 Pole
• Breaker Type: Molded Case Circuit Breaker
• Mount Type: Bolt On
• Series: Sentron Series
• Frame Style: N Frame

Technical Specifications

• Connection Type: Bolt On
• Terminal Type: Without Terminals
• Lug Type: No Lugs Included
• Trip Setting Range: 1,562.5 – 13,750
• Protection Type: Overload and Short Circuit Protection
• Application: Industrial Power Distribution, Switchgear, Main Distribution Panels, Heavy Feeders

Voltage and Ratings

• Rated Voltage: Up to 600VAC
• Operating Voltages: 480V AC, 600V AC
• Interrupting Rating @ 480V AC: 65 Kiloampere
• Interrupting Rating @ 600V AC: 35 Kiloampere

Product Data

• Manufacturer: Siemens / ITE
• Series: Sentron
• Condition: New / Reconditioned (Depending Supply)
• Warranty: One Year
• Availability: Subject to Stock
• Frame Type: N
• SKU / UPC: Available on Request

Important Note

This breaker is supplied without terminals (lugs), which must be selected separately based on application requirements. Product image may represent a base model and is provided for identification purposes only. Accessories ordered with the breaker can be installed prior to shipment at no additional cost depending on supplier policy. Always verify amperage rating, trip settings, interrupting capacity, voltage compatibility, and terminal requirements before purchase or installation.
