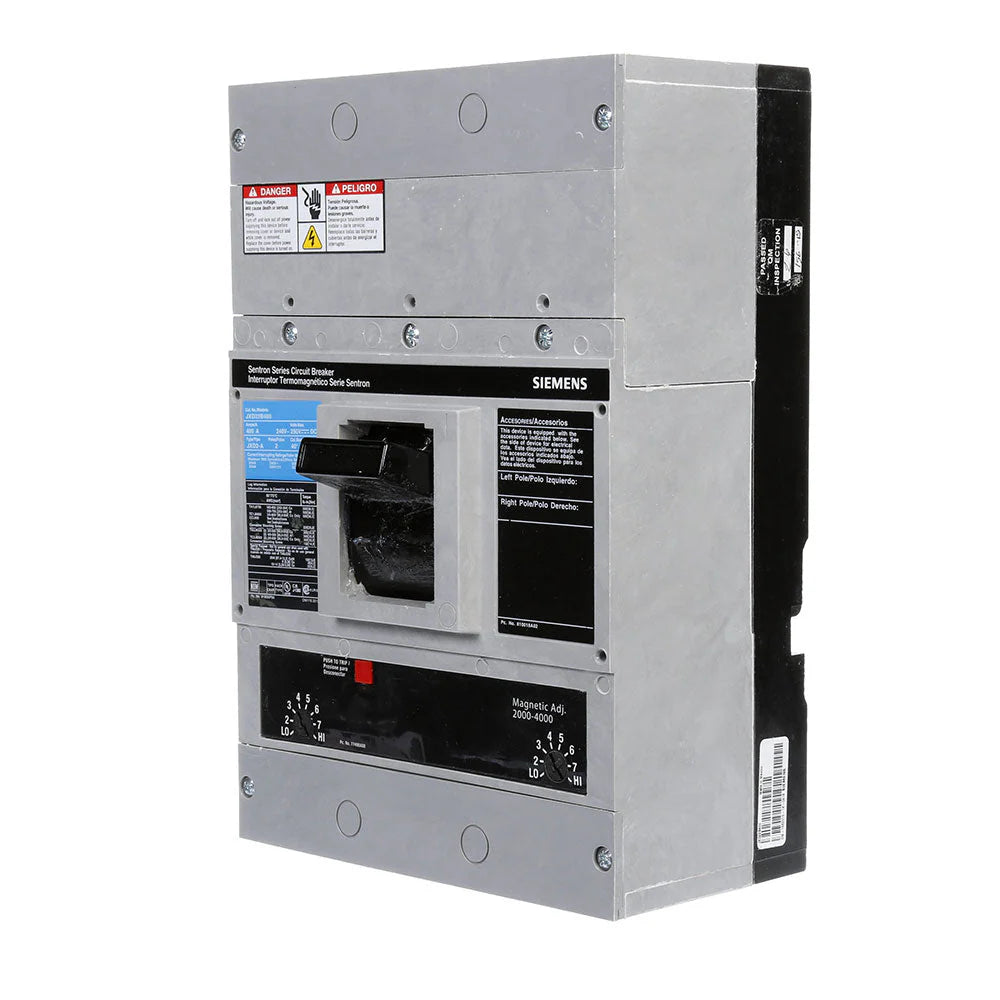

Siemens JXD22B350 Circuit Breaker – Sentron Series – 350A – 2 Pole – 240VAC – Thermal Magnetic – Bolt-On

The Siemens JXD22B350 is a Sentron Series molded case circuit breaker designed to provide dependable overload and short-circuit protection for commercial, industrial, and power distribution applications. Rated at 350A and 240VAC, this 2-pole breaker is engineered for single-phase electrical systems requiring high-capacity protection and reliable operation under demanding load conditions.

Featuring a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection functions, the JXD22B350 delivers effective protection against sustained overloads and short-circuit faults. Its 65kA interrupting capacity at 240VAC allows it to safely interrupt high fault currents, helping protect electrical equipment and maintain system integrity.

Built on the Siemens JD frame platform and designed for operation in 40°C ambient environments, this breaker incorporates a secure bolt-on mounting configuration and comes complete with a factory-installed non-interchangeable trip unit. Lugs are not included, providing flexibility in selecting the appropriate terminal connections for specific installation requirements.

Specifications

• Brand: Siemens / ITE
• Part Number: JXD22B350
• Series: Sentron Series
• Type: JXD Molded Case Circuit Breaker
• Frame Type: JD Frame
• Category: Molded Case Circuit Breaker
• Mounting Type: Bolt-On
• Protection Type: Thermal Magnetic
• Trip Unit: Non-Interchangeable
• Ambient Rating: 40°C
• Special Features: Lugs Not Included

Electrical Ratings

• Current Rating: 350A
• Voltage Rating: 240VAC
• Number of Poles: 2 Pole
• Phase: 1 Phase
• Interrupting Capacity: 65kA @ 240VAC
• Trip Functions: LI – Long-Time and Instantaneous

Construction

• Heavy-duty molded case construction
• JD frame design
• Bolt-on mounting configuration
• Thermal-magnetic trip mechanism
• Factory-installed non-interchangeable trip unit
• Field-selectable lug configuration
• Rugged industrial-grade housing
• Designed for demanding electrical distribution applications

Functions

• Overload protection
• Short-circuit protection
• Long-time delay protection
• Instantaneous fault protection
• Circuit switching and isolation

Dimensions

• Height: 11 in
• Width: 7.5 in
• Depth: 4 in
• Weight: 15.2 lbs

Standards

• CSA Approved

Applications

• Commercial electrical distribution systems
• Industrial power distribution equipment
• Panelboards and switchboards
• Equipment feeder protection
• Motor and machinery protection
• High fault-current installations
• Single-phase power distribution systems
