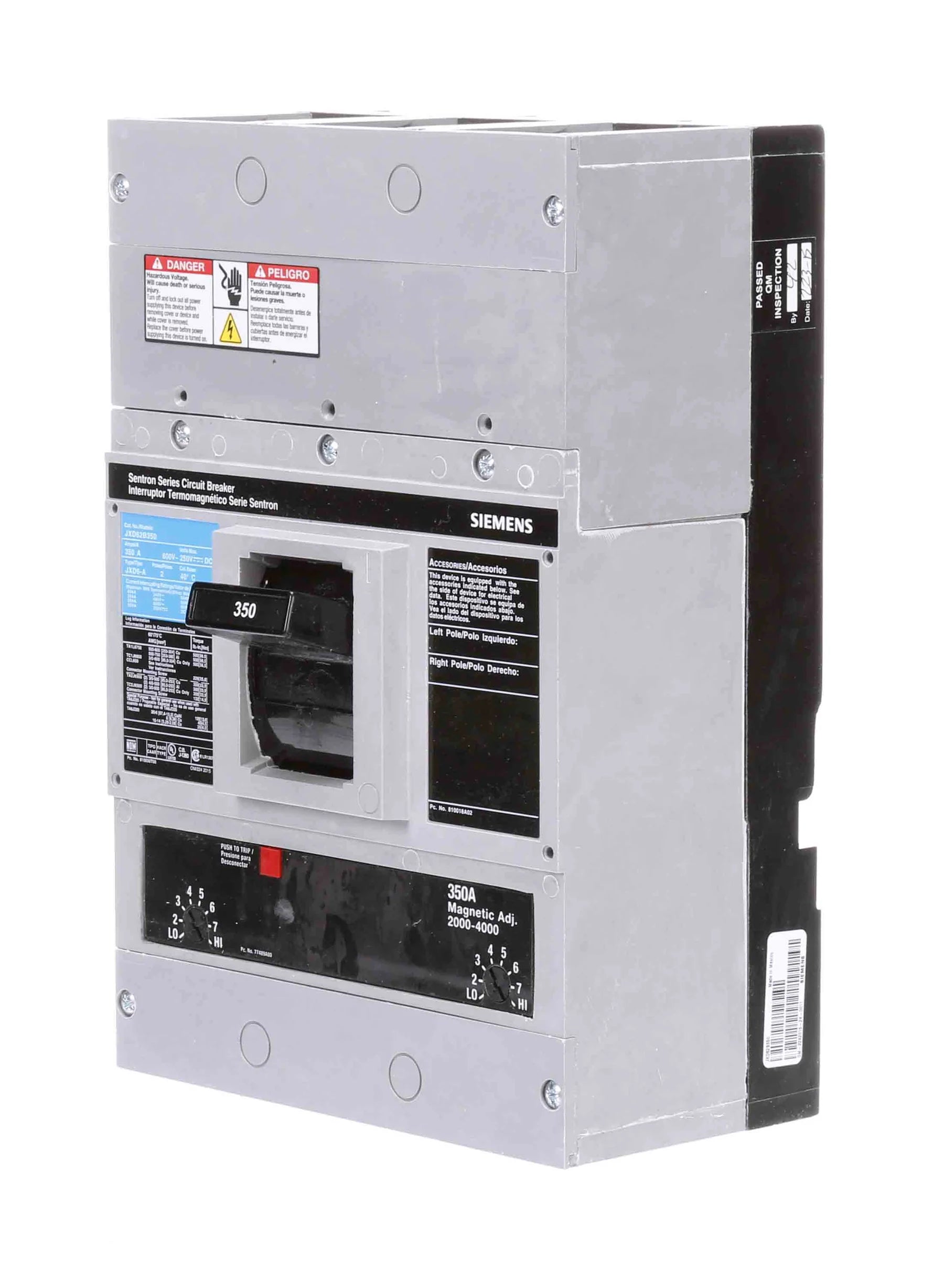

Siemens JXD62B350 Circuit Breaker – Sentron Series – 350A – 2 Pole – 600VAC – Thermal Magnetic – JD Frame

The Siemens JXD62B350 is a Sentron Series low-voltage molded case circuit breaker designed to provide dependable overload and short-circuit protection for commercial, industrial, and power distribution applications. Rated at 350A and 600VAC, this 2-pole breaker is engineered for single-phase electrical systems requiring high-capacity protection and reliable performance in demanding environments.

Equipped with a thermal-magnetic trip unit featuring Long-Time and Instantaneous (LI) protection functions, the JXD62B350 delivers effective protection against overload conditions and high-level fault currents. Built on the Siemens JD frame platform, this standard 40°C breaker incorporates a non-interchangeable trip unit and standard breaking capacity to ensure consistent operation and equipment protection.

Designed to meet UL 489 and IEC 60947-2 standards, the breaker is supplied without lugs installed, allowing flexibility in selecting compatible terminal connections based on application requirements. Its rugged construction makes it suitable for use in commercial facilities, industrial plants, and power distribution systems operating up to 600VAC.

Specifications

• Brand: Siemens Breakers
• Part Number: JXD62B350
• Series: Sentron Series
• Type: JD Frame Molded Case Circuit Breaker
• Category: Molded Case Circuit Breaker
• Connection Type: Bolt-On
• Frame Type: JD Frame
• Protection Type: Thermal Magnetic
• Trip Unit: Non-Interchangeable
• Ambient Rating: 40°C
• Special Features: No Lugs Installed

Electrical Ratings

• Current Rating: 350A
• Voltage Rating: 600VAC
• Number of Poles: 2 Pole
• Phase: 1 Phase
• Interrupting Capacity: 35kA @ 480VAC
• Interrupting Capacity: 25kA @ 600VAC
• Trip Functions: LI – Long-Time and Instantaneous

Construction

• Heavy-duty molded case construction
• JD frame design
• Thermal-magnetic trip mechanism
• Non-interchangeable trip unit
• Standard interrupting capacity configuration
• Supplied without lugs installed
• Durable industrial-grade housing
• Designed for commercial and industrial power distribution systems

Functions

• Overload protection
• Short-circuit protection
• Long-time delay protection
• Instantaneous fault protection
• Circuit switching and isolation

Dimensions

• Width: 7.5 in
• Height: 11 in
• Depth: 4 in
• Weight: 15.2 lbs

Standards

• UL 489
• IEC 60947-2
• CSA Approved

Applications

• Commercial electrical distribution systems
• Industrial power distribution equipment
• Switchboards and panelboards
• Feeder circuit protection
• Equipment and machinery protection
• Single-phase power distribution systems
• High-voltage electrical installations
