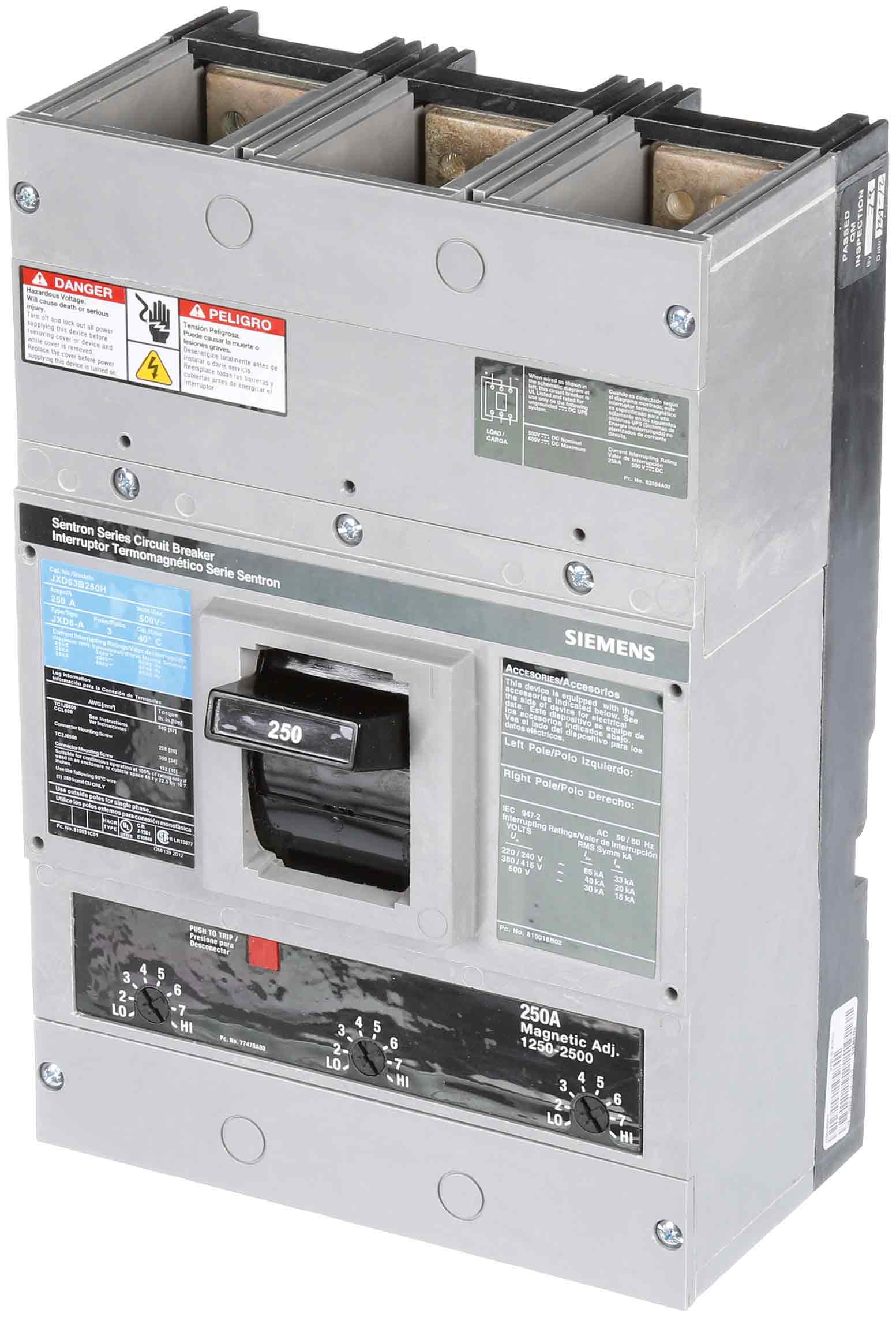

Siemens JXD63B250H Circuit Breaker – Sentron Series – 250A – 3 Pole – 600VAC – Thermal Magnetic – JD Frame – 100% Rated

The Siemens JXD63B250H is a Sentron Series low-voltage molded case circuit breaker designed to provide reliable overload and short-circuit protection for commercial, industrial, and power distribution applications. Rated at 250A and 600VAC, this 3-pole breaker is engineered for three-phase electrical systems requiring dependable protection and continuous high-load performance.

Equipped with a thermal-magnetic trip unit featuring Long-Time and Instantaneous (LI) protection functions, the JXD63B250H delivers effective protection against overload conditions and high-level fault currents. Built on the Siemens JD frame platform, this standard 40°C breaker incorporates a non-interchangeable trip unit and standard interrupting capacity for reliable operation in demanding electrical environments.

A key feature of this model is its 100% rated design, allowing it to carry its full continuous current rating when installed in appropriately rated equipment. The breaker meets UL 489 and IEC 60947-2 standards and is supplied without lugs installed, providing flexibility for application-specific terminal selection.

Specifications

• Brand: Siemens Breakers
• Part Number: JXD63B250H
• Series: Sentron Series
• Type: JD Frame Molded Case Circuit Breaker
• Category: Molded Case Circuit Breaker
• Connection Type: Bolt-On
• Frame Type: JD Frame
• Protection Type: Thermal Magnetic
• Trip Unit: Non-Interchangeable
• Ambient Rating: 40°C
• Special Features: 100% Rated Breaker, No Lugs Installed

Electrical Ratings

• Current Rating: 250A
• Voltage Rating: 600VAC
• Number of Poles: 3 Pole
• Phase: 3 Phase
• Interrupting Capacity: 35kA @ 480VAC
• Interrupting Capacity: 25kA @ 600VAC
• Trip Functions: LI – Long-Time and Instantaneous

Construction

• Heavy-duty molded case construction
• JD frame design
• Thermal-magnetic trip mechanism
• Non-interchangeable trip unit
• Standard interrupting capacity configuration
• 100% rated construction
• Supplied without lugs installed
• Durable industrial-grade housing

Functions

• Overload protection
• Short-circuit protection
• Long-time delay protection
• Instantaneous fault protection
• Circuit switching and isolation

Dimensions

• Width: 7.5 in
• Height: 11 in
• Depth: 4 in
• Weight: 17 lbs

Standards

• UL 489
• IEC 60947-2
• CSA Approved

Applications

• Commercial electrical distribution systems
• Industrial power distribution equipment
• Switchboards and panelboards
• Three-phase feeder protection
• Continuous-duty electrical systems
• Equipment and machinery protection
• Manufacturing and processing facilities
• High-voltage power distribution installations
