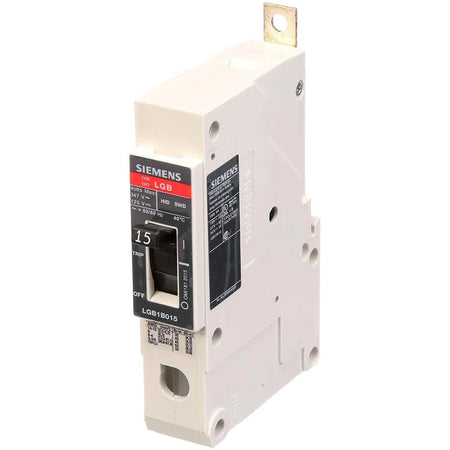

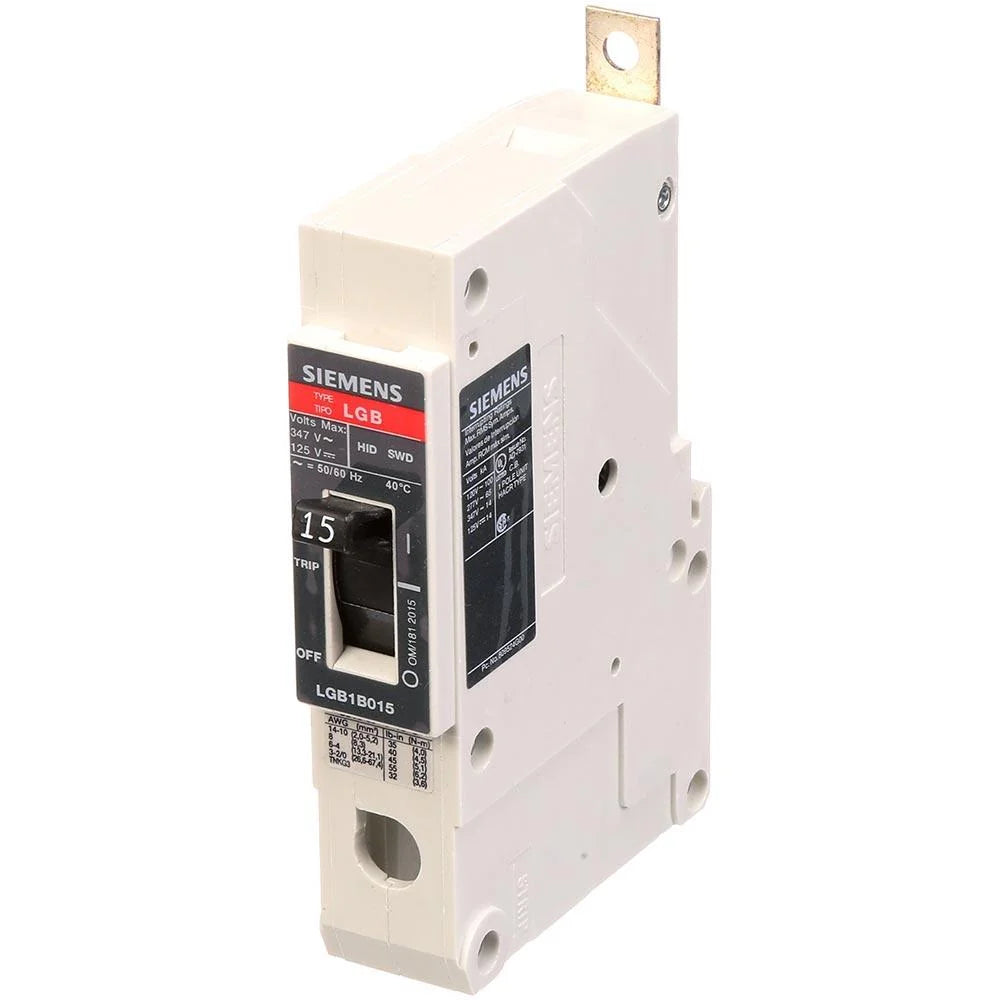

Siemens LGB1B015B 15A 1-Pole 480V LGB Molded Case Circuit Breaker

Product Description

The Siemens LGB1B015B is a 15 Amp, 1-pole molded case circuit breaker from the Siemens LGB / GB frame family. Designed for panelboard-mounted applications, this breaker provides thermal-magnetic overload and short-circuit protection with a high interrupting capacity.

The LGB1B015B features a busbar line-side connection and an included load-side lug.

Key Features

• Siemens / ITE
• LGB Series
• GB Frame
• 15 Amp
• 1 Pole
• 480VAC Maximum Rated Voltage
• Thermal-Magnetic Trip
• Long-Time & Instantaneous Protection
• Panelboard Mounted
• Busbar Line-Side Connection
• Load-Side Lug Included
• High Interrupting Capacity
• Suitable for Reverse Feed Applications

Technical Specifications

Manufacturer: Siemens
Catalog Number: LGB1B015B
Series: LGB
Frame: GB
Amperage: 15A
Poles: 1
Maximum Voltage: 480VAC
Trip Type: Thermal-Magnetic
Trip Functions: Long-Time & Instantaneous (LI)
Mounting: Panel Mounted / Bolt-On
Line-Side Connection: Busbar
Load-Side Connection: Lug
Load-Side Lug: Included

Interrupting Ratings

240VAC: 100kAIC
480VAC: 65kAIC

Dimensions

Height: Approx. 5.0 in.
Width: Approx. 1.0 in.
Depth: Approx. 2.9 in.

Product Data

Brand: Siemens
Manufacturer: Siemens
MPN: LGB1B015B
UPC: 887621219918
GTIN: 00887621219918
